The DS1/DS1T/SDS1/SDS1T G models provide Serial to Ethernet connectivity.
Leading edge features include; universal software selectable EIA 232/422/485
interface, next generation IP support (IPV6) and 10/100/1000 Ethernet speeds.
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation.
Complete details can be found in the following guides at
www.perle.com/downloads.
•
IOLAN User's Guide
•
IOLAN Command Line Interface Reference Guide
•
IOLAN DS1 G/DS1T G/SDS1 G/SDS1T G Hardware Installation Guide
What's in the box?

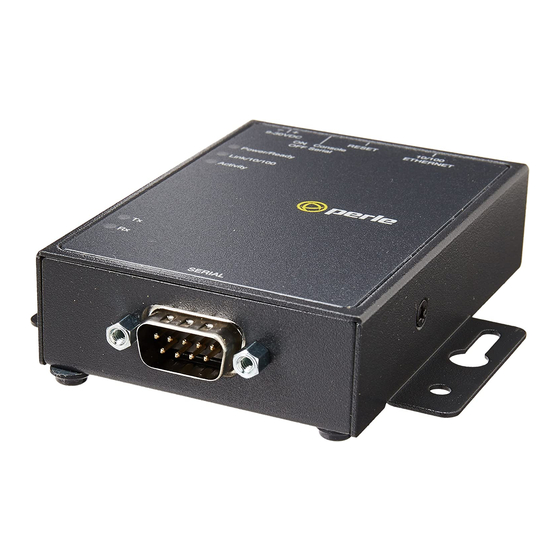

The IOLAN
• DS1-GR - 1 port with one RJ45 serial port
• DS1T-GR - 1 port with Extended Temperature RJ45 serial port
• DS1-G9 - 1 port with one DB9M serial port
• DS1T-G9 - 1 port (Extended Temperature) with one DB9M serial port
• DS1-G25F - 1 port with one DB25F serial port
• SDS1-GR - 1 port with one RJ45 serial port
• SDS1-G9 - 1 port with one DB9M serial port
• SDS1T-G9 - 1 port (Extended Temperature) with one DB9M serial port
• SDS1-G25F - 1 port with a DB25F serial port
External power supply
A Quick Start Guide (this document)
RJ45-DB9 adapter (RJ45 models only)
Power adapter, strain relief strap and rubber feet
Wall mount brackets
IOLAN DS1 G/DS1T G/SDS1 G/SDS1T G Quick Start Guide- P/N 5500417-10 (Rev B)
IOLAN DS1 G/DS1T G
SDS1G/SDS1T G
Quick Start Guide
