Summary of Contents for Perle IOLAN TG2
- Page 1 IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide Updated: September 2019 Version A.1.09.01.2019 www.perle.com Document Part#:5500420-10(Rev. C)
- Page 2 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product. Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
-
Page 3: Table Of Contents
IOLAN TG2/SDG2 (Side View with Barrel connector) ........ -
Page 4: Hardware
DG2/SDG2/SDG2 TX. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN DG2/SDG2/ SDG2 TX. Information to configure your Perle IOLAN SDS can be found in the IOLAN User’s Guide. Document Conventions This document contains the following conventions: Most text is presented in the typeface used in this paragraph. -
Page 5: Overview

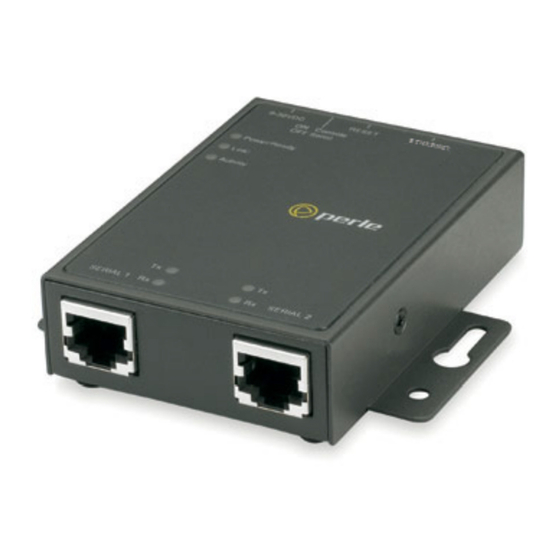

SDG2 TX - Extended Temperature model with two RJ45 serial ports NOTE: Extended Temperature models can operate in the range of -40 to 74 degrees C. IOLAN TG2/SDG2/SDG2 TX (Top View) The IOLAN TG2 only supports RS-232 on RJ45-10 pin. IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 6: Iolan Tg2/Sdg2 (Side View With Barrel Connector)
“console/serial port” DIP switch. The DIP is set in the fac- tory to serial (up position). Unless you plan to attach a console to the IOLAN, leave the IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 7: Led Indicators
Error condition Link 10/100/1000 State Description Green 1000 Mbps Amber 10 /100 Mbps No LAN connection Activity State Description Green Flashes with activity Amber Flashes with activity No LAN connection IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 8: Installation
Hardware Connecting the Power The IOLAN TG2 and the IOLAN SDG2 models connect to power using the power adapter that came with your IOLAN. If using a SDG2 TX with the Terminal Block connector use the instructions below to connect to power. The Terminal Block cannot be removed from the IOLAN. -
Page 9: Connecting The Serial Ports
IOLAN. Connect the DB-9 end of the converter to the COM port of your PC. 5. Choose Start > Control Panel > Systems or equivalent on the Windows Operating System you are using. IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 10: Connecting Data Ports
2. Once the IOLAN is connected and the link is established, the link LEDs will turn on. These LEDs will indicate whether you have a 10, 100 or 1000 Mbps link to your hub/ switch. See. (LED Indicators) for more details. IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... - Page 11 Ethernet Connector - 8-pin RJ-45 IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide...
-
Page 12: Operation
“Reset” and hold the reset button between 3 and 10 seconds, the IOLAN will reset the configuration to factory default (either the Perle or custom default configuration). If you hold the reset button greater than 10 seconds, then the IOLAN will reset the configura- tion to the Perle factory default configuration. -
Page 13: Configuring The Iolan
SSH, SNMP or the Web interface. Web Manager The Perle Web Manager is an embedded Web based application that provides an easy to use browser interface for configuring and managing the IOLAN. Once an IP address has been assigned/configured on IOLAN, it can be accessed through any standard desktop web browser. -
Page 14: Appendix A - Technical Specifications
Appendix A - Technical Specifications IOLAN TG2/SDG2/SDG2 TX Port Technical Specifications Power Input 12/24VDC (9-30VDC) Power Supply Options Power via external power 9-30VDC (TG2/SDG2), 2.6 Watts, terminal block connector (SDG2 TX) Power Consumption@24V DC (Watts) 2.6 Watts Power IOLAN over Serial... -
Page 15: Appendix B - Mechanical Drawing
Appendix B - Mechanical Drawing IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 16: Appendix C - Labels (Sample)
Appendix C - Labels (Sample) IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 17: Appendix D - Cabling And Connectors
1. Unplug the IOLAN from the electrical outlet and disconnect everything from the unit. 2. Open the case by unscrewing the two side screws, one on each side, and lifting off the top of the case. IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... - Page 18 Half Duplex set DIP switch 4 to the ON position. 5. Close the IOLAN case by replacing the case lid and the two screws. You can now power the IOLAN with the new settings. IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide...
-
Page 19: Appendix E - Iolan Maintenance
• Keep vent holes clear of debris • If case gets dirty wipe with a dry cloth • Ensure all cables are in good working condition and replace any frayed cables or cables without clips IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide... -
Page 20: Contacting Perle Systems Limited
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. https://www.perle.com/support_services/support_request.shtm Warranty / Registration This product is covered by the Perle IOLAN SDG Warranty. Details can be found at: https://www.perle.com/support_services/warranty.shtml IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide...
