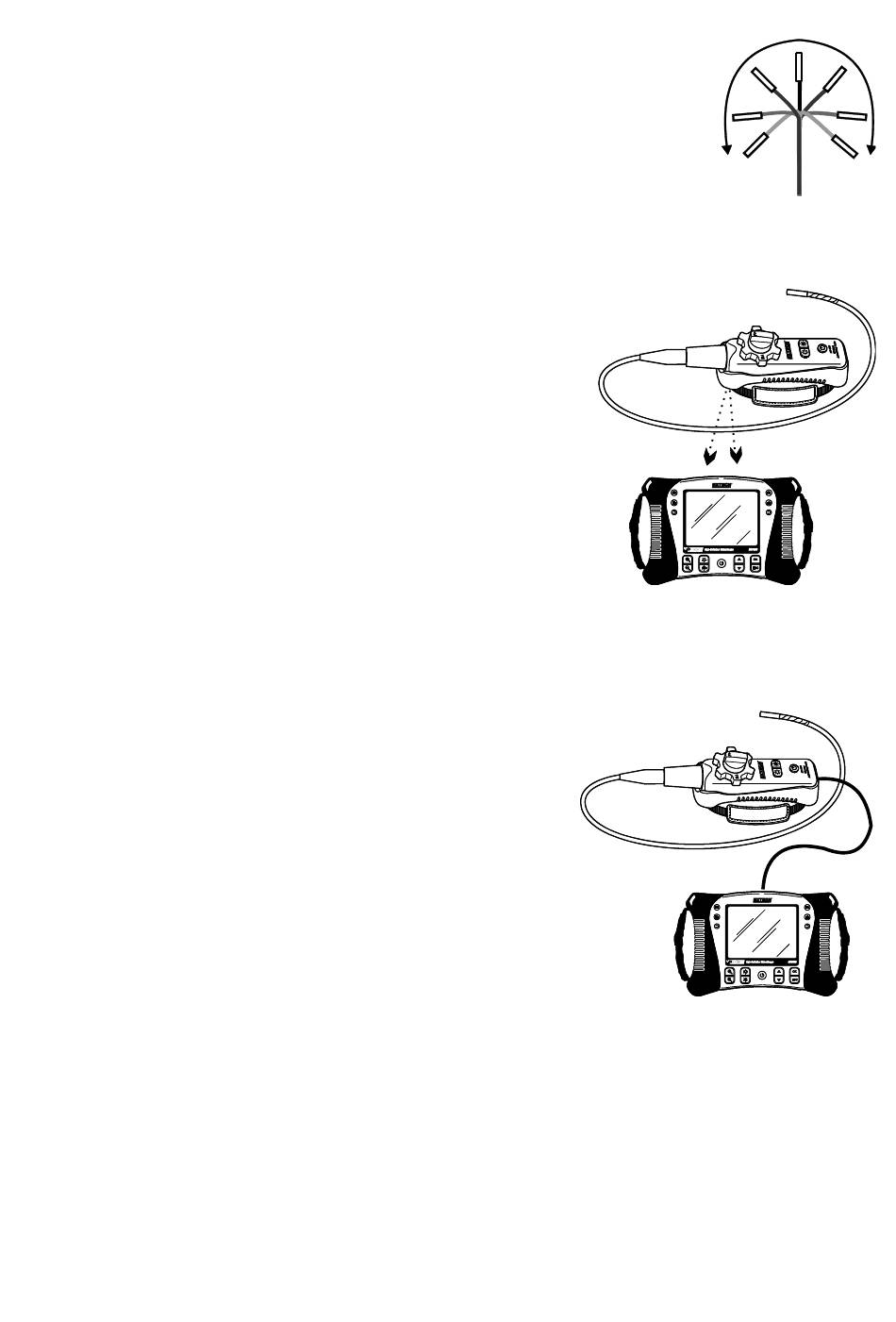

Articulating probe
The articulating probe, with adjustable tip angle, is used for improved
viewing angles and optimum inspection when the probe is inserted into the
inspection location. The articulating probe is available in a direct (wired) or
wireless version.
Wireless version
Note: The battery must be fully charged for wireless operation. A weak battery may result in meter
shut down.
1. Connect the AC adaptor to the transmitter and charge
the battery.
2. Press and hold the Power button for 4 seconds to turn
the monitor on, then select "WIRELESS" under the
INPUT SOURCE selection in the MENU screen.
3. Press and hold the Power button for 4 seconds to turn
the transmitter on. The camera video will be transmitted
to the monitor display.
4. Insert the probe into the area to be inspected.
5. Turn the probe outer knob to adjust the camera tip to
the viewing angle needed.
6. Turn the upper knob to increase or decrease the outer
knob tension
Direct version
1. Connect the probe to the monitor using the supplied
patch cable.
2. Press and hold the Power buttons for 4 seconds to
turn the probe and the monitor on
3. Insert the probe into the area to be inspected.
4. Turn the probe outer knob to adjust the camera tip to
the viewing angle needed.
5. Turn the upper knob to increase or decrease the
outer knob tension
6. In this mode, light intensity is controlled by the
buttons on the monitor, not by the buttons on the
transmitter.
