specified time.

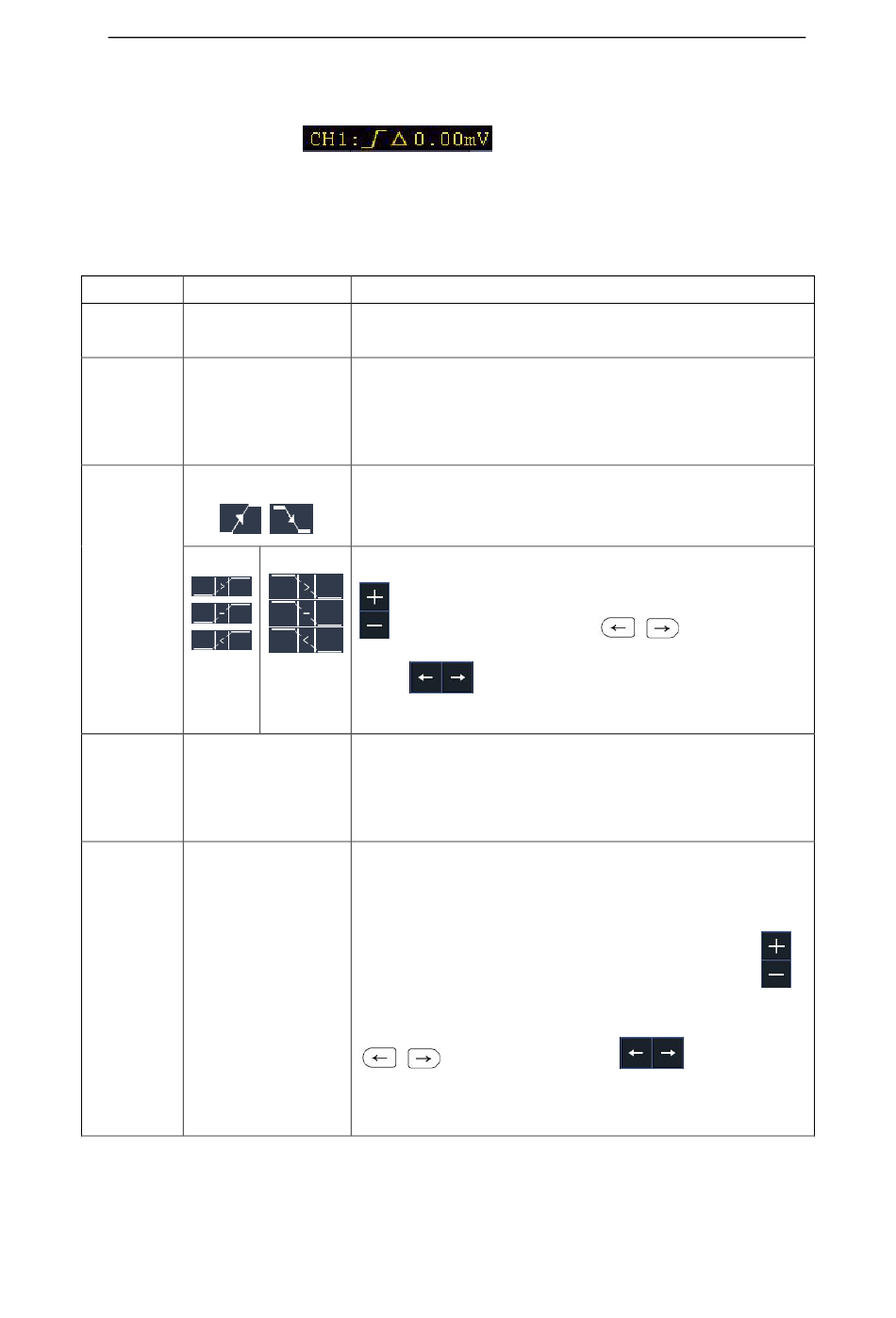

In Slope Trigger mode, the trigger setting information is displayed on bottom right of
the screen, for example,
trigger source is CH1, slope is rising, 0.00mV is the differential between up level and
low level threshold.
Slope trigger menu list:
MENU SETTING
Single
Slope
Mode
CH1
CH2
Source
CH3
CH4
slope
When
High level
Low level
Threshold
Slew rate
&SlewRate
Auto
Normal
Single
Mode
Holdoff
Holdoff
Reset
User Manual
，indicates that trigger type is slope,
INSTRUCTION
Set vertical channel trigger type as slope trigger.
Select CH1 as the trigger source
Select CH2 as the trigger source
Select CH3 as the trigger source
Select CH4 as the trigger source
Slope selecting
Set slope condition; turn the M rotary control or click
to set slope time, press
click to move cursor to choose which digit
to be set.
Adjust M rotary control to set the High level upper
limit.
Adjust M rotary control to set Low level lower limit.
Slew rate = (High level - Low level) / Settings
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform then stop
100 ns – 10 s, turn the M rotary control or click
to set time interval before another trigger occur, press
panel button or click
cursor to choose which digit to be set.
Set Holdoff time as 100 ns
