Control Area - multicomp pro MP720025 Manual

Control Area

8
7
6
1. Function button area: Total 11 buttons
2. Waveform generator controls (optional)
or
DAQ: Multimeter Recorder (see "Multimeter Recorder" on P111)
P/F: Pass/Fail (see "Pass/Fail" on P82)
W.REC: Waveform Record (see "How to Record/Playback Waveforms" on P72)
3. Trigger control area with 2 buttons and 1 rotary control.
The Trigger Level rotary control is to adjust trigger voltage. Other 2 buttons refer to
trigger system setting.
4. Horizontal control area with 1 button and 2 rotary controls.
"HOR" button refer to horizontal system setting menu, "Horizontal Position" rotary
control control trigger position, "Horizontal Scale" control time base.
5. Vertical control area with 5 buttons and 2 rotary controls.
CH1 - CH4 buttons correspond to setting menu in CH1 - CH4. "Math" button
provides access to math waveform functions (+, -, ×, /, FFT, user function, digital
filter). The "Vertical Position" rotary control control the vertical position of current
channel, and the "Scale" rotary control control voltage scale of current channel.
6. Default: Call out the factory settings.
Print: Print an image of what appears on the instrument screen.
Decode(optional): Turn on/off Decode function.
DMM (Multimeter, optional) or Snap (Shortcut button for measurement snapshot)
7. Direction key: Move the cursor of the focused parameter.
8. M rotary control (Multipurpose rotary control): when a
menu, it indicates you can turn the M rotary control to select the menu or set the value.
You can push it to close the menu on the left and right.
User Manual
5

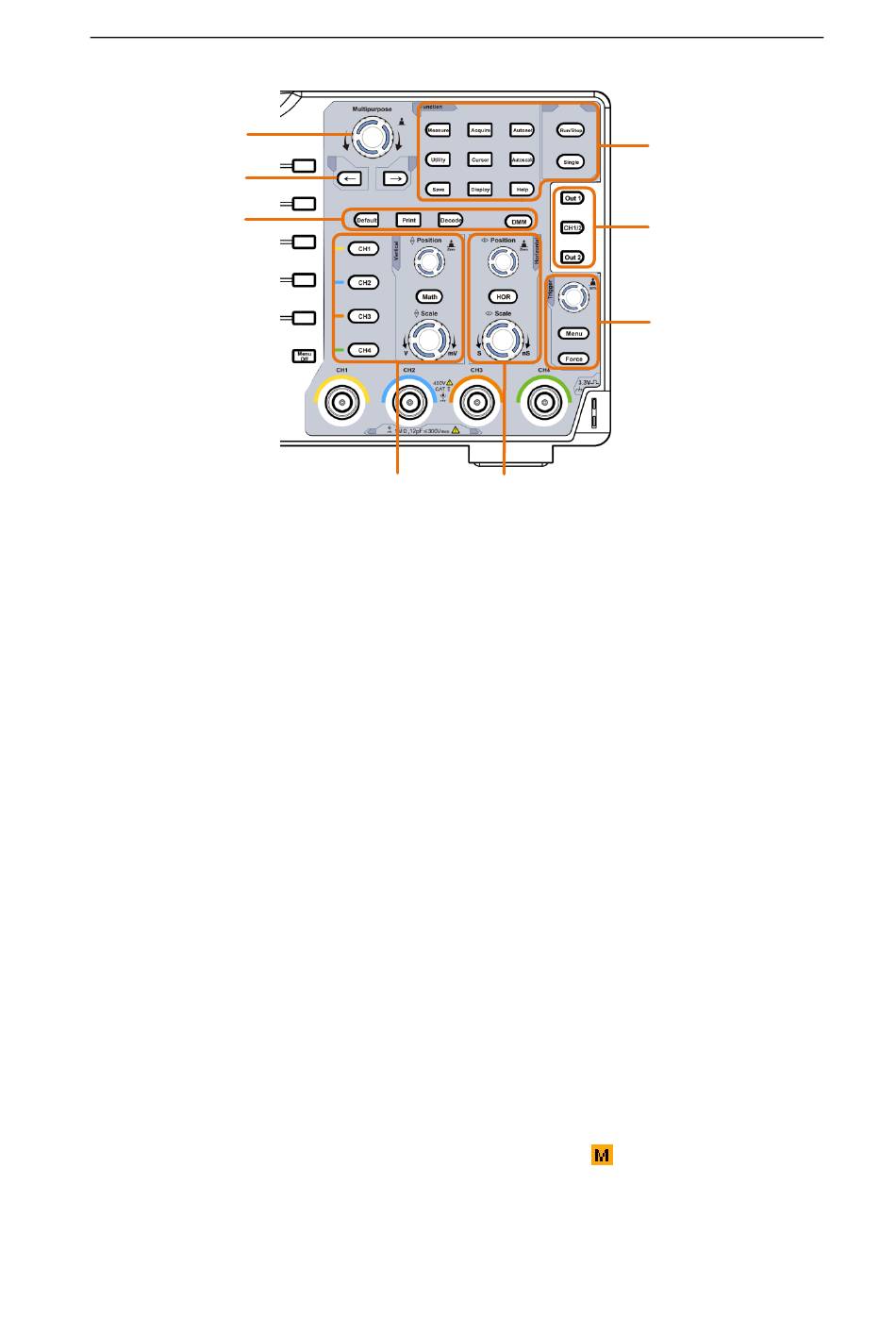

Figure 3-3 Control Area Overview
7
1
2
3
4
symbol appears on the
