5. Use the Arbitrary Function Generator
(Optional to specific models)
The function generator provides 4 basic waveforms (sine, square, ramp, and pulse) and 46
built-in arbitrary waveforms (Noise, Exponential rise, Exponential fall, Sin(x)/x, Staircase,
etc.). You can create a user-definable waveform and save it to internal storage or USB
device.

Output Connection

Push the Utility button, select Function in the bottom menu, select Output in the left
menu. In the bottom menu, select Output, in the right menu, select AG Output.
Single-channel:
Connect the BNC cable to the port marked Out in the back of the oscilloscope.
Dual-channel:
Connect the BNC cable to the port marked Out 1or Out 2 in the back of the oscilloscope.
Out 1 is the output of CH1, Out 2 is the output of CH2, also can be used as the port of
trigger signal output & Pass/Fail output.

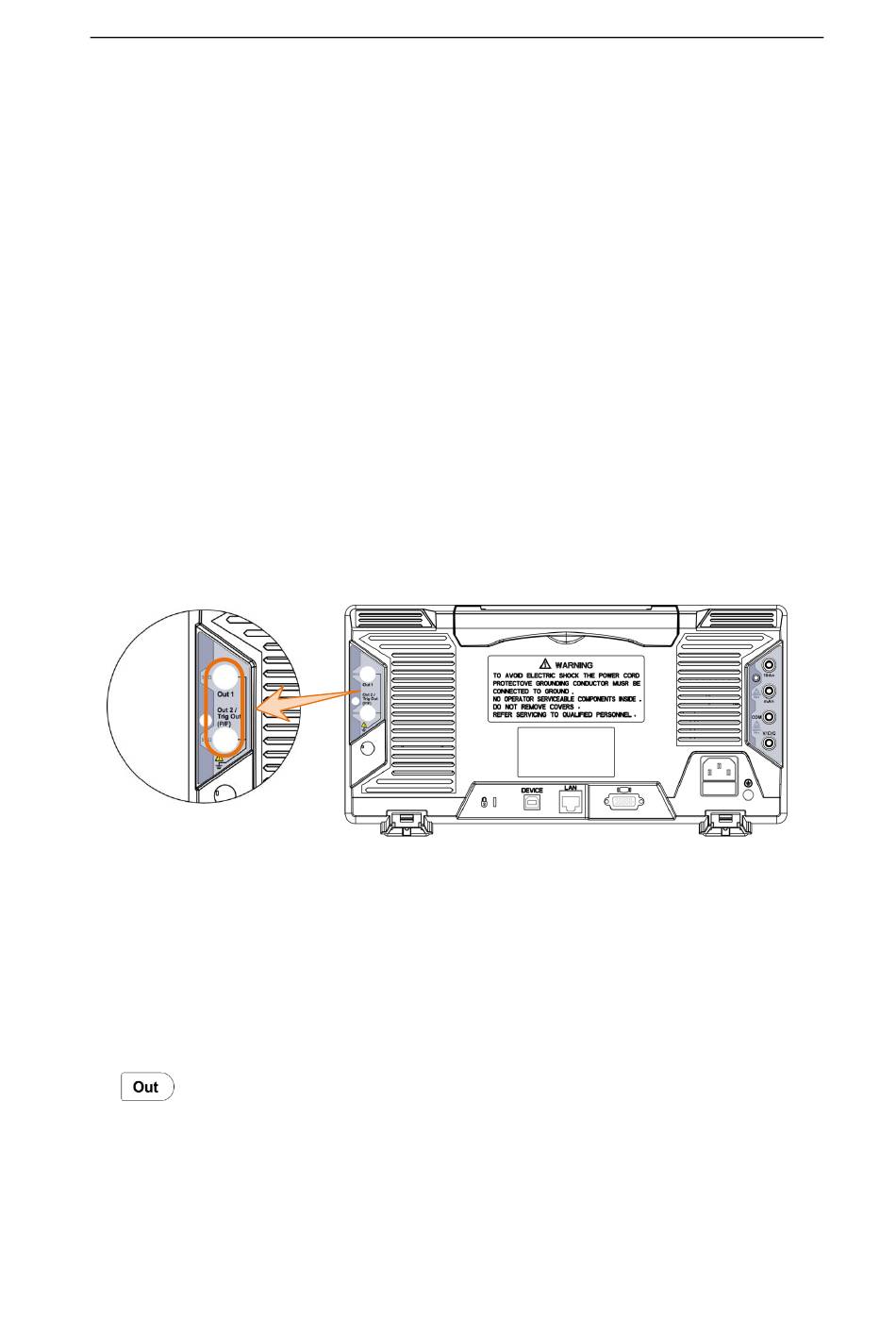

Figure 5-1 Generator Output Ports (Dual-channel)
To see the output of the generator, connect the other end of the BNC cable to one of the
input channels on the front of the oscilloscope.

To Set Channels

Single-channel:
Push to turn on/off the channel output. The indicator will be lighted when the
corresponding channel is tuned on.
Dual-channel:
 To Switch Channels in Menu Settings
98
