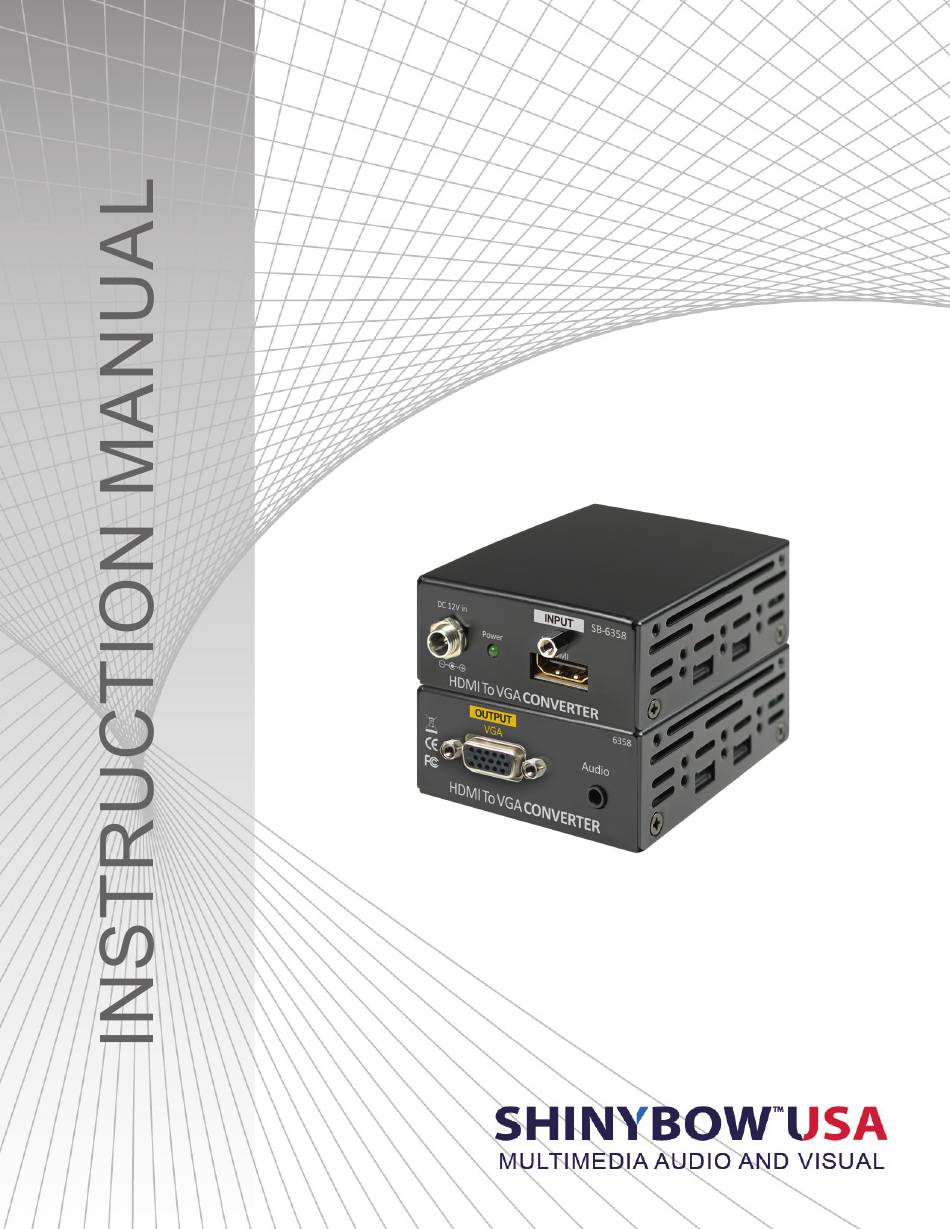

- Page 1 SB-6358 HDMI to VGA CONVERTER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts The SB-6358 is a high performance digital video converter inside the unit. supporting (1) HDMI Input and (1) VGA+Stereo Audio output. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • HDMI Digital Audio Video to Analog VGA Converter • Inputs: HDMI (Digital Video/Audio) • Outputs: VGA+Stereo Audio • Automatically detects and passes through the HDMI signal to VGA • Supports High VGA resolution Inputs and Outputs: VGA 640x480, SVGA 800x600, XGA 1024x768, WUXGA 1920x1200 (Maximum) •... -
Page 5: Front & Back Panels
FRONT & BACK PANEL - INPUTS/OUTPUTS FRONT PANEL BACK PANEL 1. DC POWER INLET / OUTLET: POWER JACK: The converter suits a DC power plug- pack input connector. Please ensure the plug-pack used is of an DC Jack: Inner OD Ø 2.1mm (+) approved type and of correct current, voltage output, and connector Outside OD Ø... -
Page 6: Vga Input & Hdmi Output Resolutions
HDMI INPUT TO VGA OUTPUT RESOLUTION TABLES / TYPICAL APPLICATION HDMI - PC TYPE INPUT TO VGA RESOLUTIONS HDMI PC TYPE INPUT TO VGA MONITOR RESOLUTIONS 640x350@85Hz 640x480@60Hz 640x480@67Hz 640x480@75Hz 640x480@85Hz 720x400@85Hz 800x600@56Hz 800x600@60Hz 800x600@72Hz 800x600@75Hz 800x600@85Hz 832x624@75Hz 848x480@60Hz 1024x768@60Hz 1024x768@70Hz 1024x768@75Hz 1024x768@85Hz... - Page 7 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 8 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
