Summary of Contents for Gefen DVI-444N

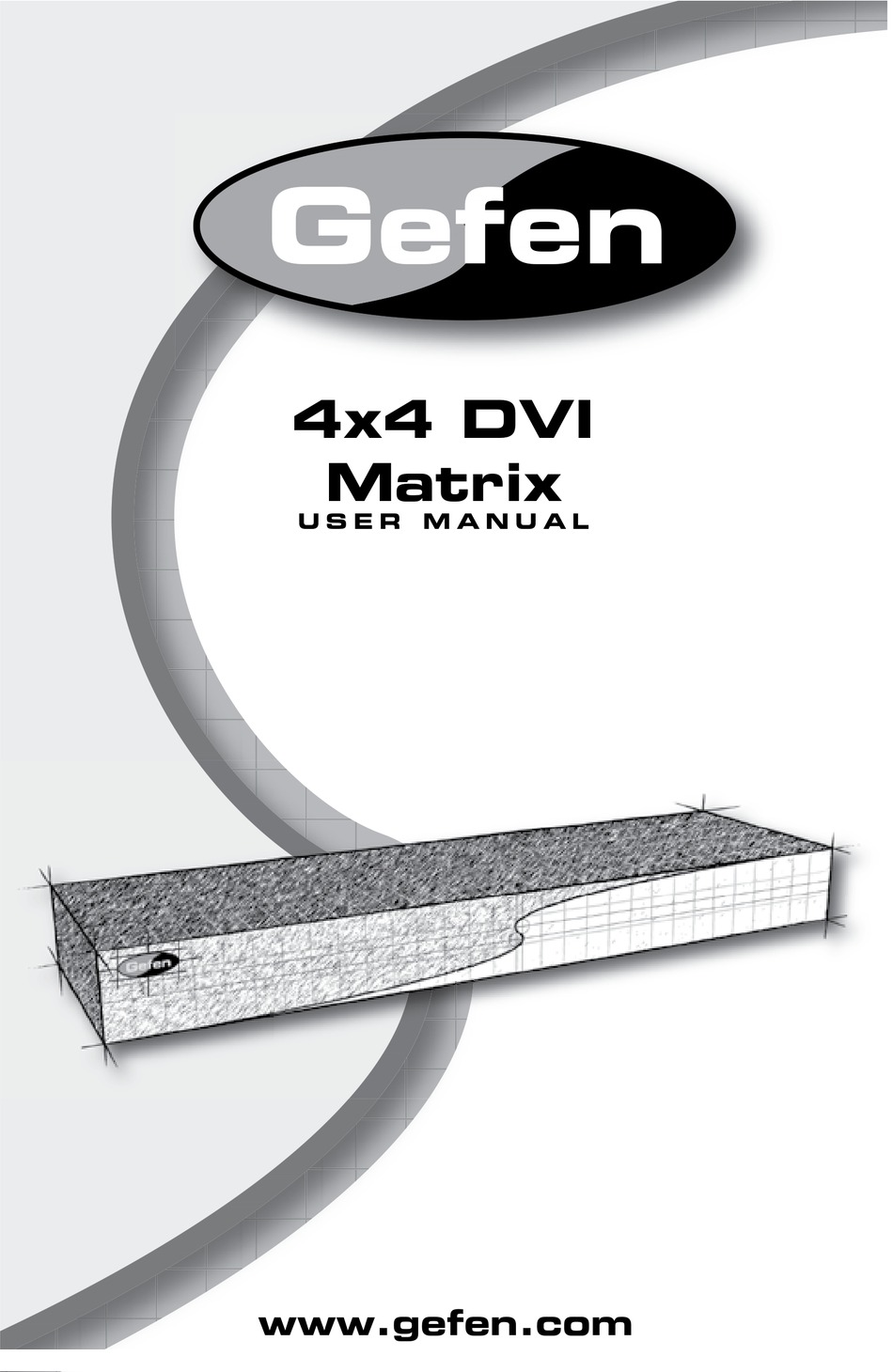

- Page 1 4x4 DVI Matrix U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. The 4x4 DVI Matrix is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Panel Layout Using the 4x4 DVI Matrix RMT16-IR Installation IR Codes Dip Switch Guidelines RS-232 Interface 4x4 DVI Matrix Rack Mount Diagram Specifications Terminology Troubleshooting Troubleshooting Diagram Warranty... -
Page 4: Introduction / Operation Notes
INTRODUCTION Thank you for purchasing the 4x4 DVI Matrix. The 4x4 DVI Matrix switches four DVI sources to any four DVI displays. The 4x4 DVI Matrix switcher has four DVI inputs and four DVI outputs. Matrix input #1 and the DVI port of DVI source #1 connects using a male to male DVI cable. -
Page 5: Features
FEATURES Features • Allows any DVI display to view any source at any time • Allows any source to be displayed on multiple displays at the same time • Maintains resolutions up to 1080p, 2K, and 1920x1200 • Maintains highest DVI single link video resolution •... -
Page 6: Panel Layout
PANEL LAYOUT... -
Page 7: Using The 4X4 Dvi Matrix
USING THE 4x4 DVI MATRIx 1 Connect all the sources to the DVI inputs on the 4x4 DVI Matrix, using the supplied cables. 2 Connect the HDMI/DVI displays to the outputs on the 4x4 DVI Matrix. 3 Connect the power supply to the 4x4 DVI Matrix 4 Controlling the 4x4 DVI Matrix using the RMT16-IR: Pressing Buttons... -
Page 8: Rmt16-Ir Installation
RMT16-IR Installation 1. Remove battery cover from the back of the RMT16-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side fac- ing up. -
Page 9: Ir Codes
1. Remove the battery cover from the back of the RMT16-IR remote. 2. Locate the Dip Switches above the batteries 3. Switch the Dip Switches on the RMT16-IR to any of the combinations pic- tured below. 4. Dip Switches 1 and 2 in the RMT16-IR correspond with Dip Switches 1 and 2 inside the 4x4 DVI Matrix respectively. -
Page 10: Dip Switch Guidelines
IR Code Dip Switch IR Code Dip Switch Unused Unused Unused Unused Unused Unused Bottom Description Corresponds to Dip Switch 1 on RMT-16-IR Corresponds to Dip Switch 2 on RMT-16-IR Unused Unused Unused Unused Unused Unused Remove Tape IR Switches... -
Page 11: Rs-232 Interface
Binary Table ASCII Corresponding RMT16-IR Button RS232 Settings Bits per second ... 19200 Data bits ... 8 Parity ... None Stop bits ...1 Flow Control ... None RS-232 INTERFACE Binary ASCII Corresponding 0011 0001 0011 0010 0011 0011 0011 0100 0011 0101 0011 0110 0011 0111... -
Page 12: 4X4 Dvi Matrix Rack Mount Diagram
4x4 DVI MATRIx RACK MOUNT DIAGRAM... -
Page 13: Specifications
SPECIFICATIONS Video Amplifier Bandwidth ...1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) DVI Connector...DVI-I 29 pin female (digital only) Single Link Range ...1080p / 1920 x 1200 Remote Control Port ... RS-232 Female, Mini-Stereo Power Consumption ... -
Page 14: Troubleshooting
Using both of these techniques, individually or in conjunction, will help you tune in your signal to get the best possible image quality out of your Gefen 4x4 DVI KVM Matrix. 8 Dip Switch Bank (Pre-emphasis) -
Page 15: Troubleshooting Diagram
TROUBLESHOOTING - DIAGRAM Remove Tape Front Bottom Pre-Emphasis Switches Auto Equalization Switches...
