INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-8811

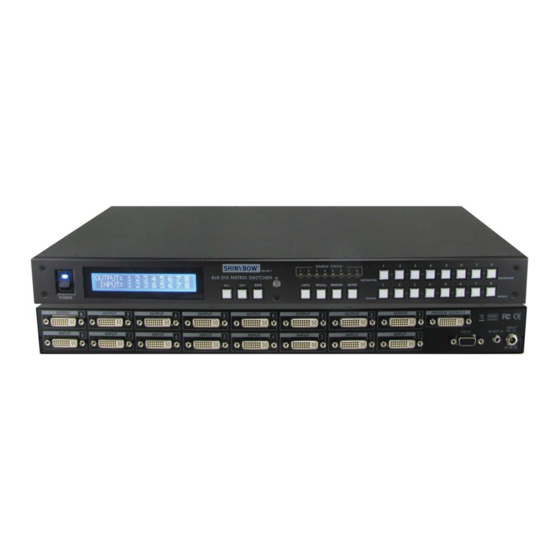

8x8 DVI MATRIX SWITCHER
8x8 DVI MATRIX SWITCHER
FULL HD DVI Matrix Switcher Series
Thank you for purchasing the SB-8811 DVI Matrix Switcher. You will fi nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use this switcher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-8811 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shinybow USA SB-8811

  • Page 1 FULL HD DVI Matrix Switcher Series Thank you for purchasing the SB-8811 DVI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher.
  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
  • Page 3: Table Of Contents

    PSU if it is damaged. • Do not allow anything to rest on the power cabling or allow any The SB-8811 is high-performance 8x8 matrix routing switcher weight to be placed upon it or any person walk on it. for DVI (Digital Visual Interface) signals. This switcher supports •...
  • Page 4: Features & Specifications

    FEATURES & SPECIFICATIONS FEATURES • 8x DVI digital source devices matrix switched to 8x DVI devices. • DVI digital video w/embedded audio, DVI format and CEC/HDCP 2.0 compliant • Seven (7) function key control and worldwide (4) EDID modes for HDTV resolutions. •...
  • Page 5: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2.
  • Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
  • Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location. - Confi...
  • Page 8: Rear Panel

    BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug input connector. Ensure DC Jack - Inner OD Ø 2.1 mm (+) that the used is of an approved type and is of suffi cient current Outside OD Ø...
  • Page 9: Remote Control

    REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 10: Remote Protocol Commands

    REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 33CC CUSTOM CODE : 33CC POWER ON : 33CC A15E POWER OFF : 33CC A25D ALL : 33CC B04F OFF : 33CC B14E LOCK : 33CC B54A EDID : 33CC B748 RECALL : 33CC B24D...
  • Page 11: Edid Functions

    EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status.
  • Page 12: Edid Function

    EDID FUNCTION EDID function : 4x Embedded EDID Modes Mode 1. FSS (Fast Speed Start) Automatic capture most suitable EDID from Destination to Source. Mode 2. 1280x1024-60Hz (DVI-D) DVI Support : DVI-D 1280x1024 - 60Hz Mode 3. 1920x1200-60Hz (DVI-D) DVI Support : DVI-D 1920 x 1200 - 60Hz Mode 4.
  • Page 13 EDID FUNCTION EDID FUNCTION FOR DVI MATRIX SWITCHER EDID status To view the current EDID status. Step 1. Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2. Press EDID button To exit.
  • Page 14: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-6335T HDBaseT Transmitter SB-6335R HDBaseT Receiver 2. Preview Output : Picture as same OUTPUT-1 3.
  • Page 15 TYPICAL APPLICATION INSTALLING DIAGRAM Example connection using IR transmitters (SB-101) and IR receivers (SB-100) with SB-6335T and SB-6335R to control a satellite receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT CAT6/6a/7 extender from room: SB-6335 HDBaseT CAT5e/6/7 Transmitter SB-6335R HDBaseT CAT5e/6/7 Receiver 2.
  • Page 16: Ir Extender

    IR EXTENDER REAR PANEL IR EXTENDER PORT *** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. *** IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS...
  • Page 17: Rs-232 Protocol

    RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION -2.0 COMPATIBLE RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS (RS-232 Control driver V2.0.1) The ShinybowUSA switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control...
  • Page 18: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
