Summary of Contents for Shinybow USA SB-5588CT

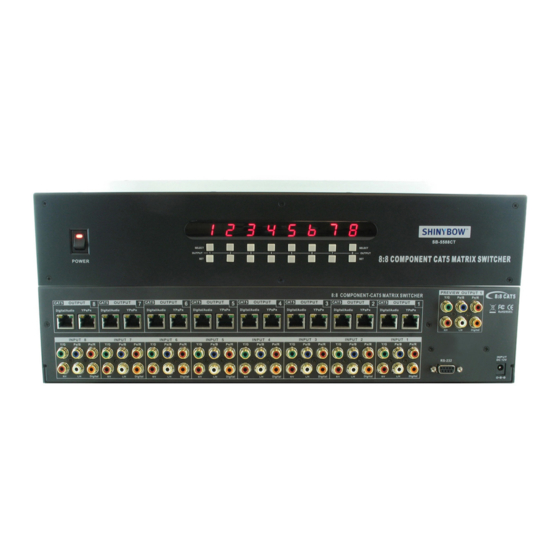

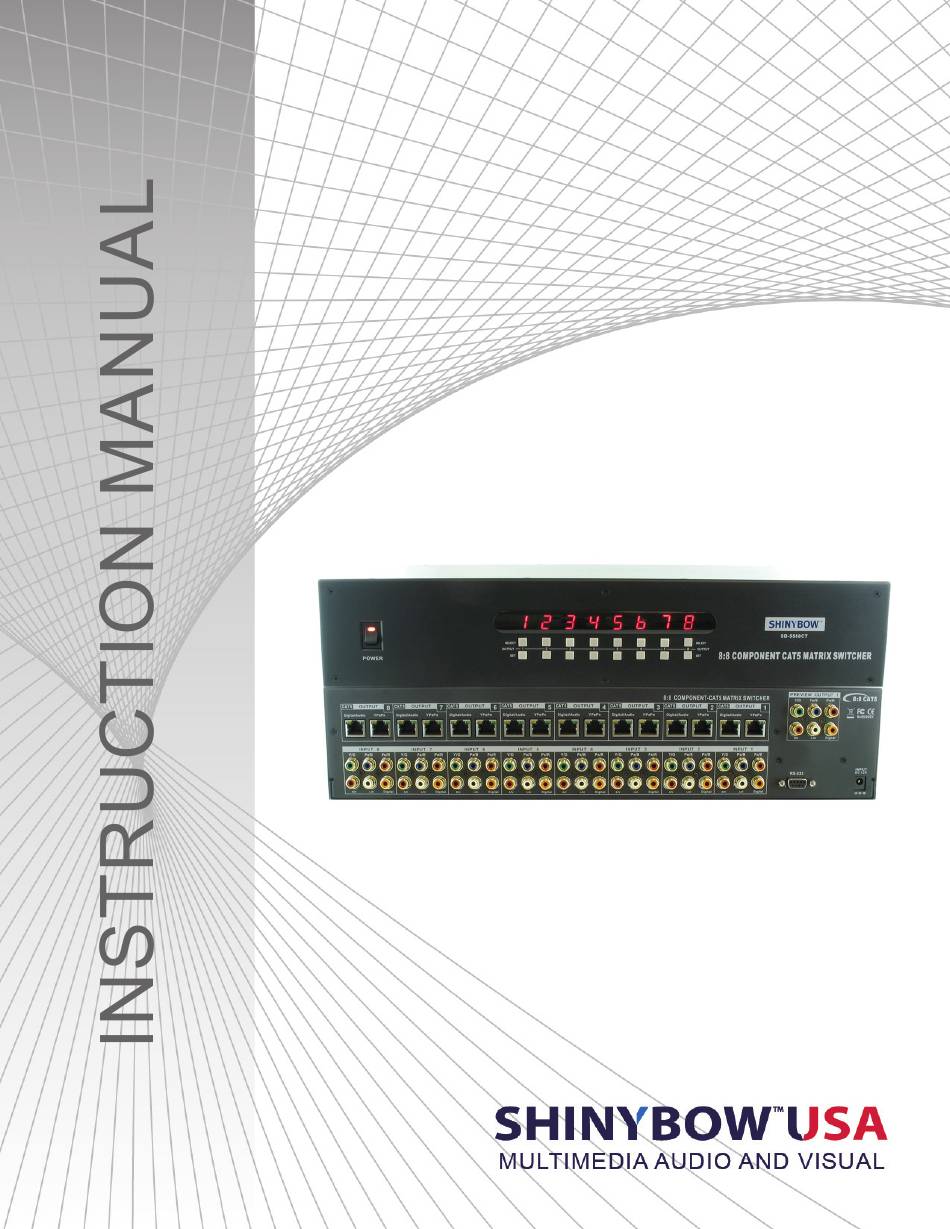

- Page 1 SB-5588CT 8x8 HDTV Component Video w/ Digital and Stereo Audio Matrix Routing Switch w/ CAT5 Output...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
Component Video-Digital/Stereo Audio Over CAT5 Matrix Switcher Series Thank you for purchasing the SB-5588CT Component-CAT5 Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 8x8 Component Video-Digital/ Stereo Audio Over CAT5 Matrix Switcher. -
Page 4: Features, Specifications & Contents
As product improvements are continuous, specifications are subject to change and without notice. PACKAGE CONTENTS Check that you have the following components; • SB-5588CT 8x8 Matrix Switcher • IR Remote control (SW-5588A) • RS-232 DRV package • 19 inch 2RU Rack Mounts •... -
Page 5: Front Panel
If the input signals to the SB-5588CT are appropriate, switch the power switch to <ON> and you should see and hear the signals on the devices you have connected to the various output connectors of the SB-5588CT. -
Page 6: Rear Panel
BACK PANEL 1. DC POWER INLET: POWER JACK: The SB-5588CT is fitted with a DC power plug- park input connector. Please ensure that the plug-park used is of DC Jack - Inner OD Ø 2.1mm (+) an approved type and is of sufficient current carrying capacity with Outside OD Ø... -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the SB-5588CT. Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. - Page 8 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO CONTROL IR CODES POWER ON : 00FF 02FD POWER OFF : 00FF 03FC TV-IN / AV OUT INPUT#1/OUTPUT#1 : 01FE 11EE INPUT#1/OUTPUT#2 : 01FE 12ED INPUT#1/OUTPUT#3 : 01FE 13EC INPUT#1/OUTPUT#4 : 01FE 14EB INPUT#1/OUTPUT#5 : 01FE 15EA INPUT#1/OUTPUT#6 : 01FE 16E9...
-
Page 9: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM RS-232 SERIAL INTERFACE RS-232 The switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC or RS-232 Definition similar third party control system. -------- Not used Transmitter... -
Page 10: Rs-232 Protocol Commands
RS-232 SERIAL COMMANDS MORE STUFF FOR SB-5588CT Note: Turning the unit System Power Off over RS-232 will distinguish the LED display leaving only the Power Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS-232 it will continue to accept and act upon switching commands. -
Page 11: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 12 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 13: Typical Application
CAT5 -1 - Component Video (YPBPR), connector with RJ-45 CAT5 -2 - Digital Audio (PCB) & Stereo Audio (AR/AL) connector with RJ-45 SB-5588CT SUPPORTS (8) COMPONENT INPUTS MATRIX TO (8) SWITCH OUTPUTS. SUPPORTS CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 14: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
