NTI UNIMUX SERIES 4K VIDEO USB KVM SWITCH

RS232 Connection

If the RS232 is going to be used, connect one end of the CAT5 patch cable (supplied) to the port labeled "RS232" on the rear of
the UNIMUX. Plug the other end of the CAT5 cable into the RJ45-to-DB9 adapter supplied, and connect the adapter to the
RS232 port on the control terminal. Follow the instruction under "RS232 Control" on page 16 for configuration and use of the
RS232 control feature.

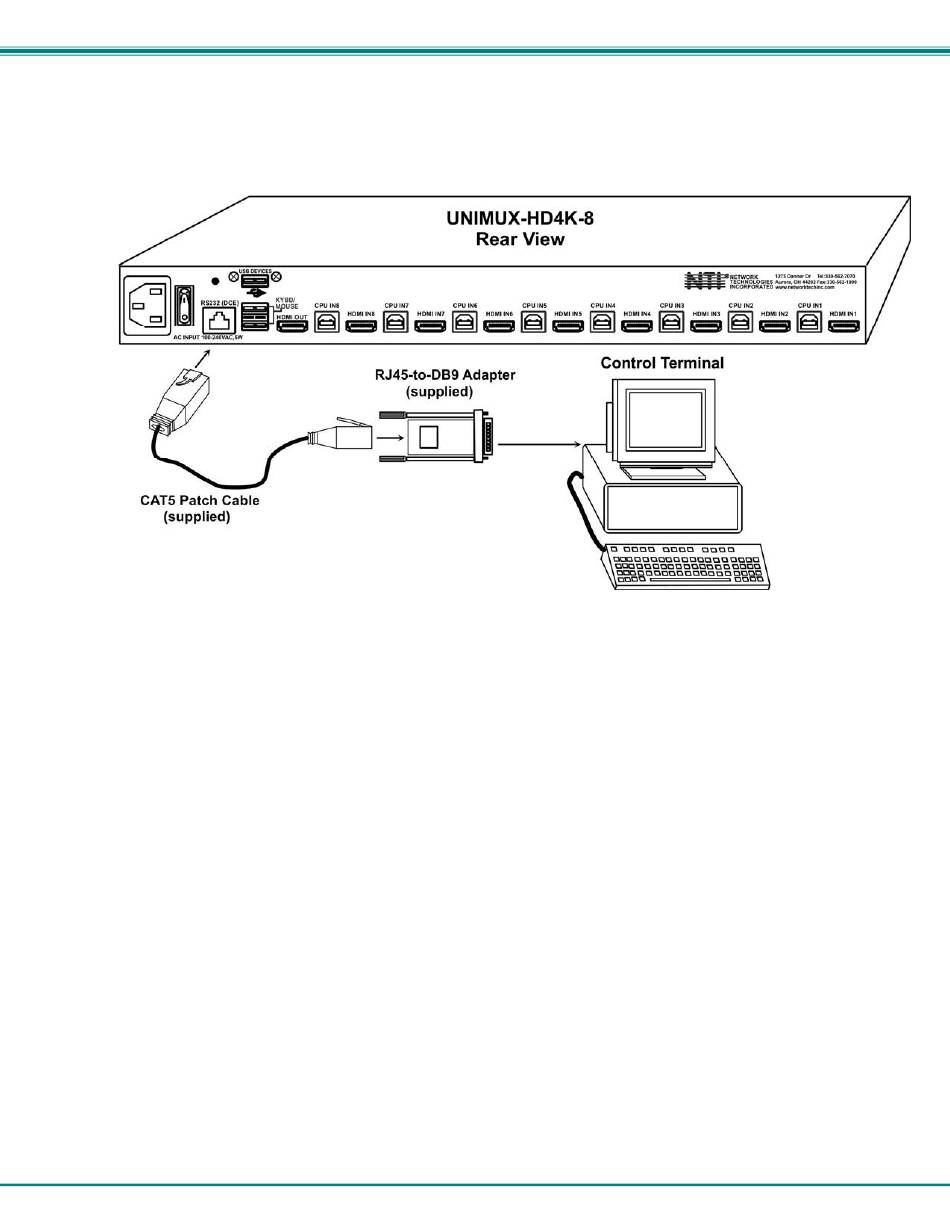

Figure 7- Connect Terminal for RS232 Control

6
