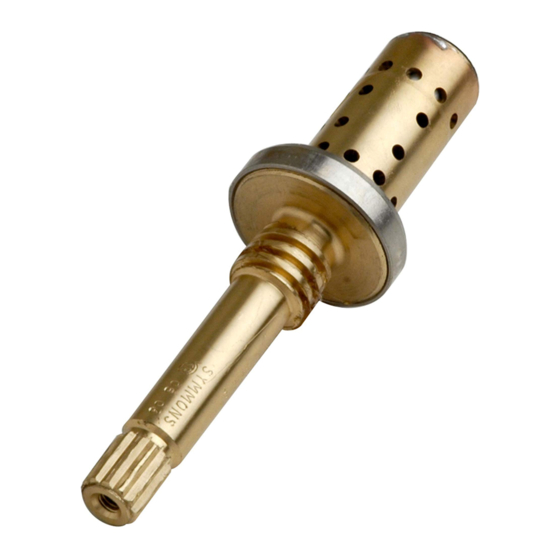

Replacing a TA-10 Spindle

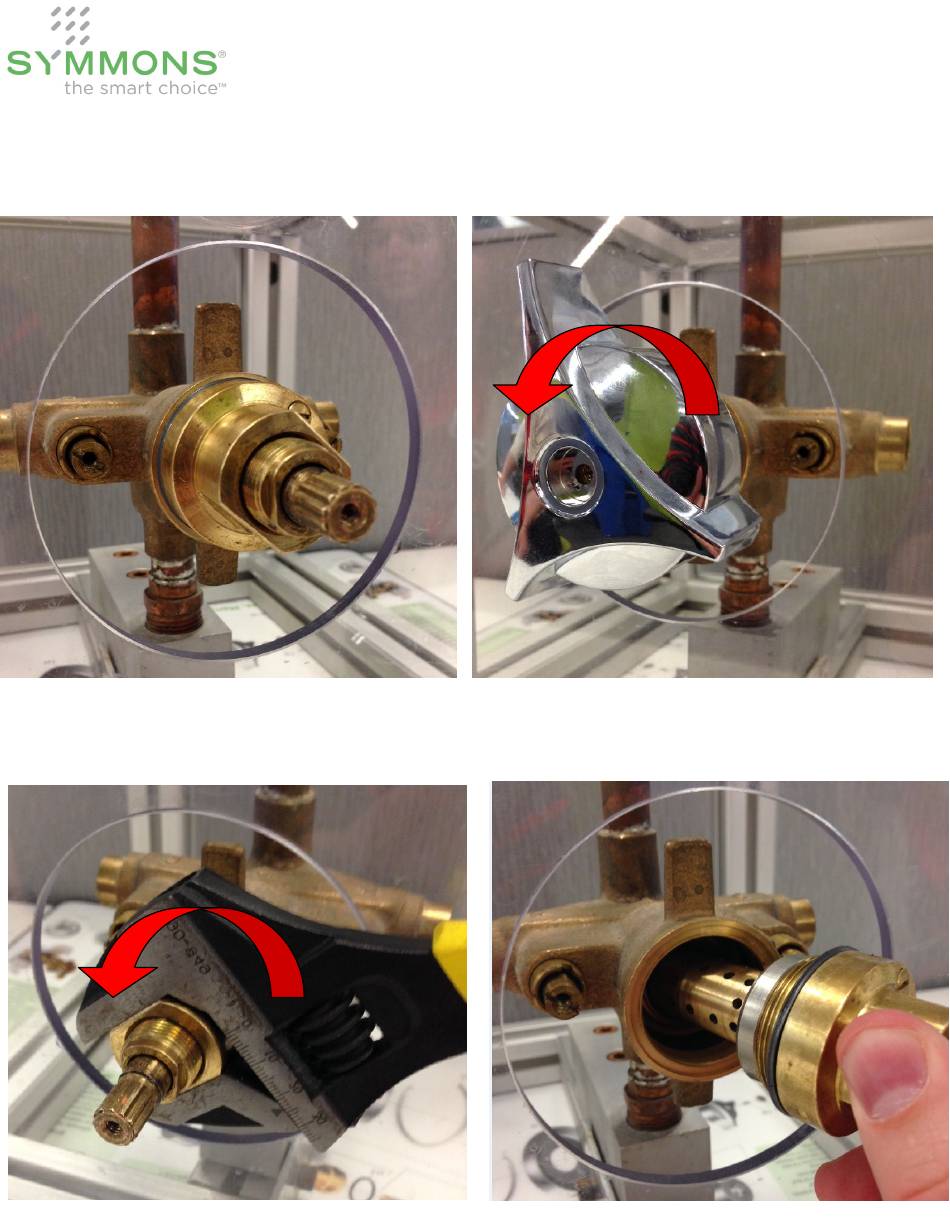

1) First, you need to make sure the water to the valve has been shut off. Then, we need to
open the valve to the warm/hot position. Utilizing your handle, rotate counter-clockwise un-
til the handle stops.
2) Using a wrench, rotate the cap assembly (T-12A) counter-clockwise until the cap (T-12A)
and spindle assembly (TA-10) are removable from the valve body.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Symmons TA-10

Summary of Contents for Symmons TA-10

  • Page 1 Utilizing your handle, rotate counter-clockwise un- til the handle stops. 2) Using a wrench, rotate the cap assembly (T-12A) counter-clockwise until the cap (T-12A) and spindle assembly (TA-10) are removable from the valve body.
  • Page 2 3) Notice how the TA-10 spindle rests up against the T-12A cap. This is assurance that the valve was open fully to the hot water position before trying to remove the cap. Failure to do so can damage the cap and spindle and make it extremely difficult to remove the spindle from the valve.
  • Page 3 5) Take your assembled cap assembly (T-12A) and spindle (TA-10) and insert the cartridge back into the valve. Using a wrench, tighten the cap assembly (T-12A) back to the body of the valve in a clockwise rotation. Close the valve body utilizing your handle and rotating clockwise until the valve closes.
