Symmons T-700B-V Series Installation Instructions

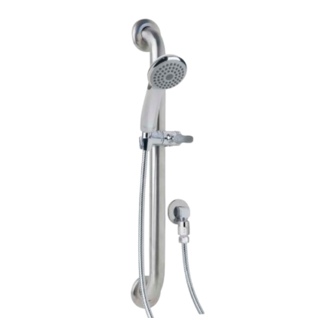

Wall Mounted Slide/Grab Bar & Hand Shower
with non-positive shut-off, T-700B-V Series
Installation Instructions
Model Numbers
T-700B-24-V
24 inch slide/grab bar with hand shower
T-700B-24-V-NE
24 inch slide/grab bar with hand shower,
without water supply elbow
T-700B-36-V
36 inch slide/grab bar with hand shower
T-700B-36-V-NE
36 inch slide/grab bar with hand shower,
without water supply elbow
T-700B-48-V
48 inch slide/grab bar with hand shower
T-700B-48-V-NE
48 inch slide/grab bar with hand shower,
without water supply elbow
Visual Guide
Step 1 Mount grab bar
six (6) #10 x 2-1/2"
(63.5 mm) wood
screws included
Grab Bar must be
secured with at least
two (2) of three (3)
screws at each end.
Tools and Materials
5/32" drill bit
1/4" carbide
tip drill bit for
wall tiles
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm and 2.0 gpm
For California Residents
WARNING: This product contains
chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Wall Mounted Slide/Grab Bar & Hand Shower T-700B-V
Step 2
drill hole
5/32 inch
escutcheon
bottom side
Adjust for
ease of
movement
1 2 3 4
Certi ed by
CSA Group
Attach slider assembly
at edge
SLIDE
LOCK
SLIDE

Need Help?
Symmons customer service:
Phone: (800) 796-6667
gethelp@symmons.com
Mon - Fri 7:30 am - 7:00 pm EST

www.symmons.com/service
• Technical help
• Product information
• Warranty policy
Step 3 Install hand shower
wall
elbow
step
washer
vacuum
breaker
washer
hose
