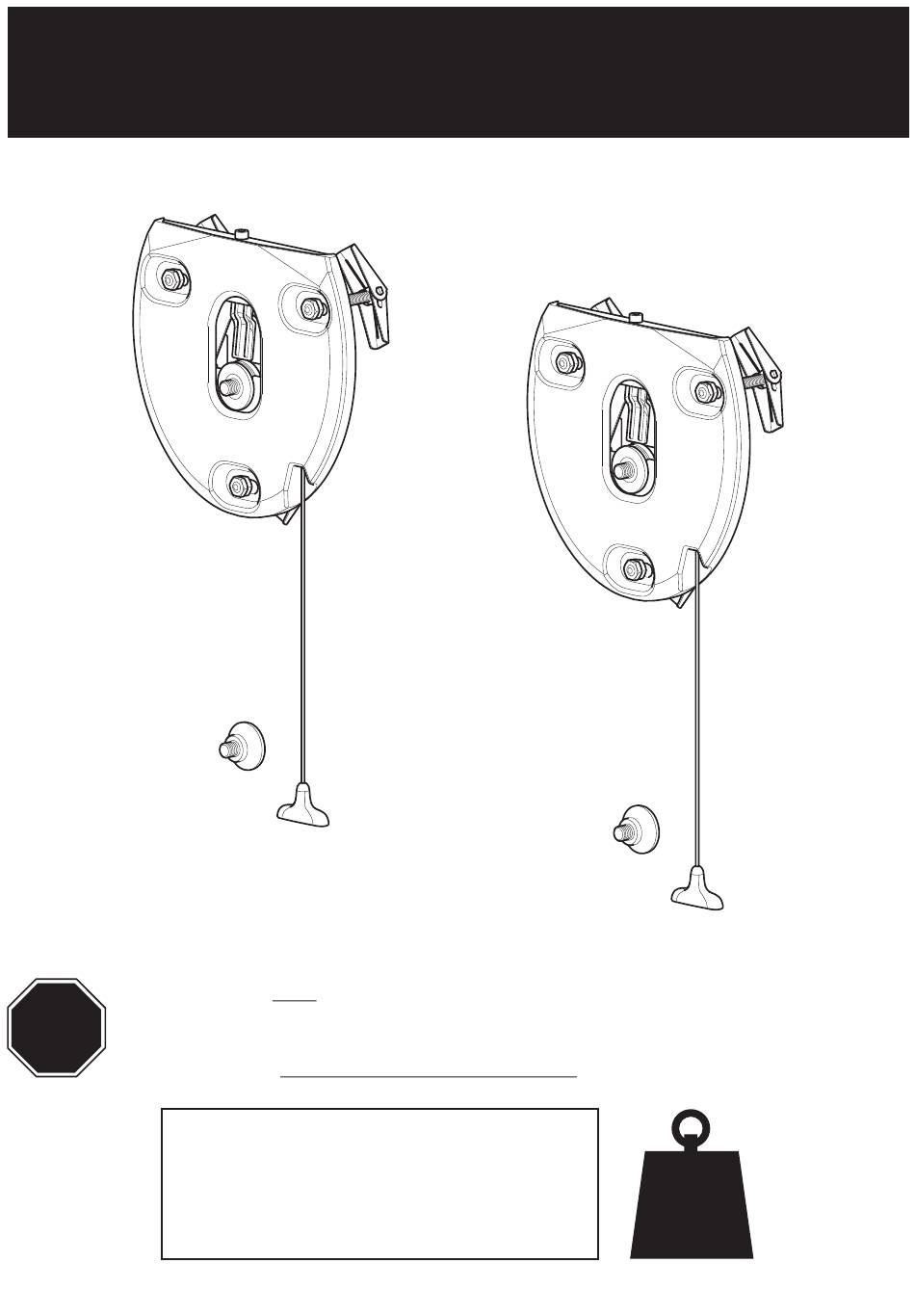

NZL8500
Leaflet No. 464055
rev01
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services help line before returning this product to
the store. Visit http://te.avf.co.uk/p/nzl8500 for more information.
CUSTOMER SERVICES HELP LINE NUMBER:
132lbs
01952 670009
60kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVF Group NZL8500
Summary of Contents for AVF Group NZL8500
- Page 1 If you have any questions about this product or issues with installation STOP contact the customer services help line before returning this product to the store. Visit http://te.avf.co.uk/p/nzl8500 for more information. CUSTOMER SERVICES HELP LINE NUMBER: 132lbs 01952 670009 60kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
- Page 2 Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - x2 - x2 - x2 Wall Bracket Hanger (Yellow) Stand-off TV Fixings: Parts go on the back of the TV (specification of your TV will determine which ones you require - see section 11).
- Page 3 Tools Recommended Ø10mm (25/64") Masonry Ø3mm (1/8") Stud Finder Wood Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which diameter 2, 5 ,8, 11 of screw fits your TV. To determine the correct screw diameter, try screwing (F ), (F ), (F...
- Page 4 Assemble Positioning Template The horizontal part of the positioning template is used to mark out where you need to drill the mounting holes on your wall. The vertical part is just a guide to allow you to see how high up the wall your TV will be to help you find the perfect position for viewing your screen.
- Page 5 Marking Wall For Drill Points Use your template to mark two points on the wall that correspond with the top fixing centres of your TV. Represents the centre of your TV. Pencil Mark Drill points. Central Hole Next, use the Wall Bracket (A) as a template and position it over one of the PENCIL MARKS you have made, so that the mark is in the middle of the CENTRAL HOLE of the Wall Bracket (A).
- Page 6 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm (25/64") Lubricate screw Remove thread with soap dust from hole 108mm (4-1/4") Ø10mm 40mm Max...
- Page 7 Hanging The TV TV must be parallel to wall. Use spacers / stand-offs as shown. Push the yellow Hangers (on the back of the TV) in to the yellow receptor on the Wall Brackets. Slide down into place. Ensure both yellow Hangers are fully engaged.
- Page 8 Alternative Hanger Configurations Wall Space Alternative Wall spacings of 12mm, 20mm & 40mm can be achieved using the spacer / screw combinations listed in this section. 20mm Wall Space (as shown in section 4) 12mm Wall Space 40mm Wall Space Top Fixings Top Fixings Top Fixings...
