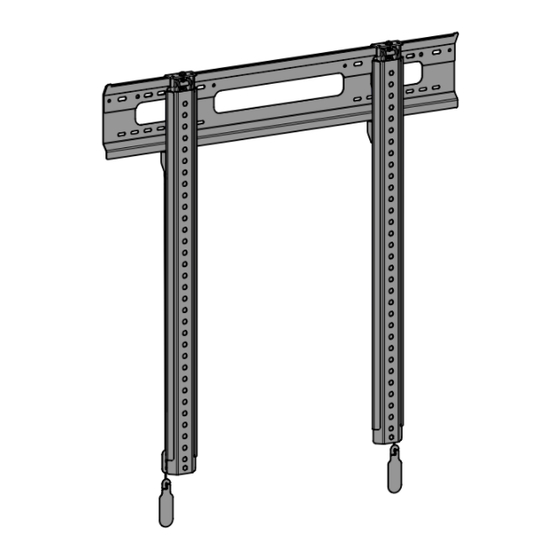

471440
avfgroup.com
rev00

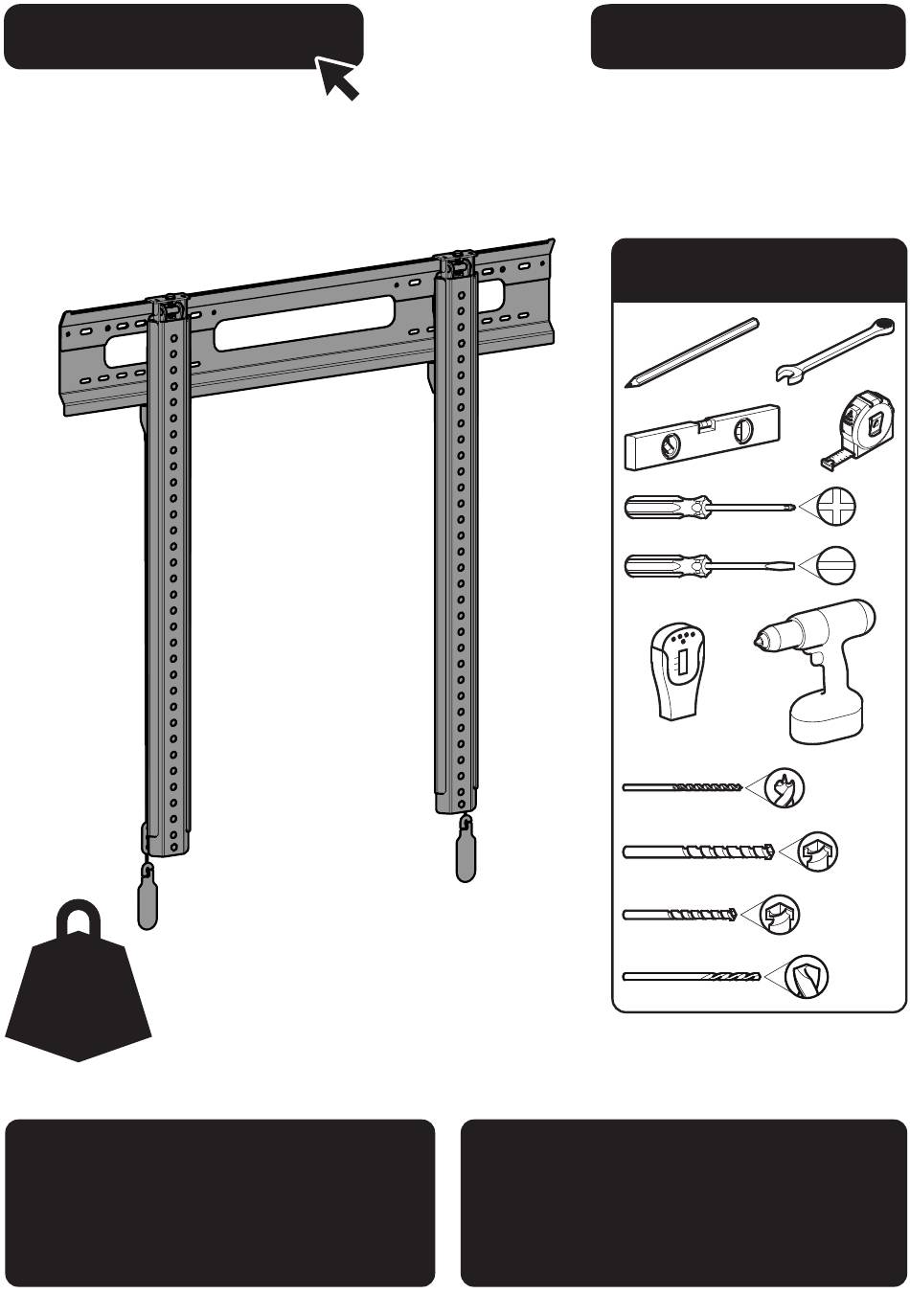

Please read these instructions thoroughly
before installation.
You will need
Stud Finder
Wood
Ø3mm (1/8")
Masonry
Ø7mm (1/4")
Masonry
Ø5.5mm (7/32")
Metal
68kg
Ø3.5mm (9/64")
150lb
If you have any questions or need
spare parts don't worry, we're happy to help.
Customer Helpline
Online Support
www.avfgroup.com/support
0333 320 0463
Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Related Manuals for AVF Group 471440
Summary of Contents for AVF Group 471440
- Page 1 If you have any questions or need spare parts don’t worry, we’re happy to help. Customer Helpline Online Support www.avfgroup.com/support 0333 320 0463 Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Assembly Overview Fitting the TV Brackets This product comes with screws to fit a huge range of TVs. You will have a lot of screws left over. We recommend keeping them in a safe place in case you change your TV in the future. Fitting the Wall Plate This mount is suitable for attaching to plasterboard, wood stud, brick, dot and dab, concrete, or any... - Page 3 Index Measure your VESA fixings and select TV Screws Preparing the TV Brackets Fitting the TV Brackets Marking the Wall for Drill Points Fitting the Wall Plate Hanging the TV TV Levelling Removing the TV Retain all packaging in case the product needs to be returned. Contents may vary from photography / illustrations.
- Page 4 Parts Included Wall Fixings...
- Page 5 TV Fixings M8’s M6’s 45mm 30mm 16mm M4’s 45mm 30mm 16mm...
- Page 6 Measure your VESA fixings and select TV Screws 75 - 600mm 75 - 400mm 600 x 400mm (MAX).
- Page 7 Preparing the TV Brackets Separate parts for both B1 and B2. Remove screws and keep for step 1.4.
- Page 8 Fitting the TV Brackets After completing this step, you will have lots of TV screws left over. Keep them in a safe place in case you require them in future. Select the correct length TV screw. Fit the TV Brackets as centrally as possible. If required You may need to use Spacers C1 or C2 if the screws are too long or the back of your TV is not flat.
- Page 9 Attach the bracket so the top is just below the top of the TV (we recommend 50mm). Measure the distance X and note for Step 2.1. For easy access, adjust the pull cord so that toggle is level with bottom of the TV.
- Page 10 Marking the Wall for Drill Points Mark a line on the wall where you want the top of your TV Measure down Xmm (from Step 1.3) and place your Wall Plate. Make sure the wall plate is level and mark the appropriate holes for your type of wall. For Solid Wall, Plasterboard and Dot and Dab mark the holes indicated below.
-
Page 11: Solid Wall
Fitting the Wall Plate This product is designed to be fitted to many different types of wall. Identify your wall type and follow the relevant instruction. Make sure you use the correct fixings for your wall. Solid Wall 10mm (25/64") 75mm (3") 5.5mm (7/32") 40mm (1... - Page 12 Wood Stud Wall (1/8") 75mm (3") Ensure holes are in the middle of a wood stud DO NOT overtighten screws. Lubricate screw thread with soap. Tighten screws by hand only...
- Page 13 Plasterboard Wall 18mm (3/4") (1/8") 40mm MIN Gap DO NOT overtighten screws. Lubricate screw thread with soap. Tighten screws by hand only...
- Page 14 Dot and Dab Wall 10mm (25/64") 108mm (4 ") (1/8") 40mm MAX Gap If the gap is above 40mm use the plasterboard wall fixing method. DO NOT overtighten screws. Lubricate screw thread with soap. Tighten screws by hand only...
- Page 15 Hanging the TV...
- Page 16 TV Levelling If your TV needs leveling, only adjust the TV Leveling Screw on the low side of the TV. For example, if the left hand side of your TV is low, adjust the left hand TV Leveling Screw only, until your TV is level.
