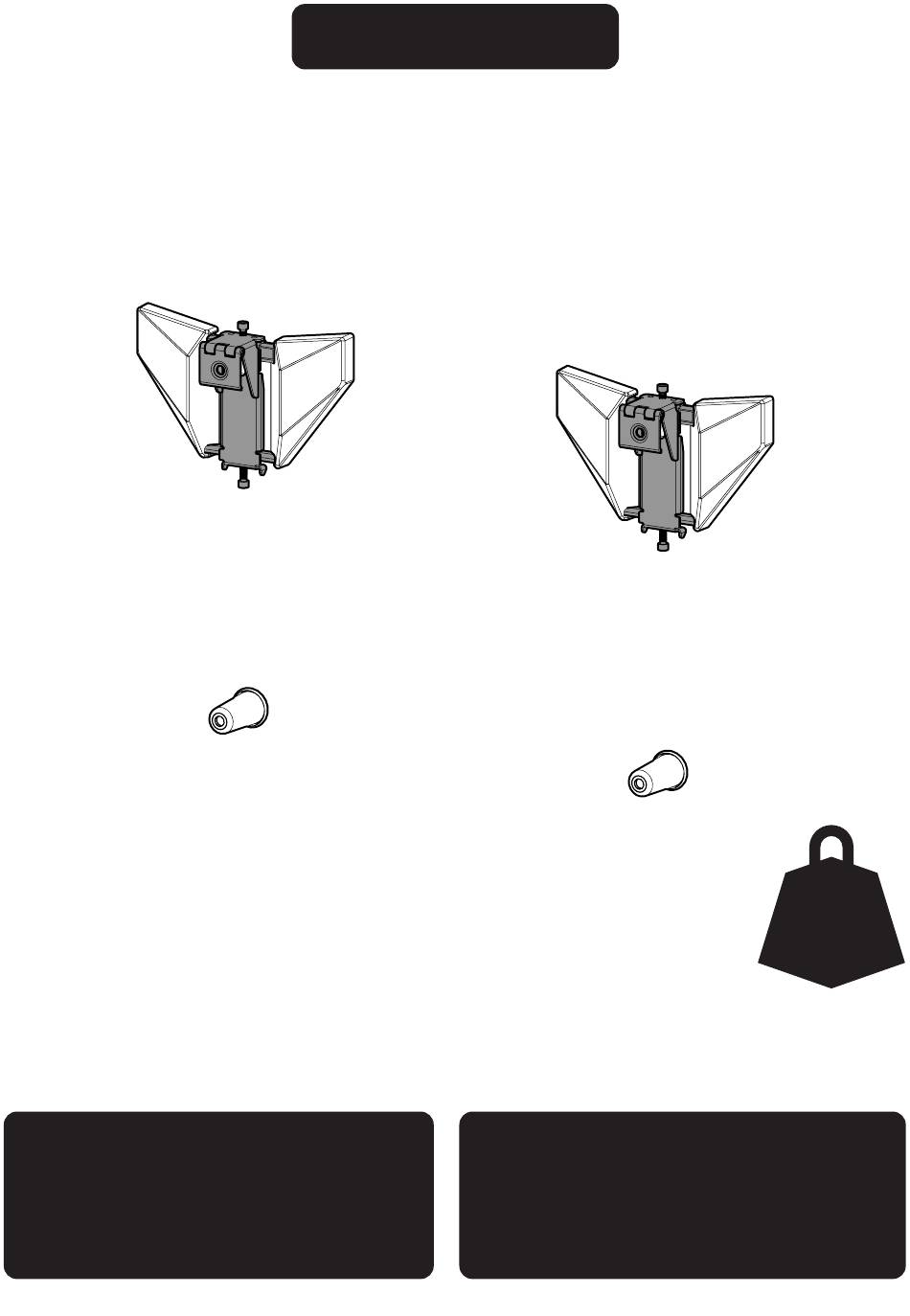

471748 Rev01
Please read these instructions thoroughly before installation.
60kg
132lb
If you have any questions or need
spare parts don't worry, we're happy to help.
Customer Helpline
Online Support
www.avfgroup.com/support
0333 320 0463
Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Table of Contents
Related Manuals for AVF Group 471748
Summary of Contents for AVF Group 471748
- Page 1 If you have any questions or need spare parts don’t worry, we’re happy to help. Customer Helpline Online Support www.avfgroup.com/support 0333 320 0463 Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Warranty Information
WARRANTY INFORMATION LIFETIME WARRANTY AVF warrants that the product is free from defects in material and workmanship, as long as the product is owned by the original consumer purchaser. If, during the stated warranty of this product, it proves to be defective, AVF will remedy the defect by either repairing or replacing the defective part or, replacing the entire product. -
Page 3: Tools Recommended
Index Measure the TV fixing holes Width and Height Marking Wall for Drill Points Fitting the Wall Brackets Fitting the Wall Bracket Covers Levelling the Screen Hangers Fit Screen Hangers to TV Hanging the TV Retain all packaging in case the product needs to be returned. Contents may vary from photography / illustrations. - Page 4 Boxed Parts...
- Page 5 TV Screws, Reducers and Spacers 50mm 25mm...
-
Page 6: Assembly Overview
Assembly Overview Fitting the Wall Bracket This product is suitable for attaching to plasterboard, wood stud, brick, dot and dab, concrete, or any combination of these wall types. Establish which wall type you are mounting to and follow the corresponding steps. This product comes with fixings for all the wall types mentioned above. - Page 7 Measure the TV fixing holes Width and Height 200mm to infinity 100mm to infinity If width is less than 200mm or height less than 100mm STOP installation now and contact the customer helpline. Determine which diameter TV Screws fit your TV and put them to one side. M4, M6 or M8 We will select the correct length later.
- Page 8 Marking Wall for Drill Points Assemble the Positioning Template. TV VESA Holes Bracket Top Central Hole Bracket Bottom Central Hole Determine Bracket Holes Centres. Lay the template on the back of the TV and follow the instructions below. Place the top row of holes on template T1 over the top fixing holes on your TV.
- Page 9 Marking the Wall. Before marking the wall, determine the wall type that you have (i.e. Solid Wall/ Dot & Dab/Plasterboard/Wood Stud/Metal Stud). Ensure the drilling area is free from mains services (Gas/Electric/Water). Represents the top of your TV. Use your template to mark Represents the two points on the wall that centre of your TV.
-
Page 10: Fitting The Wall Brackets
Fitting the Wall Brackets This product is designed to be fitted to many different types of wall. Identify your wall type and follow the relevant instruction. Make sure you use the correct fixings for your wall. Solid Wall 10mm (25/64") 75mm (3") MIN 5.5mm (7/32") 40mm (1... - Page 11 Dot and Dab 10mm (25/64") 108mm (4 ") MIN Remove Dust from Holes. 40mm (1 ") 9/16 MAX gap. If gap is above 40mm (1 ") use 9/16 plasterboard fixing method. If you have trouble fitting J you can drill a 3mm pilot hole. Lubricate screw thread with soap.
- Page 12 Plasterboard 18mm (3/4") Remove Dust from Holes. 40mm (1 ") 9/16 MAX gap. If you have trouble fitting J you can drill a 3mm pilot hole. Lubricate screw thread with soap. DO NOT overtighten screws. Tighten screws by hand only...
- Page 13 Wood Stud 18mm (3/4") 3mm (1/8") 75mm (3") MIN Ensure hole is in the middle of the wood stud. Use Plasterboard fixing G Only one fixing will be in the wood stud. The other fixings will be in plasterboard (see Plasterboard installation instruction).

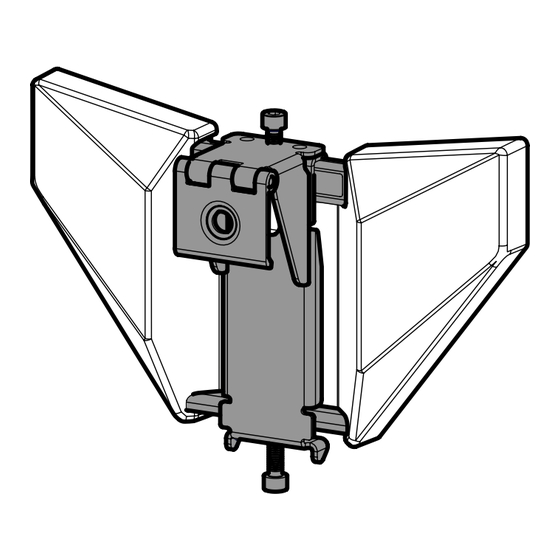

- Page 14 Fitting the Wall Bracket Covers Fit the wall bracket covers by pushing covers A2 on to the wall brackets A1 until they click in to place.
- Page 15 Levelling the Screen Hangers Slide hangers B in to position on each wall bracket. Use a spirit level across the tops of the hangers to check they are level. If the spirit level isn’t long enough, place a flat piece a wood across the tops of the hangers first.
- Page 16 Fit Screen Hangers to TV Make sure you connect the Screen Hangers in the correct position after you have levelled them. This will ensure the TV is level when you hang it on the wall. Bottom of TV of TV Flip open the hangers to access the screw hole when fitting to the back of the TV.
- Page 17 After completing this step, you will have lots of TV screws left over. Keep them in a safe place in case you require them in future. Select the correct length TV screw. Use the same combination of screws, washers and spacers in all four TV fixing holes.
- Page 18 Hanging the TV View “through” TV from the front. Side View Do not tilt the TV when hanging. The TV must be vertical (parallel to the wall) when hooking in to place.
- Page 19 Locking the TV You can carefully pull the bottom of the TV away from the wall, and hold it in position, to gain better access to the TV Locking Screws. Removing the TV To remove the TV reverse the hanging procedure. Do not tilt the TV when removing.
-
Page 20: Cable Access
TV Levelling (optional) If your TV needs levelling, only adjust the TV Levelling Screw on the low side of the TV. For example, if the right hand side of your TV is low, tighten the right hand TV Levelling Screw only, until your TV is level. For larger TVs you may need to use the extended Allen Key in order to reach the TV Level Adjustment Screws.
