NML200
##
Leaflet No. 466993
rev00
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store.
See te.avf.co.uk/NML20 for more information.
CUSTOMER SERVICES HELP LINE NUMBER:
+44 (0) 333 320 0463 (UK)
44lbs
1-800 667 0808 (USA)
20kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
AVF Group, Inc. 2775 Broadway, Cheektowaga, Buffalo, New York, 14227 USA
www.avfgroup.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF Group NML200
Summary of Contents for AVF Group NML200
- Page 1 See te.avf.co.uk/NML20 for more information. CUSTOMER SERVICES HELP LINE NUMBER: +44 (0) 333 320 0463 (UK) 44lbs 1-800 667 0808 (USA) 20kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England AVF Group, Inc. 2775 Broadway, Cheektowaga, Buffalo, New York, 14227 USA www.avfgroup.com...
-
Page 2: Tools Recommended
Index Determine Correct TV Screw Size Fit Screen Hangers to TV Marking Wall For Drill Points Planning & Preparation Install Wall Fixings Hanging the TV Alternative Hanger Configurations Retain all packaging in case the bracket needs to be returned. Contents may vary from photography / Illustrations. You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - Page 3 Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. TV Screws, Reducers and Spacers TV Fixings: Parts go on the back of the TV (specification of your TV will determine which ones you require - see section 9).
-
Page 4: Tools Included

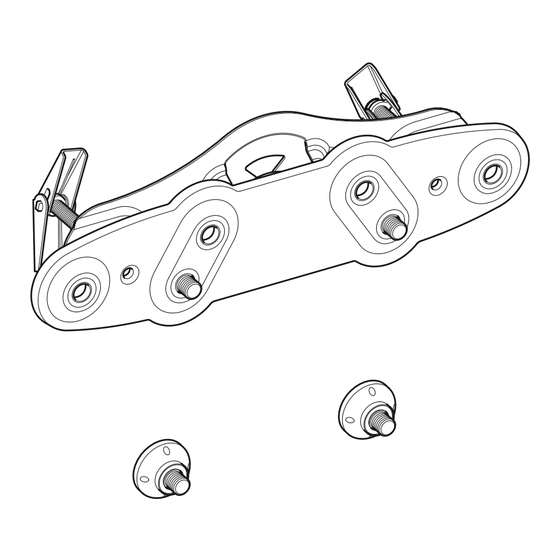

Wall FIxings Parts to attach to the wall (type of wall will determine which fixings you require). Tools Included Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which length and diameter of screws fits your TV. You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and M8. - Page 5 Fit Screen Hangers to TV Once you have established which screws you need for your TV you can attach the Adaptor (B) and Stand-offs (C) to the back of your TV. Typical recommended examples shown are for fixings with the TV spaced 20mm from the wall.
- Page 6 Marking Wall For Drill Points Decide the position of your wall bracket and using a pencil lightly draw a straight, level line approx 220mm long. approx 220mm Use the Wall Bracket (A) as a template and position it on your wall. Ensure the bracket lines up with the line you have previously drawn and mark the two DRILL POINTS with a pencil.
- Page 7 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. Solid Wall Dot & Dab 10mm (25/64") 10mm (25/64") 75mm (3") 108mm (4 ") Solid...
- Page 8 Metal Stud Plasterboard Wood Stud 18mm (3/4") 18mm (3/4") 18mm (3/4") 40mm (1 ") 9/16 MIN gap 3.5mm (1/8") (9/64") Remove dust from holes 75mm (3") Ensure hole is in the middle of the wood stud Use Drywall Fixings Use Drywall Fixings G &...
- Page 9 Hanging The TV Vertical Line Guide Marks Hanger Guide Tabs Rotate your TV so that the guide marks on the hanger are vertical. Next slide your TV down so that the hanger goes between the two guide tabs on the wall bracket. Ensure the hanger is fully engaged and rotate clockwise until your TV is level.
- Page 10 Alternative Hanger Configurations Alternative Wall spacings of 20mm, 30mm & 40mm Wall Space can be achieved using the spacer / screw combinations listed in this section. 20mm Wall Space (as shown in section 4) 30mm Wall Space 40mm Wall Space Top Fixings Top Fixings Top Fixings...
