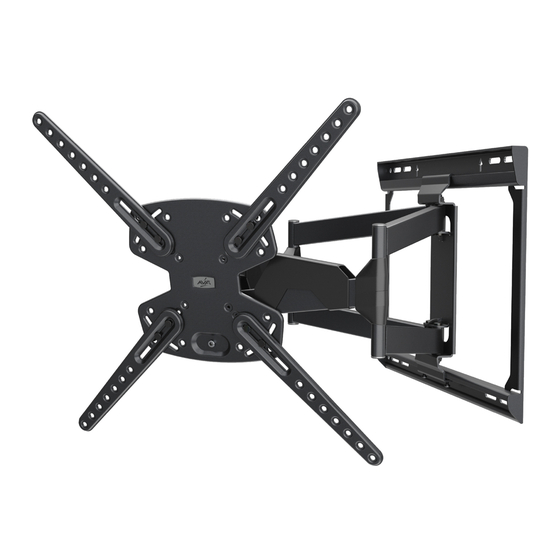

471612 Rev00
Please read these instructions thoroughly before installation.
80kg
176lb
If you have any questions or need
spare parts don't worry, we're happy to help.
Customer Helpline
Online Support
www.avfgroup.com/support
0333 320 0463
Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Related Manuals for AVF Group 471612
Summary of Contents for AVF Group 471612
- Page 1 If you have any questions or need spare parts don’t worry, we’re happy to help. Customer Helpline Online Support www.avfgroup.com/support 0333 320 0463 Helpine Open Mon to Thurs 9am - 5pm, Fri 9am - 4pm AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Warranty Information
WARRANTY INFORMATION 10 YEAR WARRANTY AVF warrants that the product is free from defects in material and workmanship, as long as the product is owned by the original consumer purchaser. If, during the stated warranty of this product, it proves to be defective, AVF will remedy the defect by either repairing or replacing the defective part or, replacing the entire product. - Page 3 Index Measure the TV fixing holes Preparing the TV Mounting Plate Fitting the TV Mounting Plate Marking Wall for Drill Points Fitting the Wall Plate Hanging the Mount Arm Connecting the TV Lateral Shift (Optional) Cable Management Adjust or Lock Tilt (optional) TV Levelling (optional) Suitable Wall Types Solid Wall...
- Page 4 Parts Included...
-
Page 5: You Will Need
TV Fixings M4’s M6’s M8’s 45mm 25mm 16mm You will need Stud Finder 13mm Ø5mm (13/64”) Ø12mm (15/32”) Wood Masonry... - Page 6 Measure the TV fixing holes 75 - 600mm 75 - 400mm This product fits fixing holes up to 600 x 400mm (MAX). Determine which diameter TV Screws fit your TV and put them to one side. M4, M6 or M8 We will select the correct length later.
- Page 7 Preparing the TV Mounting Plate Before you can attach the TV mounting plate to your TV you need to remove the plate from your wall mount. TV Mounting Plate Level Lock Screw Remove the Level Lock Screw and Washers and safely keep for step Remove the TV Mounting Plate.
- Page 8 Use the option that fits your TV OPTION 1 OPTION 2 X 300mm x Y 100mm X 600mm x Y 100mm X 75mm x Y 75mm X 300mm x Y 200mm X 600mm x Y 200mm X 100mm x Y 100mm X 300mm x Y 300mm X 600mm x Y 300mm X 100mm x Y 200mm...
- Page 9 OPTION 2 If using Option 2 you need to remove the four VESA Adaptors. Keep the adaptors and fixings in a safe place in case they are needed in the future. 75mm 100mm 200mm...
- Page 10 Fitting the TV Mounting Plate No Spacers Spacers For TVs with flat / unobstructed back. For TVs with irregular / obstructed back. WARNING Loosen the Thumb Screws and adjust the VESA Adaptors to fit the holes on the back of your TV. You can use any hole on the adaptors. The TV Mounting Plate must be level and vertically centred on the back of your TV.
- Page 11 Attach the mounting plate to the back of your TV using suitable screw, reducer and spacer combinations. If required Make sure the TV Mounting Plate is still level and vertically centred on the back of your TV. Tighten the Thumb Screws. If your TV has an irregular/obstructed back or if you have any issues fitting to the back of your TV with the supplied screws, please call the customer services helpline.
- Page 12 Marking Wall for Drill Points For this step you will need your Wall Marking Template WT. To determine the exact position for your drill points use the Height Calculator app. Follow the link to the app shown on your Wall Marking Template. Before marking any drill points you will need to determine the wall type that you have, either Solid Wall or Wood Stud Wall.
- Page 13 If fixing to a wood stud wall you must place the drilling template so that the drilling holes are over two wood studs. If you want the centre of your TV in a different position to the Wall Plate Centre Line you can laterally shift the arms on the wall plate to ensure your TV is in the desired position.
- Page 16 Hanging the Mount Arm Tighten both screws to lock Mount Arm to Wall Plate.
- Page 17 Connecting the TV Reuse the Level Lock Screw saved in step 2. When the TV is level, ensure the knob is fully tightened. To remove the TV, reverse this procedure.
- Page 18 Lateral Shift (Optional) The position you have chosen for your TV might not be central between the wood studs, or you may have to avoid services in the wall. In this case you can laterally shift the arms of the mount so the TV is exactly where you want it.
- Page 19 Cable Management Snap ON-OFF Covers...
- Page 20 Adjust or Lock Tilt (optional) Adjust screws to achieve perfect tilt resistance if required. You must adjust both screws equally. You can also lock the tilt if required. TV Levelling (optional) Loosen the Level Lock Screw, adjust your TV until it is level, then re-tighten the screw.
