JML8401

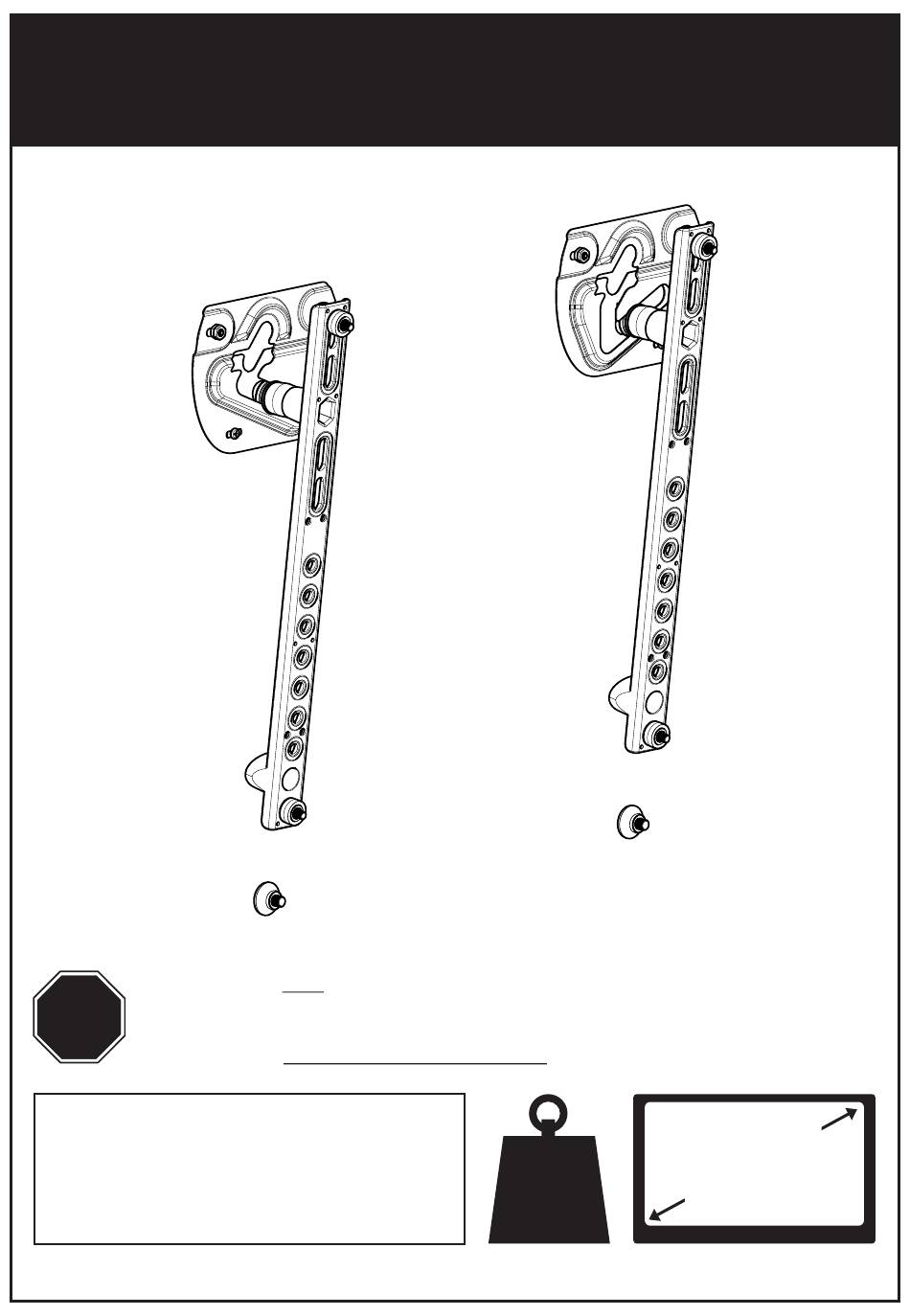

Leaflet No. 463460
rev02
Read through
ALL
instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services helpline before returning this product to
the store. See jl.avfgroup.com/p/jml8401 for more information.
80"
CUSTOMER SERVICES HELP LINE NUMBER:
121lbs
01952 670009
203cm
55kg
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF Group JML8401
Summary of Contents for AVF Group JML8401
- Page 1 If you have any questions about this product or issues with installation STOP contact the customer services helpline before returning this product to the store. See jl.avfgroup.com/p/jml8401 for more information. 80" CUSTOMER SERVICES HELP LINE NUMBER: 121lbs 01952 670009 203cm 55kg AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
- Page 2 Boxed Parts You will not need all these parts, so expect there to be some left over depending upon the specification of your TV. - x2 - x2 Hanger Nyloc Nut - x2 Stand-off - x2 - x1 - x1 - x2 Tilt Bracket LH Wall Bracket...
-
Page 3: Tools Required
Tools Required Determine Correct TV Screw Size Choose from the TV Fixings selection. You need to determine which length and diameter of screws fits your TV. To determine the correct screw diameter, try screwing (G ), (G ), (G ) & (G ) into one of the fixing holes on the back of the screen until you find the one that fits. - Page 4 Flat Position You will only need to follow steps 4 to 11 if you have chosen to have your TV in a flat position Fit Screen Hangers To TV Once you have established which screws you need for your TV, you can attach the Hangers (C) and Stand-offs (D) to the back of your TV.
- Page 5 Assemble Positioning Template The horizontal part of the positioning template is used to mark out where you need to drill the mounting holes on your wall. The vertical part is just a guide to allow you to see how high up the wall your TV will be to help you find the perfect position for viewing your screen.
- Page 6 Marking Wall For Drill Points Use your template to mark two points on the wall that correspond with the top fixing centres of your TV. Represents the centre of your TV. Pencil Mark Represents the centre of your TV. Central Hole Drill points Next, use the Wall Brackets (A) and (B) as a template and position it over one of the PENCIL MARKS you...
- Page 7 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm Remove (25/64") dust from holes Lubricate screw Ø5.5mm thread with soap 40mm (1 ")
- Page 8 Hanging The TV Guide Recess Present the Hangers (on the back of the TV) to the guide recess on the Wall Brackets. Slide down and across into place. Ensure both Hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative hanger configuration will be required...
- Page 9 Alternative Hanger Configurations Wall Space Alternative Wall spacings of 12mm, 20mm & 40mm can be achieved using the spacer / screw combinations listed in this section. 12mm Wall Space (as shown in section 4) 20mm Wall Space 40mm Wall Space Top Fixings Top Fixings Top Fixings...
- Page 10 Tilt Position You will only need to follow steps 12 to 20 if you have chosen to have your TV in a tilted position Choose Tilt You can choose between 2 different tilt positions, either 4 or 8°. ° 4 tilt °...
- Page 11 Assemble Positioning Template The horizontal part of the positioning template is used to mark out where you need to drill the mounting holes on your wall. The vertical part is just a guide to allow you to see how high up the wall your TV will be to help you find the perfect position for viewing your screen.
- Page 12 Fit Tilt Brackets to TV Once you have established which screws you need for your TV you can attach Tilt brackets (W) to the back of your TV. Example shown below is only for TV’s with a flat back. If your TV has a curved back/obstructions or you require more space for cables and to improve access and ventilation to the back of your TV you will need to add spacers (E1), see section 20.
- Page 13 Marking Wall For Drill Points Using the marks on the top row that you made in step 14 make the same marks on the bottom row and use these to mark two points for drilling. Top Row Marks Bottom Row Represents the centre of your TV.
- Page 14 Install Wall Fixings Use the correct fixings for your wall type. Mixing fixing types may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. 75mm (3") Ø10mm Remove (25/64") dust from holes Lubricate screw Ø5.5mm thread with soap 40mm (1 ")
- Page 15 Hanging The TV Guide Recess Present the Hangers (on the back of the TV) to the guide recess on the Wall Brackets. Slide down and across into place. Ensure both Hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative hanger configuration will be required...
- Page 16 Alternative Hanger Configurations Alternative spacings can be achieved using the spacer / screw combinations shown in this section. No Spacer Combination 1 Spacer Combination 3 Spacer Combination (as shown in section 13) Top Fixings Top Fixings Top Fixings 1, 4, 7, 10 2, 5, 8, 11 3, 6, 9, 12 2, 3...
