JML8650
55kg
120lb

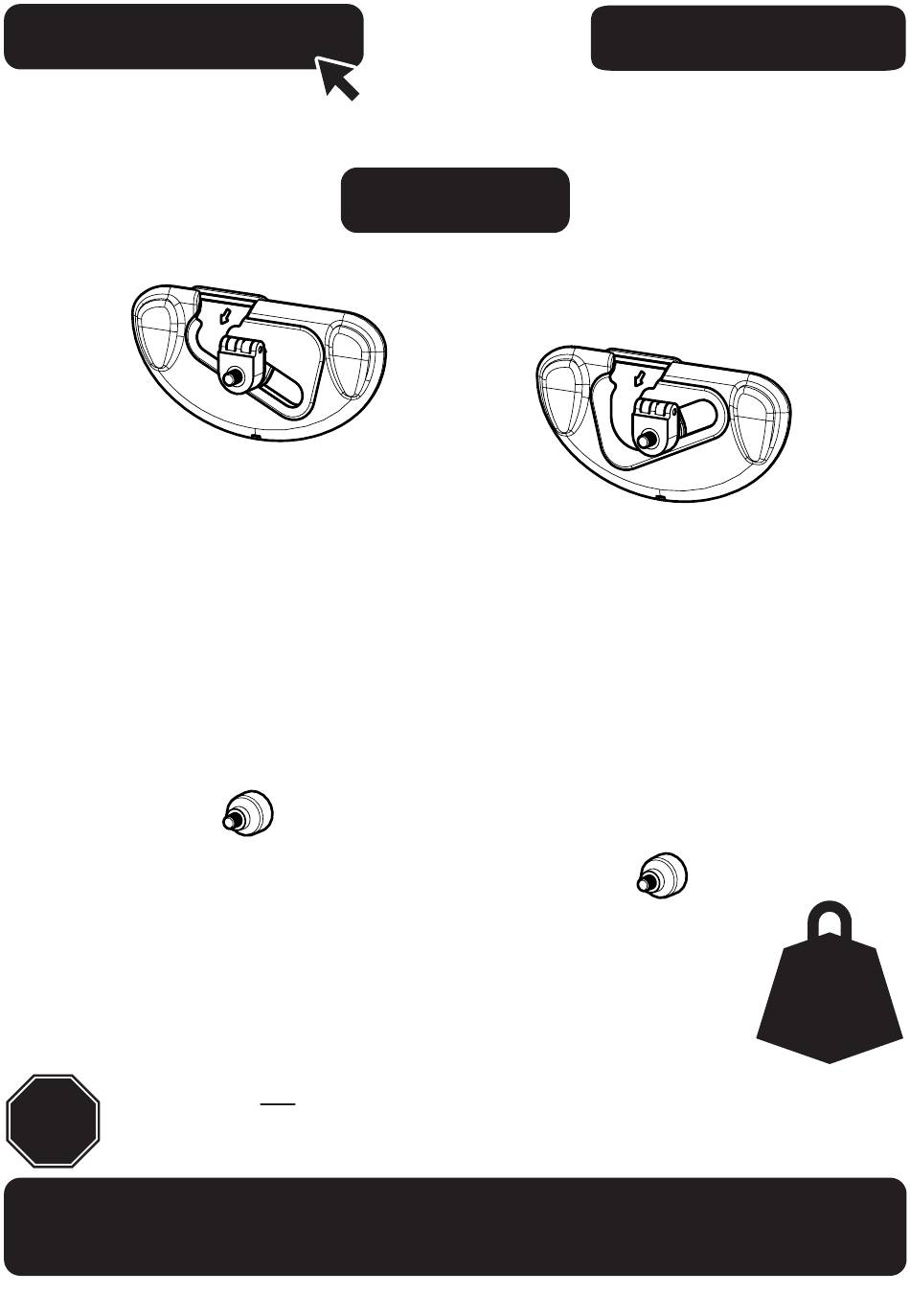

Read through ALL instructions before commencing installation.
STOP
If you have any questions about this product or issues with installation, contact
the customer services helpline before returning this product to the store.
0333 320 0463
CUSTOMER SERVICES HELPLINE NUMBER:
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Related Manuals for AVF Group JML8650
Summary of Contents for AVF Group JML8650
- Page 1 If you have any questions about this product or issues with installation, contact the customer services helpline before returning this product to the store. 0333 320 0463 CUSTOMER SERVICES HELPLINE NUMBER: AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview

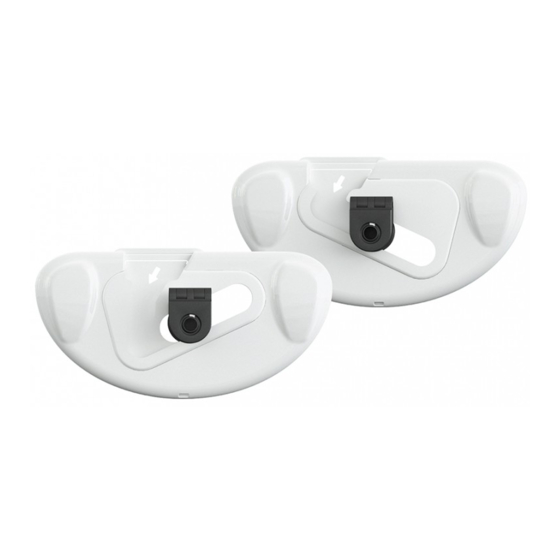

TV in the future. Fitting the Wall Bracket The JML8650 is suitable for attaching to plasterboard, wood and metal stud, brick, dot and dab, concrete, or any combination of these wall types. Establish which wall type you are mounting to and follow the corresponding steps. - Page 3 Index Measure the TV fixing holes Width and Height Fit Screen Hangers to TV Marking Wall for Drill Points Fitting the Wall Brackets Hanging the TV Retain all packaging in case the product needs to be returned. Contents may vary from photography / illustrations. You will not need all these parts, so expect there to be some left over depending upon the specification of your TV.
- Page 4 Boxed Parts...
- Page 5 TV Screws, Reducers and Spacers M4’s M6’s M8’s 55mm 40mm 20mm...
- Page 6 Measure the TV fixing holes Width and Height 200mm to infinity 100mm to infinity If width is less than 200mm or height less than 100mm STOP installation now and contact the customer helpline. Determine which diameter TV Screws fit your TV and put them to one side. M4, M6 or M8 We will select the correct length later.
- Page 7 Fit Screen Hangers to TV Select the correct length TV screw. If required You may need to use Spacers E1 or E2 if the screws are too long or the back of your TV is not flat. You can also use longer screws and the spacers to help avoid cabling or plug sockets on your wall.
- Page 8 Marking Wall for Drill Points Assemble the Positioning Template. Determine Bracket Holes Centres. Lay the template on the back of the TV and follow the instructions below. Place the top row of holes on template U1 over hangers C. Mark off the top fixing centres. The centre line of the template U2 represents the centre of your TV.
- Page 9 Marking the Wall. Before marking the wall, determine the wall type that you have (i.e. Solid Wall/ Dot & Dab/Plasterboard/Wood Stud/Metal Stud). Ensure the drilling area is free from mains services (Gas/Electric/Water). Represents the top of your TV. Use your template to mark two points on the wall that correspond with the top Represents the...
-
Page 10: Fitting The Wall Brackets
Fitting the Wall Brackets Remove the Wall Bracket Covers. Wall Bracket Covers A and B are removed in the same way. Take care... -
Page 11: Solid Wall
This product is designed to be fitted to many different types of wall. Identify your wall type and follow the relevant instruction. Make sure you use the correct fixings for your wall. Solid Wall 10mm (25/64") 75mm (3") 5.5mm (7/32") 40mm (1 ") 9/16... - Page 12 Dot and Dab 10mm (25/64") 108mm (4 ") Remove Dust from Holes. 40mm (1 ") 9/16 MAX gap. If gap is above 40mm (1 ") use 9/16 plasterboard fixing method. If you have trouble fitting P you can drill a 3mm pilot hole. Self drilling Lubricate screw thread with soap.
- Page 13 Plasterboard 18mm (3/4") Remove Dust from Holes. 40mm (1 ") 9/16 MAX gap. If you have trouble fitting P you can drill a 3mm pilot hole. Self drilling Lubricate screw thread with soap. DO NOT overtighten screws. Tighten screws by hand only...
- Page 14 Wood Stud 18mm (3/4") (1/8") 75mm (3") Ensure hole is in the middle of the wood stud. Use Plasterboard fixing H Only one fixing will be in the wood stud. The other fixings will be in plasterboard (see Plasterboard installation instruction).
- Page 15 Metal Stud 18mm (3/4") 3.5mm (9/64") Use Plasterboard fixing H Only one fixing will be in the metal stud. The other fixings will be in plasterboard (see Plasterboard installation instruction). If you have trouble fitting P Self drilling you can drill a 3mm pilot hole. DO NOT overtighten screws.
- Page 16 Replace the Wall Bracket Covers. On the Wall Bracket Covers A and B there are three retaining tabs. These locate onto three retaining lips on the Wall Brackets A and B and lock the Wall Bracket Covers in position. Retaining lip Retaining lip Retaining tab Retaining tab...
- Page 17 Hanging the TV Make sure Screen Hangers and C are fully closed before hanging the TV. Line must be horizontal before attempting to hang the TV. Check Hangers C and C are on the correct side before hanging TV. Back of TV...
- Page 18 Present Hangers C and C (on the back of the TV) to the opening on Brackets A and B. Slide down and across into place. Ensure both Hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative Hanger configuration will be required (see Section 2).
- Page 19 View “through” TV from the front. DO NOT release TV until it is secure and level. Removing the TV To remove the TV reverse the movements as shown above.
-
Page 20: Cable Access
Removing the Wall Bracket Covers Should you want to remove the Wall Bracket Covers please follow the steps below. Keep screwdriver level as you pull downwards Take care Cable Access For easy cable access, gently pull the bottom of the TV away from the wall using two hands. Hold the TV in position while accessing cables.
