UG-1272

ACQUIRING DATA

RUNNING THE APPLICATIONS WAVETOOL

To start the Applications Wavetool, navigate to the Start
menu > Analog Devices > ApplicationsWaveTool and click
ApplicationsWavetool.

USB UART CONNECTION

To establish the connection, follow the menu path Connection >
Connect > UART Bridge.

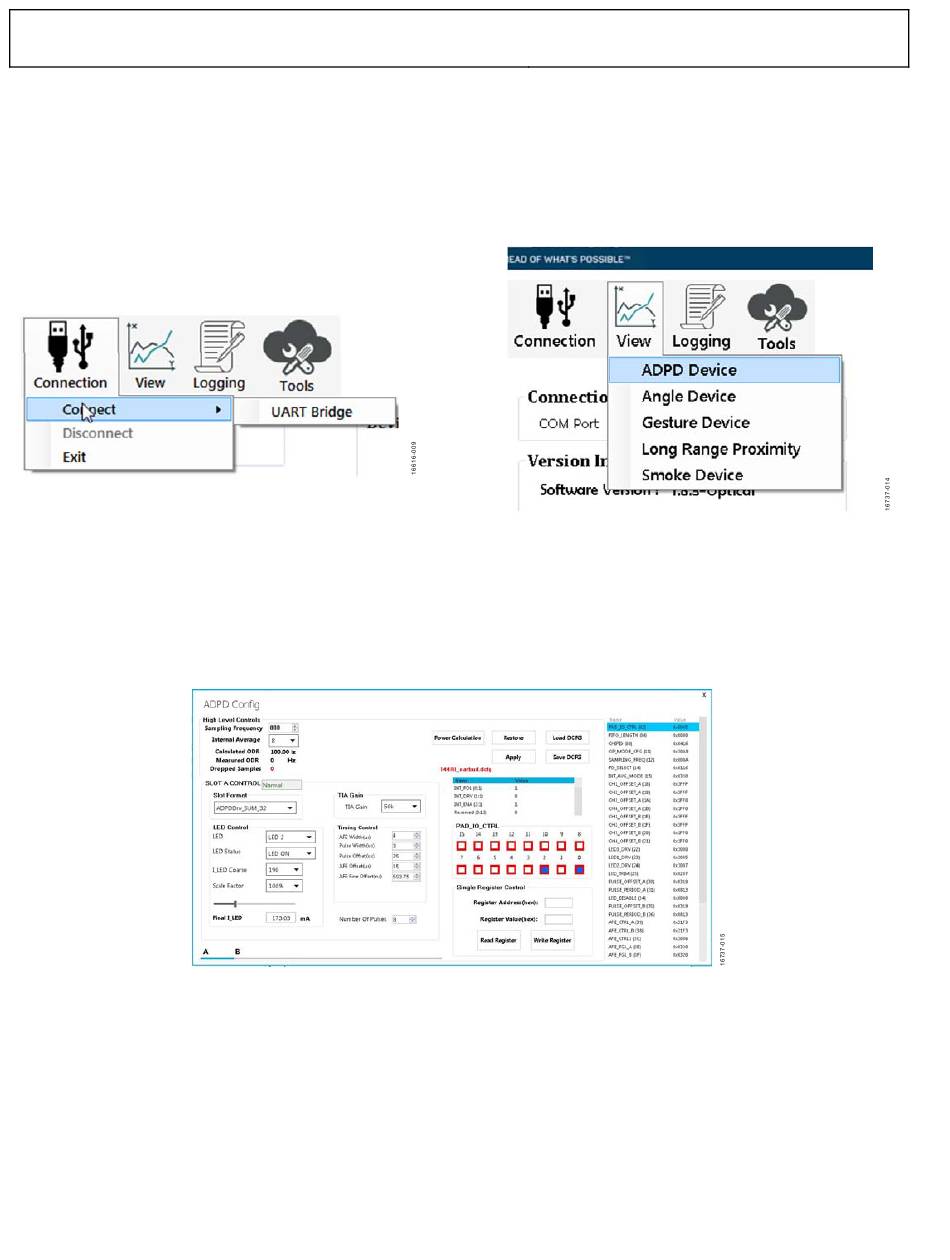

Figure 5. UART Connect
Select the proper COM port to connect the Applications Wavetool
to the device. If connection via Bluetooth® is required, or if
there are any other connection issues, refer to the Applications
Wavetool user guide that is provided in the software package
download.
EVAL-ADPD144RIZ-SF

SELECTING THE PROPER VIEW

The ADPD144RI
measurements. Click the ADPD Device data view (see Figure 6)
to open a window that allows the user to run the
device and collect data (see Figure 7).

LOAD CONFIGURATION

In the upper right corner of the data view window, click ADPD
Config to open the ADPD Config window shown in Figure 7.
Click Load DCFG to choose a configuration file. For PPG
measurements, choose the 144RI_earbud.dcfg configuration file.
Figure 7. ADPD Config View
Rev. 0 | Page 4 of 10
User Guide
is intended for nonwrist-based PPG
Figure 6. Click ADPD Device
ADPD144RI
