ACQUIRING DATA

The EVAL-ADPD188GGZ is intended for wrist-based PPG

measurements. Select the ADPD Device data view (see Figure 10).

This view opens a window that allows the user to run the

ADPD188GG

device and collect data (see Figure 12).

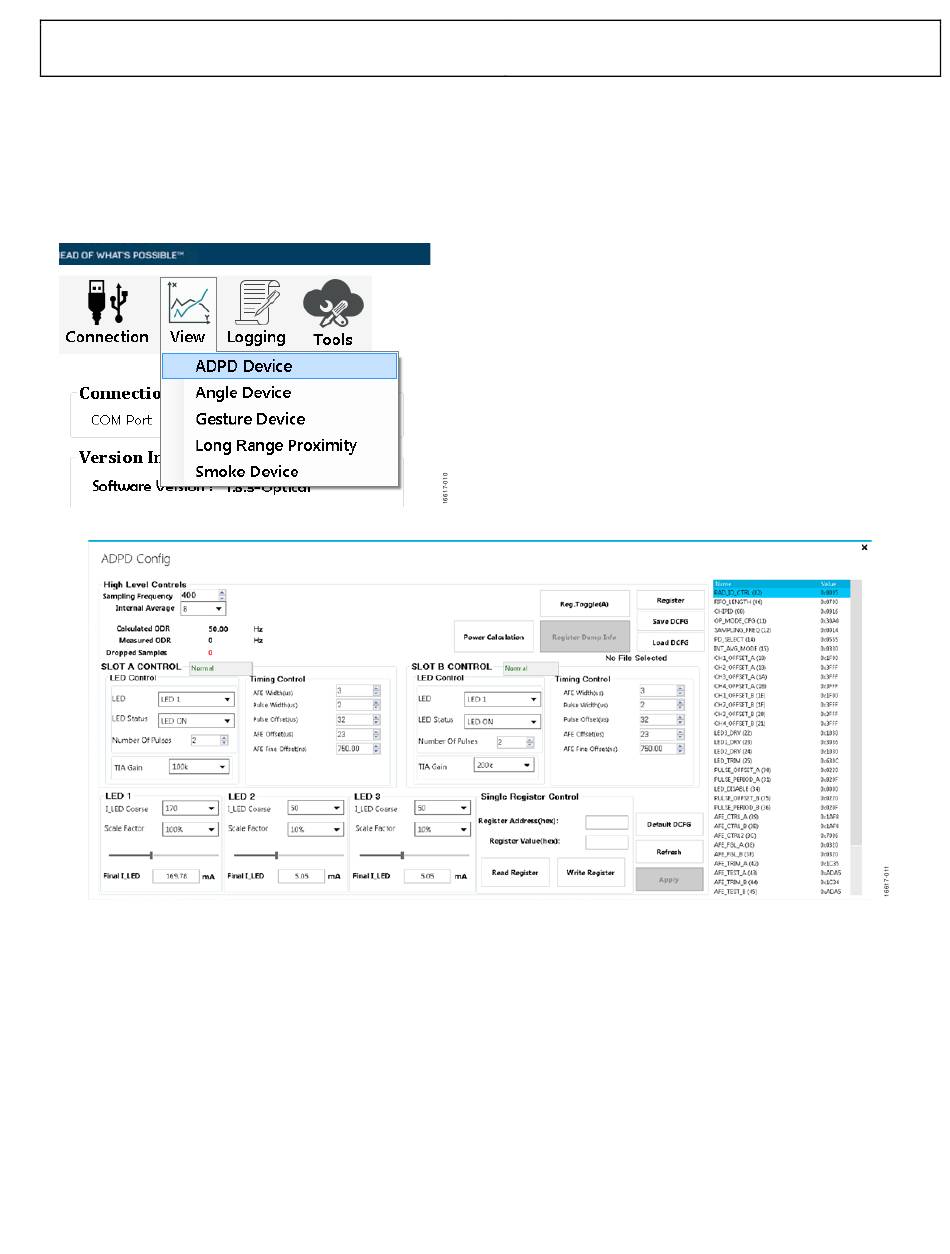

Figure 10. Select ADPD Device

User Guide

Figure 11. ADPD Config View

In the upper right corner of the data view window, click the

ADPD Config button to open the ADPD Config view (see

Figure 11). Click Load DCFG to select a configuration file.

For PPG measurements, select the ADPD188Normal.dcfg

configuration file.
