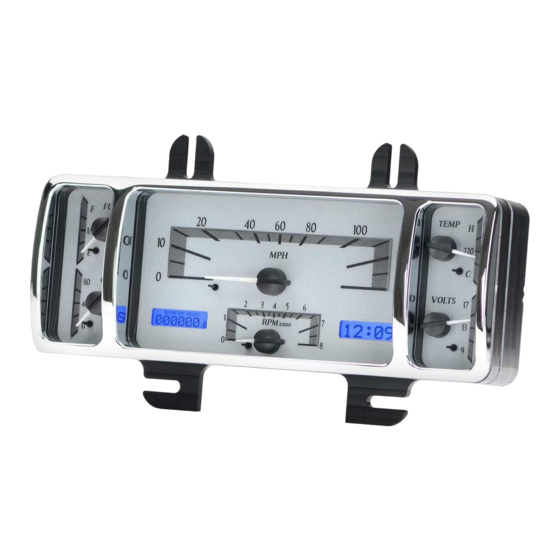

VHX-40F
Dakota Digital VHX Instrument Installation
For 1940 Ford Car

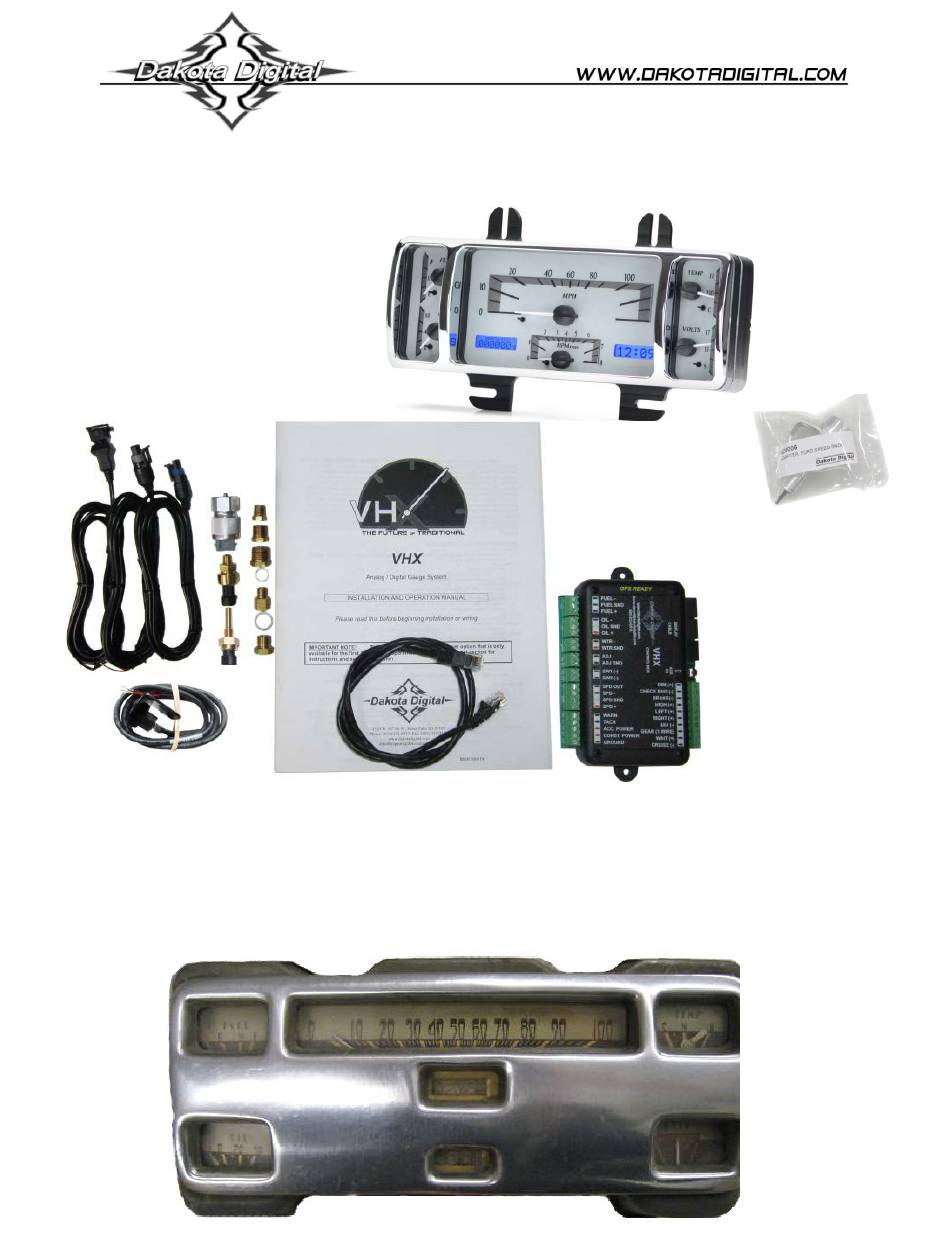

Your new VHX-40F kit includes:
VHX Display
Universal Sender Pack
Installation Manuals
Ford Adapter
Control Box
Switch Assembly
CAT5 Cable
Installation
1. Remove the stock cluster from the dash and be sure to retain all hardware for reassembly.
Manual # 650403B
Advertisement
Table of Contents
Related Manuals for Dakota Digital VHX-40F
Summary of Contents for Dakota Digital VHX-40F
- Page 1 VHX-40F Dakota Digital VHX Instrument Installation For 1940 Ford Car Your new VHX-40F kit includes: VHX Display Universal Sender Pack Installation Manuals Ford Adapter Control Box Switch Assembly CAT5 Cable Installation 1. Remove the stock cluster from the dash and be sure to retain all hardware for reassembly.
- Page 2 2. Remove the protective tape from the clear lens. 3. Connect the CAT5 cable to the system as the VHX cluster is installed into the dash. Watch carefully so you don’t scratch or damage the lens or bezel, and take care when routing the CAT5 cable to the control box location.
