ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and
This user's guide describes the characteristics, operation, and use of the ADS1015EVM and
ADS1115EVM, both by themselves and as part of the ADS1015EVM-PDK or ADS1115EVM-PDK. These
evaluation modules (EVMs) are evaluation boards for the ADS1115, a 16-bit multi-channel, delta-sigma
analog-to-digital converter (ADC), and the ADS1015, a 12-bit version of the ADS1115. The EVM allows
evaluation of all aspects of the ADS1015 or ADS1115 device. Complete circuit descriptions, schematic
diagrams, and bills of material are included in this document.
The following related documents are available through the Texas Instruments web site at
http://www.ti.com.
ADCPro is a trademark of Texas Instruments.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
2
I
C is a trademark of NXP Semiconductors.
All other trademarks are the property of their respective owners.
SBAU157B – August 2009 – Revised May 2011
Submit Documentation Feedback

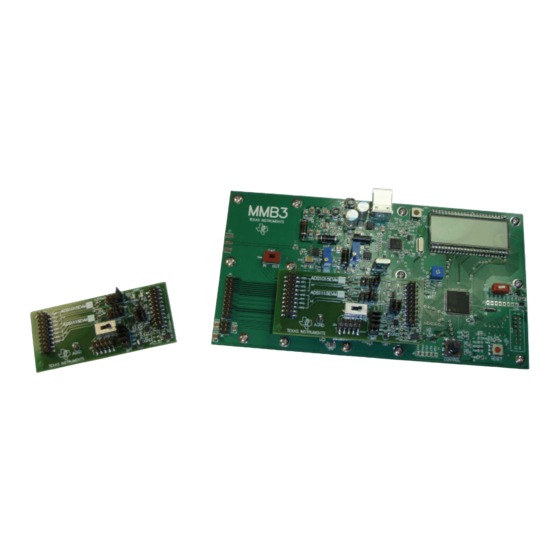

ADS1115EVM (Left) and ADS1115EVM-PDK (Right)
EVM-Compatible Device Data Sheets
Device
ADS1015
ADS1115
SN74LVC2G125
PCA9306
ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK
Copyright © 2009–2011, Texas Instruments Incorporated
SBAU157B – August 2009 – Revised May 2011
ADS1115EVM-PDK
Literature Number
SBAS473
SBAS444
SCES204M
SCPS113I
User's Guide
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments ADS1015EVM
Summary of Contents for Texas Instruments ADS1015EVM
- Page 1 ADS1115EVM-PDK ADS1115EVM (Left) and ADS1115EVM-PDK (Right) This user's guide describes the characteristics, operation, and use of the ADS1015EVM and ADS1115EVM, both by themselves and as part of the ADS1015EVM-PDK or ADS1115EVM-PDK. These evaluation modules (EVMs) are evaluation boards for the ADS1115, a 16-bit multi-channel, delta-sigma analog-to-digital converter (ADC), and the ADS1015, a 12-bit version of the ADS1115.
-
Page 2: Table Of Contents
J2 Configuration: Power-Supply Input ..................JMP1 Configuration: Power Options ......................List of Switches ............... ADS1015EVM/ADS1115EVM Bill of Materials SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 3: Evm Overview
Complete control of board settings • Easily expandable with new analysis plug-in tools from Texas Instruments For use with a computer, the ADS1015EVM-PDK or ADS1115EVM-PDK is available. This kit combines the ADS1015/ADS1115EVM board with the MSP430-based MMB3 motherboard, and includes ADCPro™ software for evaluation. -
Page 4: Digital Interface
Unused — None J3.16 High C clock J3.18 DGND DGND In/Out None Digital ground J3.20 High C data SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 5: Power Supplies
5-6K Interface HPA-MCU Interface boards available from Texas Instruments, or the MMB3 if purchased as part of the ADS1115EVM-PDK. For a list of compatible interface and/or accessory boards for the EVM or the ADS1115, see the relevant product folder on the TI web site. -
Page 6: Ads1115Evm-Pdk Kit Operation
Step 5. Connect the ADS1115EVM-PDK to the computer with a USB cable. Step 6. Run the ADCPro software. Each task is described in the subsequent sections of this document. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 7: Virtual Com Port Installer
Setup and follow the on-screen prompts. You may be notified that the driver is not digitally signed. If this occurs, select Continue Anyway and proceed. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 8: Mmb3 Switch Locations
• Set the DAC switch (SW5) to the OUT position (to the right). Figure 4. MMB3 Switch Locations SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 9: Connecting Ads1115Evm To Mmb3
Step 4. Set the jumpers and switches on the ADS1115EVM as shown in Figure 1 (note that these settings are the factory-configured settings for the EVM). SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 10: Mmb3 Block Diagram
MMB3 except as part of an EVM kit. For schematics or other information about the MMB3, contact Texas Instruments. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 11: Adcpro Software Start-Up Display Window
Step 1. Start the software by selecting ADCPro from the Windows Start menu. The screen in Figure 7 appears. Figure 7. ADCPro Software Start-up Display Window SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 12: Ads1115Evm-Pdk Plug-In Display Window
You will see a series of messages in the status area indicating this action. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 13: Connection Timeout
MMB3. If the firmware needs to be loaded, you will see a screen as shown in Figure Figure 10. Firmware Download Message Box SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 14: Firmware Download Progress Indicator
MMB3, so this operation should only need to be performed once. Figure 11. Firmware Download Progress Indicator SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 15: Evaluating Performance With The Adcpro Software
Settings on the ADS1115EVM correspond to settings described in the ADS1115 product data sheet (available for download at www.ti.com) for details. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... - Page 16 The ADS1015EVM-PDK allows the Data Rate control to set the data rate to 128, 256, 500, 920, 1600, 2500, or 3300 SPS. The MMB3 does not have the capability to send every sample at data rates above 920 SPS;...
-
Page 17: Device 1 Tab
13, is the primary tab that controls all features of the ADS1115. Device 1 refers to U1 on the ADS1115EVM. Figure 13. Device 1 Tab SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... - Page 18 This tab is identical to the Device 1 tab, but controls the settings for Device 2, which is U2 on the ADS1115EVM. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated...
-
Page 19: About Tab
The Notes indicator will show manufacturing information about the EVM that is stored in the EVM EEPROM, and may show relevant notes about the plug-in or firmware code, if there are any. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 20: Progress Bar While Collecting Data
For more information on testing analog-to-digital converters in general and using ADCPro and Test plug-ins, refer to the ADCPro User Guide. SBAU157B – August 2009 – Revised May 2011 ADS1015EVM, ADS1115EVM, ADS1015EVM-PDK, and ADS1115EVM-PDK Submit Documentation Feedback Copyright © 2009–2011, Texas Instruments Incorporated... -
Page 21: Schematics And Layout
If ADCPro stops responding while the ADS1115EVM-PDK is connected, try unplugging the USB cable from the PDK. Unload and reload the plug-in before reapplying power to the PDK. Schematics and Layout Schematics for the ADS1015EVM and ADS1115EVM are appended to this user's guide. The bill of materials is provided in Table SBAU157B –... -
Page 22: Ads1015Evm/Ads1115Evm Bill Of Materials
Hazardous Substances (RoHS) Directive. Some part numbers may be either leaded or RoHS. Verify that purchased components are RoHS-compliant. (For more information about TI's position on RoHS compliance, see the TI web site.) Table 6. ADS1015EVM/ADS1115EVM Bill of Materials Item No. Value Ref Des Description... - Page 23 SCL1 SCL2 PCA9306DCT 100K 0.1uF HEADER-3X2_SPECIAL MCP_24AA256-I/ST PRECISION ANALOG PRODUCTS HIGH-PERFORMANCE ANALOG DIVISION SEMICONDUCTOR GROUP 5411 EAST WILLIAMS BOULEVARD, TUCSON, AZ 85711 USA ADS1015EVM TITLE ENGINEER RICK DOWNS ADS1115EVM DRAWN BY BOB BENJAMIN DOCUMENT CONTROL NO. 6511174 SIZE DATE 6-Jul-2009...
- Page 24 Evaluation Board/Kit Important Notice Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards.
- Page 25 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
