Introduction
The depth-adapter kit addresses the frustration of having
components that are too long or too short for your current server
rack. Instead of having to purchase new components or server racks,
you can use the RDA2U to increase or decrease the mounting depth
of your server rack rails by 4 in. (10 cm).

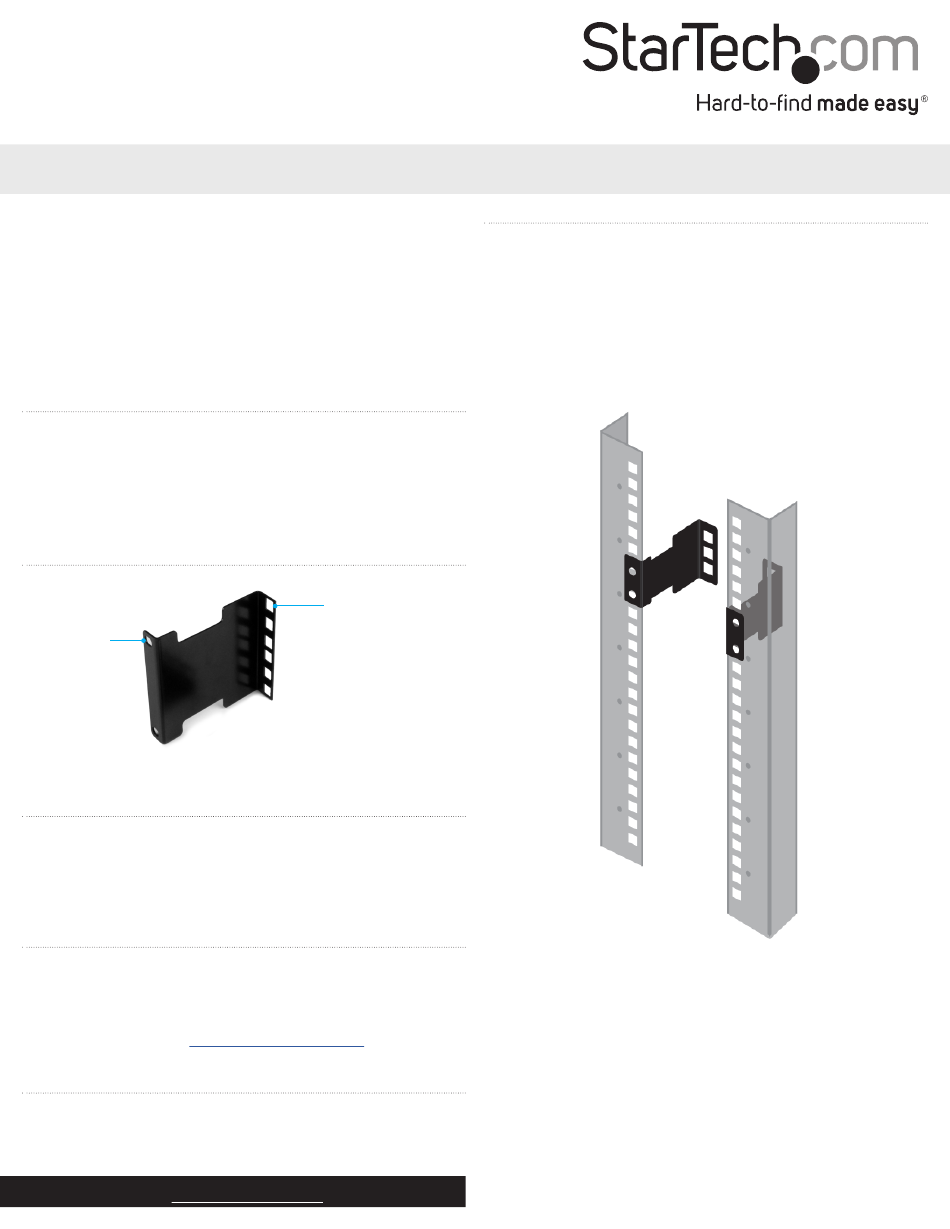

Product diagram
Rack-mounting
hole
Package contents
• 2 x depth-adapter brackets
• 4 x 10-32 x 5/8 screws
• 4 x 10-32 cage nuts
• 1 x instruction manual
System requirements
• Server rack
• Phillips head screwdriver
System requirements are subject to change. For the latest
requirements, please visit www.StarTech.com/RDA2U.
Technical specifications
The depth-adapter brackets use two units of your server rack and are
designed to support up to 20 lb. of weight.
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/RDA2U.
Equipment-mounting
hole
*actual product may vary from photos
Decrease the depth of your server rack
Note: When you install the brackets, make sure that the rack-
mounting holes are on the outside of the server rack.
1. Position one of the depth-adapter brackets so that the end with
the equipment-mounting holes extends into the server rack
(diagram 1).
2. Insert a 10-32 x 5/8 screw through each of the rack-mounting
holes and into the server rack.
3. Repeat steps 1 and 2 for the second bracket.
diagram 1
Note: The diagram illustrates the 1U depth-adapter bracket.
Manual Revision: 04/19/2016
