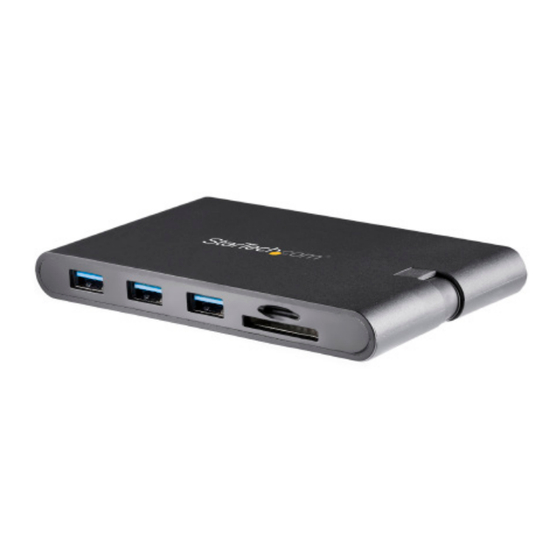

USB-C™ Multiport Adapter
4K HDMI
DKT30CHVSCPD
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/DKT30CHVSCPD.
Manual Revision: 05/10/2022
|
VGA | 3x USB 3.0 | SD™ | PD |
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com DKT30CHVSCPD
Summary of Contents for StarTech.com DKT30CHVSCPD
- Page 1 4K HDMI VGA | 3x USB 3.0 | SD™ | PD | DKT30CHVSCPD *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View ..............................1 Rear View ..............................1 Connector View............................2 Product Information ................3 Package Contents ............................. 3 Requirements ............................. 3 Powering the Multiport Adapter ............4 USB Power Delivery 3.0 ........................... 4 Connecting the Multiport Adapter .............5 USB-A Ports (Front) ........................... - Page 4 Product Support ..................10 Technical Support ............................. 10 Warranty Information ..........................10 Limitation of Liability ..........................10 User Manual...
-
Page 5: Product Diagram
Product Diagram Front View Micro SD Card Slot USB-A SD Card Ports Slot Rear View HDMI RJ45 Port USB-C VGA Port Port Port (PD Charging) User Manual... -
Page 6: Connector View
Connector View USB-C Connector (Host) User Manual... -
Page 7: Product Information
Display requirements are optional and will depend on the port configuration of the host laptop. • 4K Compatible Display • HDMI Compatible Display • VGA Compatible Display Operating Systems: Operating System (OS) requirements are subject to change. For the latest requirements, please visit www.startech.com/DKT30CHVSCPD. User Manual... -
Page 8: Powering The Multiport Adapter
Powering the Multiport Adapter USB Power Delivery 3.0 Fast Role Swap: A Fast Role Swap function is available when using Power Delivery 3.0. This function prevents USB data disruption when switching power sources (bus power to USB-C power adapter or USB-C power adapter to bus power). For this function to work, the host laptop must also support Power Delivery 3.0. -
Page 9: Connecting The Multiport Adapter
5. Eject the SD or Micro SD card(s). 6. Disconnect any USB peripherals. Connecting the Multiport Adapter USB-A Ports The USB-A Ports can be used as charging ports (e.g. cell phone, laptop, tablet, etc.), or to connect a USB storage device (e.g. Flash Drive) or other USB peripheral device (e.g. Keyboard, Mouse, etc.). -
Page 10: Rj45 Port (Back)
RJ45 Port 1. Connect a CAT5e/CAT6 cable to the RJ45 port on the Multiport Adapter. 2. Connect the CAT5e/CAT6 cable’s other RJ45 connector to an RJ45 port on a+ compatible Network Device. Inserting an SD Card 1. Insert an SD Card label side down into the SD Card Slot on the Multiport Adapter. Note: The host computer’s Operating System (OS) will automatically detect the SD Card and install the required driver software. -
Page 11: Physically Removing An Sd Card
Adapter), the Found New Hardware pop-up will appear. 2. On the Found New Hardware pop-up, click the Cancel button. 3. Using a web browser, navigate to www.startech.com/DKT30CHVSCPD. 4. On the Product page, click the Support tab located in the middle of the screen. -
Page 12: Video Resolution
Video Resolution HDMI Port • Max resolution 4096 x 2160 @ 30Hz VGA Port • Max resolution 1920 x 1200 @ 60Hz Configuring a Display Video output capabilities are dependent on the video card and hardware specifications of your connected Host computer. Note: Navigating to the Settings screen will vary depending on the operating system (OS) or operating system version running on the host laptop. -
Page 13: Troubleshooting
Make this My Main Display: • Select this checkbox to mark the current display as the main or primary display. When using the other display types the main display will either be extended (Extend desktop to this display) or Duplicated (Duplicate this display). Resolution: •... - Page 14 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
