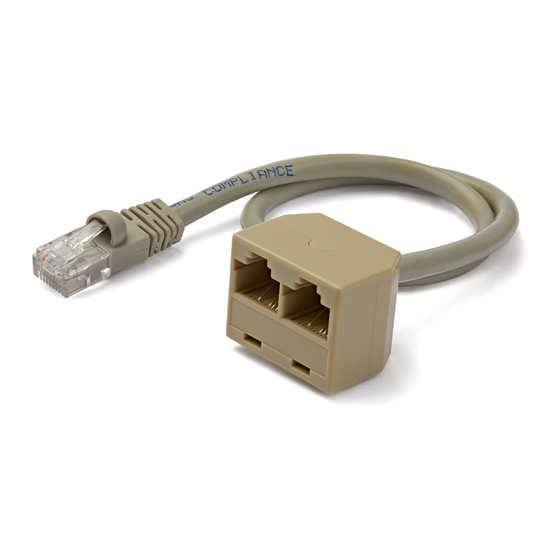

2-to-1 RJ45 Splitter Cable Adapter - F/M
Product Diagram (RJ45SPLITTER)
1
2
Component
1
RJ45 Connector
2
RJ45 Ports
Requirements
For the latest requirements, please visit
Network Devices x 2 (max 2)
CAT5 Cables x 2
Existing Network
Installing the Cable Adapter
Connect the RJ45 Connector on the Cable Adapter to an RJ45 port on a Network
1.
Device (Ethernet Patch Panel, Wall Outlet, etc.).
Note: The CAT5 Cable on the Cable Adapter combines the signals of 2 connections
over the one CAT5 Cable.
Connect a CAT5 Cable to the RJ45 Port on the Cable Adapter and the other side to an
2.
RJ45 port on a Network Device.
Repeat step 2 to connect a second Network Device to the Cable Adapter.
3.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Function
Connect the Cable Adapter to an existing
Network.
Allows you to connect up to 2 Network Devices
to an existing Network.
www.startech.com/RJ45SPLITTER

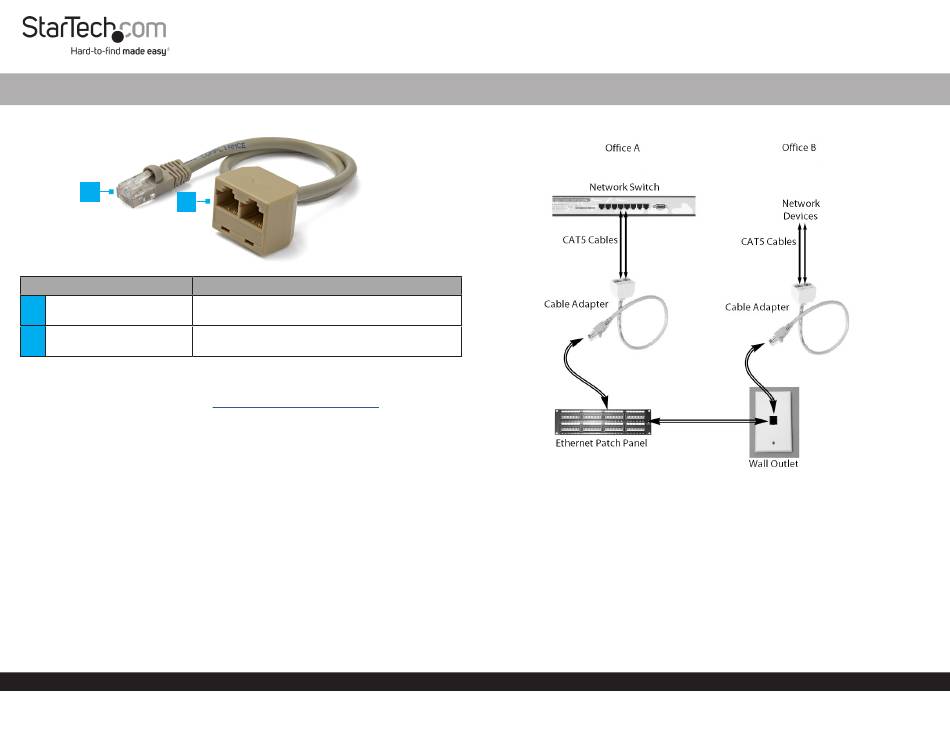

Connectivity Diagram
The Connectivity Diagram lays out the following scenario:
Scenario: A company has two offices (A and B). A single CAT5 Ethernet drop connects
Office B to the network. The company wants to put a network printer and wireless
access point in Office B. They would like to have a dedicated Ethernet connection for
each device back to the Network Switch in Office A.
Solution: By using the two Cable Adapters one at each location, the company can
combine two connections to the switch over the existing wiring at Office A and split
the signal back into two connections at Office B.
Quick-Start Guide
Manual Revision: May 25, 2020 4:41 PM
