USB 3.0 to DisplayPort™ External Video Adapter – 4K
USB 3.0 to HDMI® External Video Adapter – 4K
USB32DP4K / USB32HD4K
Note: Computer systems running Windows® 7 or higher will install software and
drivers automatically upon connecting the USB Display Adapter. If your Computer
systems is running a previous versions of Windows, please ensure the software has
been installed before the USB Display Adapter is connected (See Installation).
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/11/2014

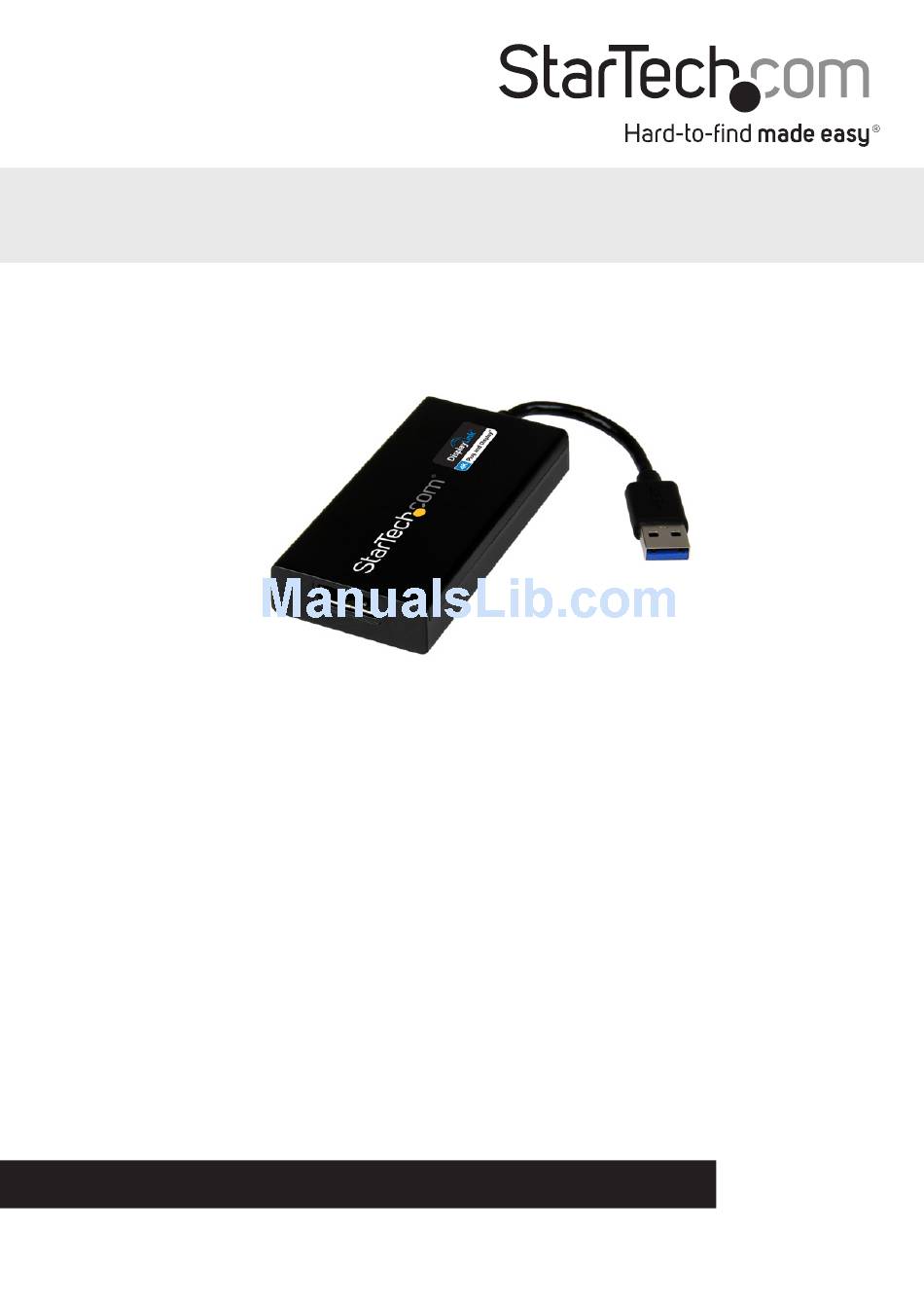

*USB32DP4K shown
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32DP4K
Summary of Contents for StarTech.com USB32DP4K
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/11/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows Installation ..........................2 Multiple USB Video Adapter Installation ..................3 Configuring the USB Video Adapter ............4 Windows® ..............................4 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Introduction Note: Connect a maximum of five USB32DP4K adapters on a single PC - See system requirements Packaging Contents • 1x USB 3.0 4K Display Adapter • 1x Software Installation Disc • 1x Instruction Manual System Requirements • DisplayPort-enabled Display (e.g. Monitor, Projector, Television) (for USB32DP4K) •... -
Page 5: Installation
Note: If your computer system is running Windows 7 or higher please proceed to step 4, as steps 1 - 3 are not required. 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. -
Page 6: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed; otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps up to the point of connecting the first USB Video Adapter. -
Page 7: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Windows® When devices are attached, an icon appears in the taskbar. This gives you access to the DisplayLink manager menu. 1. From the taskbar, click the Show hidden icons arrow to show all available icons. DisplayLink Manager 2. - Page 8 Extend When “Extend” is selected, the monitor attached to the USB Display Adapter displays an extension of the user’s active Windows desktop. The extra desktop area is a great productivity aid, allowing more applications or documents to be visible simultaneously. You can access applications on each monitor, by simply moving your curser, or dragging applications from one screen to another.
-
Page 9: Notebook Monitor Off
Extend To When selecting “Extend To, ” you can define the physical location of the monitor attached to the USB Display Adapter in relation to your primary monitor. Once the physical location has been defined, you can move your mouse curser from one screen to another in the logical location that the monitors are physically positioned. -
Page 10: Specifications
Specifications Audio Specification 5.1 Channel Surround (48Khz) AV Input USB 3.0 Max Resolution 4K (3840x2160) DisplayPort (USB32DP4K) AV Output HDMI (USB32HD4K) Chipset ID Displaylink DL5500 Color Black Enclosure Type Plastic Audio Windows® 7 (32/64 bit) Windows 8/8.1 *Aero 3D OS Compatibility... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
