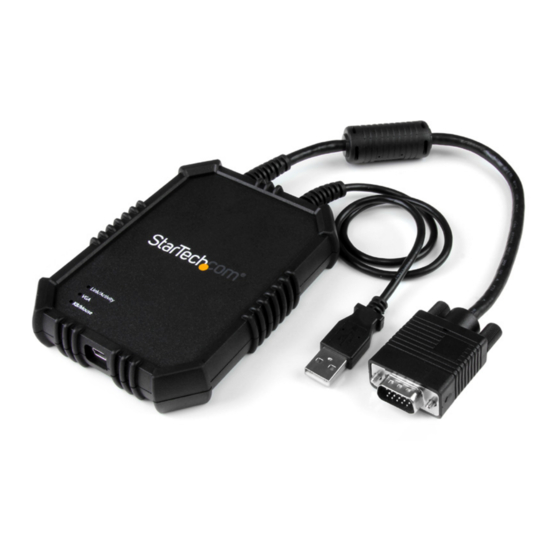

Rugged crash cart adapter
NOTECONS02X
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/NOTECONS02X.
Manual Revision: 09/10/2018
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOTECONS02X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for StarTech.com NOTECONS02X

Summary of Contents for StarTech.com NOTECONS02X

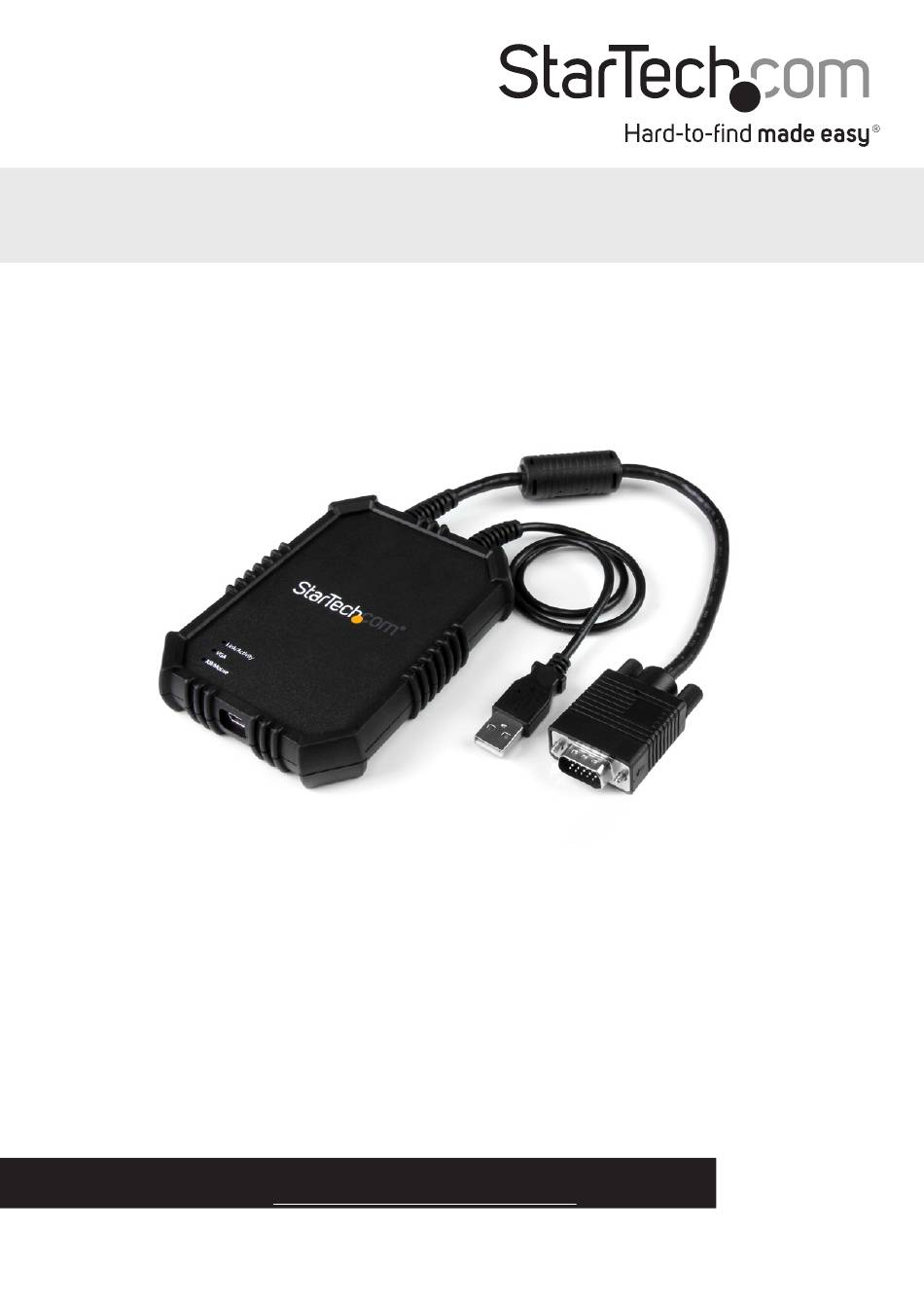

  • Page 1 Rugged crash cart adapter NOTECONS02X *actual product may vary from photos DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the latest information, technical specifications, and support for this product, please visit www.startech.com/NOTECONS02X.
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...

  • Page 3: Table Of Contents

    Table of contents Product diagram ..................1 Introduction ....................2 About the rugged crash cart adapter ....................2 Packaging contents ..........................2 System requirements ..........................2 Installation ....................3 Install the software on a laptop running Windows ............... 3 Install the software on a computer running Mac OS ..............3 Connect the crash cart adapter ......................
  • Page 4 Technical support ...................15 Warranty information ................15 Instruction manual...

  • Page 5: Product Diagram

    Product diagram Link and activity LED VGA LED Keyboard and mouse LED USB connector 15-pin VGA connector Instruction manual...

  • Page 6: Introduction

    Introduction About the rugged crash cart adapter You must install the provided software on the laptop to be able to use the crash cart adapter. You don’t need to make any changes to the server(s) being controlled. You don’t need to start or shut down the software before you unplug the crash cart adapter.

  • Page 7: Installation

    Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/NOTECONS02X. Installation Install the software on a laptop running Windows 1. Disconnect the crash cart adapter and cancel any Add New Hardware dialog windows. 2. Insert the provided USB software key and run the setup.exe installation program.

  • Page 8: Connect The Crash Cart Adapter

    For DVI-I (analog) computer systems, use a DVI to VGA cable adapter (for example, StarTech.com ID DVIVGAMF). About the LED indicators If none of the LED indicators are illuminated, it means that the USB crash cart adapter isn’t receiving power from either of the USB connections. When the USB crash cart adapter is being operated in normal conditions, either one of the USB ports can provide enough power to operate the crash cart adapter.

  • Page 9: Server Vga Led

    Blinks for a brief The emulated mouse is moving or an emulated key is being time pressed. Blinking A problem with the USB connection to the server is occurring. constantly For example, the server is disconnected or the host’s operating system isn’t enumerating the USB device.

  • Page 10: Move Or Detach The Toolbar

    a number of shortcuts and displays some status information. All of the functions included in the toolbar are also available in the drop-down menus located across the top of the screen. Move or detach the toolbar Do one of the following: •...

  • Page 11: About The Zoom Menu

    9. Click to pause the playback. 10. Click to make a movie (.avi file) out of a previously recorded video. 11. Click to switch between full-screen and window mode. 12. Click to go to 100% zoom or the largest zoom possible. 13.

  • Page 12: About The Video Menu

    The following are some things to note when using some of the options available in the Zoom menu: • This program doesn’t enlarge video, it only shrinks it. As such, text mode (720 x 480 or similar) won’t be enlarged to fill your screen. •...
  • Page 13 • Playback/Pause. Select the Playback/Pause function to view recorded or loop-recorded files. This option is available regardless of whether the NOTECONS02X is connected or not. To view a video file, click the Playback button or click Video > Playback. Select a folder that contains the record files made by NOTECONS02X.

  • Page 14: About The File Transfer Menu

    • Make a Movie. Select the Make a Movie option to create an .avi file from previously recorded or loop-recorded files. This option is available regardless of whether the NOTECONS02X is connected or not. To create an .avi file, click the Movie button or click Video > Make Movie. Select a folder that contains the record files made by NOTECONS02X.

  • Page 15: About The Keyboard Menu

    • View Files. Click to open the Disk Image Viewer window to view the directory tree view and file list for the currently selected directory. You can drag-and-drop files onto the file list to copy them. • To access the option to extract the entire directory to a location on your connected host computer, right-click a directory in the left pane.

  • Page 16: About The Toolbar Menu

    This setup is also recommended when you use NOTECONS02X with USB KVM switches. USB KVM products generally can’t understand the USB mouse emulation device because of its advanced use of the HID (Human Interface Device) standard.

  • Page 17: Troubleshooting

    3. To save your changes, click Save. The LEDs on the user console are flashing or the software says NOTECONS02X isn’t connected This issue may be a result of the device drivers not being installed properly.
  • Page 18 Try the following actions: • Click Keyboard > Simulate Hotplug (reset). The USB KVM switch isn’t working Try the following actions: • Instead of using a direct connection to a server, try to disable the USB mouse emulation or force Relative Mouse Motion mode. Disabling the USB mouse emulation simplifies the USB profile presented to the KVM switch, and even the most basic USB implementation should be able to understand and support the keyboard and mouse in Relative Mouse Motion mode.
  • Page 19 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
