- Page 1 ICUSB2321F ICUSB2322F Instruction Manual USB Serial Adapter 1/2-Port USB to Serial RS232 Adapter Cable with COM Retention Manual Revision:01/19/2011 For the most up-to-date information, please visit www.startech.com...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents ................1 System Requirements ................1 ICUSB2321F View ................2 ICUSB2322F View ................2 Installation ..............3 Hardware Installation ................3 Verifying Installation ................4 Pinout................4 Specifications ..............5 Technical Support ............6 Warranty Information ..........6... -
Page 4: Introduction
Introduction This 1 or 2 Port USB to Serial RS232 Adapter Cable with COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the device is disconnected and re-connected to the host computer, or if the system is rebooted. -
Page 5: Icusb2321F View

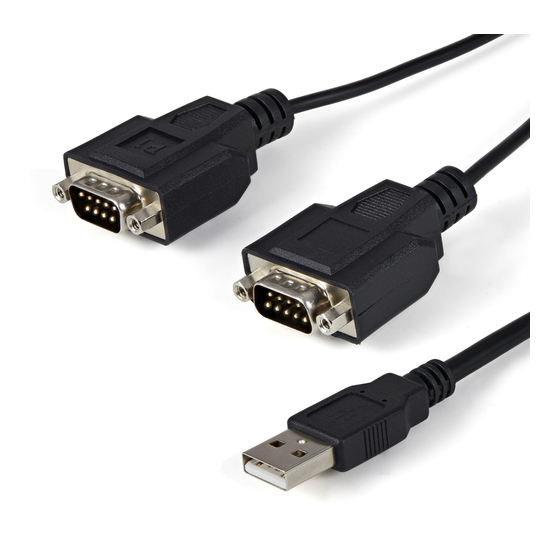

ICUSB2321F View ICUSB2322F View *actual product may vary from photos... -
Page 6: Installation
Installation Hardware Installation Windows 2000/XP/Server 2003 Plug the USB adapter into an available USB port on the computer. When the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD/DVD drive. If you are prompted to connect to Windows Update, please select the “No, not this time”... -
Page 7: Verifying Installation
Verifying Installation From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Ports (COM & LPT)” option. Additional COM port(s) should be visible. -
Page 8: Specifications
Specifications ICUSB2321F ICUSB2322F Number of Ports Host Interface USB 2.0 Chipset ID FTDI FT232R FTDI FT2232D 1 x USB type A male 1 x USB type A male Connectors 1 x 9-pin DB9 male 2 x 9-pin DB9 male LEDs... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
