USB 3.0 Dual Head Graphics Adapter -
HDMI® and DVI-I
USB32HDDVII
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/29/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32HDDVII
Summary of Contents for StarTech.com USB32HDDVII

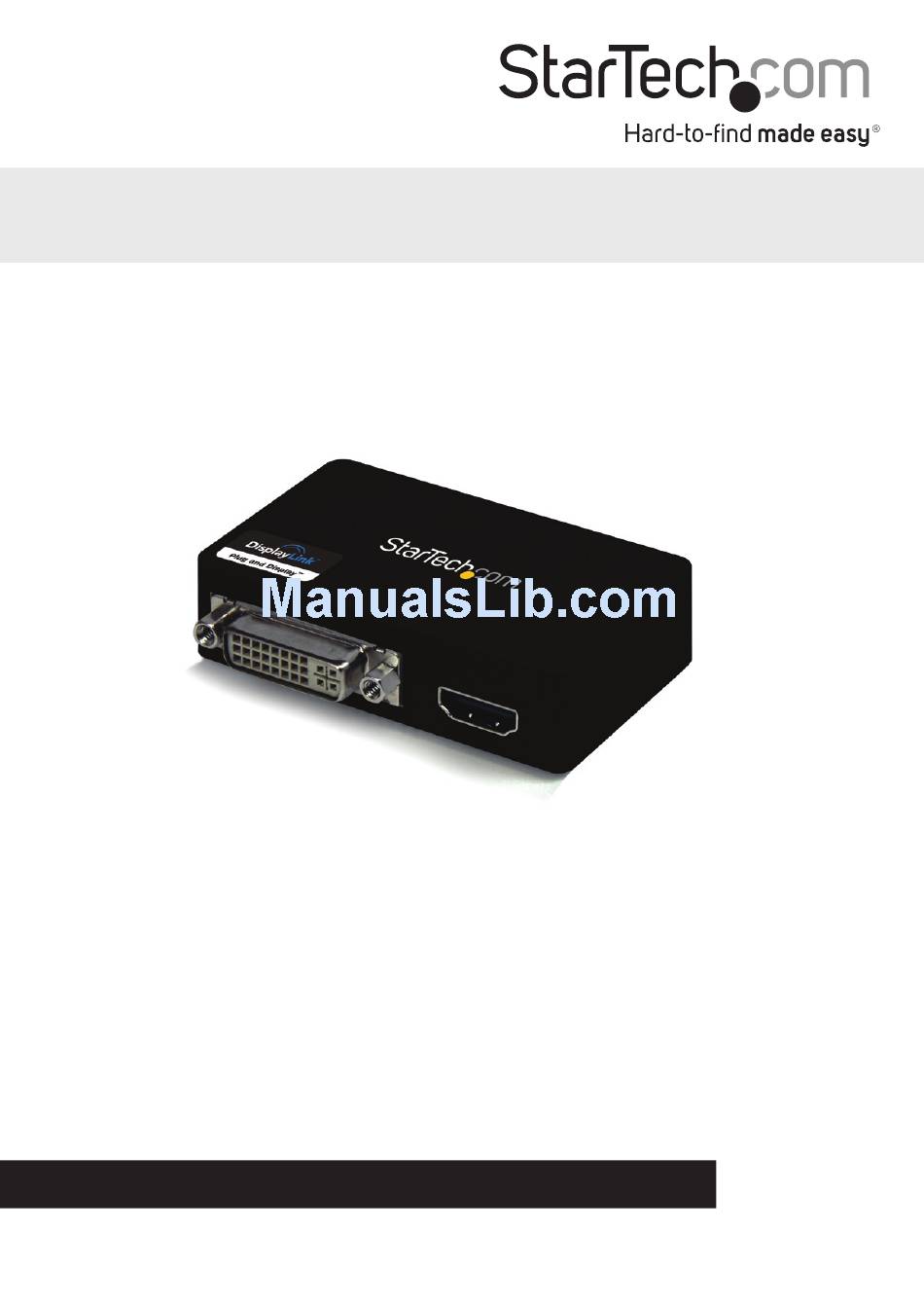

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/29/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Recommended System Requirements ....................1 Installation ....................2 Driver Installation ............................2 Hardware Installation ..........................3 Multiple USB Video Adapter Installation ..................3 Configuring the USB Video Adapter ....................4 Extend ................................5 Mirror ................................ -
Page 4: Introduction

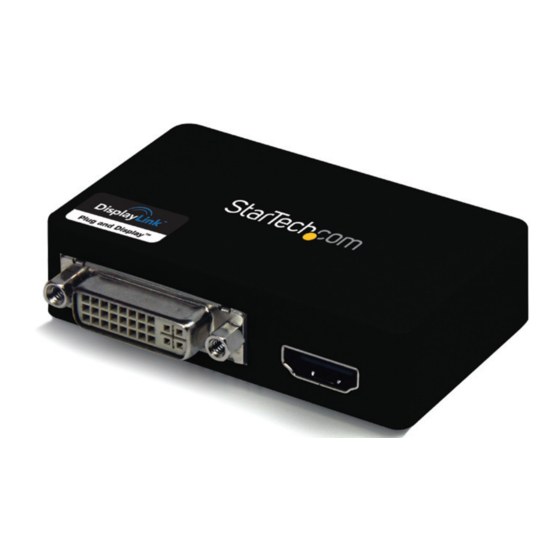

Introduction The USB32HDDVII USB 3.0 to HDMI® and DVI-I Dual Head Adapter turns an available USB 3.0 port into one DVI-I or VGA port (DVI to VGA adapter included) and one HDMI®output, with support for high-definition 1080p and 1920x1200 video and 5.1 surround sound audio (from HDMI®port only). -
Page 5: Installation
Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. -
Page 6: Hardware Installation
Hardware Installation 1. Once DisplayLink Core Software screen has disappeared Connect your USB32HDDVII device via the USB cable to your PC. 2. The system will initiate driver and software application (the DisplayLink Software Configuration screen may flash or go black during the install). -
Page 7: Configuring The Usb Video Adapter
Configuring the USB Video Adapter When devices are attached, an icon appears in the taskbar. This gives you access to the DisplayLink® manager menu. 1. From the taskbar, click the Show hidden icons arrow to show all available icons. 2. Click the DisplayLink® icon. Two options will be displayed 2.UHD-100 DP and 3.UHD-100 DP. -
Page 8: Extend
Left/Right/Above/Below the main (primary) monitor. Mirror The monitor(s) attached to the USB32HDDVII USB Graphics device display a duplication of the primary display. The resolution, color depth and refresh rate of the primary screen are replicated on the monitor connected to the USB Graphics device. -
Page 9: Specifications
USB32HDDVII in relation to the systems on board monitor. Screen Resolution This option allows you to change the resolution on the monitor connected to the USB32HDDVII device. Simply select the desired option from the list of supported resolutions displayed in the sub menu. Screen Rotation This option allows you to change orientation in which the screen is viewed. -
Page 10: Specifications (Cont'd)
800x480, 720X480 Supported Resolutions Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x870, 1152x864, 1024x768, 832x624, 800x600, 768X567, 640X480 Wide Screen Resolutions Connect a maximum of three USB32HDDVII adapters Note on a single PC - See manual for system requirements Instruction Manual... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
