- Page 1 DisplayPort Signal Booster - 4K DPBOOST *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/DPBOOST...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product diagram ..................1 Front view ..............................1 Rear view ..............................1 Introduction ....................2 Packaging contents ..........................2 System requirements ..........................2 Installation ....................3 Adjusting the signal amplification ............4 LED indicators ..................4 Specifications ..................5 Technical support ...................6 Warranty information ................6 Instruction manual... -
Page 4: Product Diagram

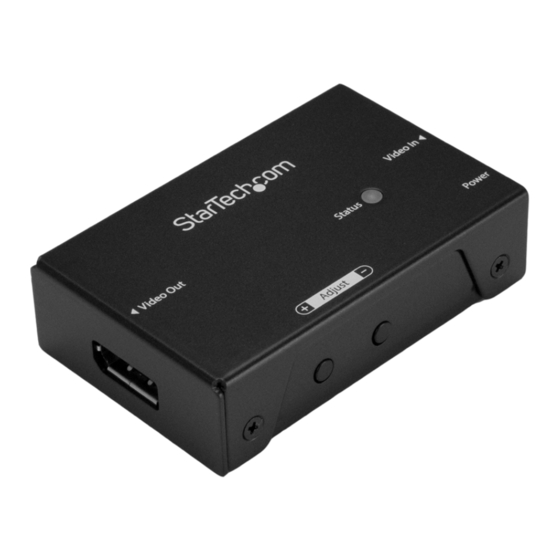

Product diagram Front View Rear view Status LED Video In port Video Out port Power port Side view + Adjust - Adjust Control Control button button Instruction manual... -
Page 5: System Requirements
Package contents • 1 x DisplayPort signal booster • 1 x power adapter • 1 x USB power cable • 4 x rubber feet System requirements • 1 x DisplayPort video source • 1 x DisplayPort cable up to 50 ft. in length, to connect from your source to the booster •... -
Page 6: Installation
Installation Important installation notes: • Maximum supported resolution varies depending on your extension distance. • The DisplayPort cable connected to your display must be shorter than or equal to the length of the cable connected to your video source. • The maximum supported video source cable length is 50 ft. (15 m). •... -
Page 7: Adjusting The Signal Amplification
Supported resolutions and cable lengths Reference the table below for supported resolutions and cable lengths. Cable length Cable length to Total cable Maximum from source display length resolution 1080p (60Hz) - 50 ft. (15 m) 15 ft. (5 m) 65 ft. (20 m) 1920 x 1080 4K (30Hz) - 26 ft. -
Page 8: Led Indicators
LED indicator The DisplayPort booster features an LED indicator that communicates the booster’s operating status. Review the chart below to determine the significance of the LED’s behavior. Behavior Significance The LED The signal booster has power, but blinks green. cannot establish a connection between video source and display. -
Page 9: Specifications
Specifications Warranty 2 years Audio specifications 7.1 surround sound Maximum distance 65 ft. (20m) (Up to 1080p) Maximum resolution 3840 x 2160 (60Hz) at up to 22 ft. (7 m) 3840 x 2160 (30Hz) at up to 42 ft. (13 m) 1020 x 1080 (60 Hz) at up to 65 ft. -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
