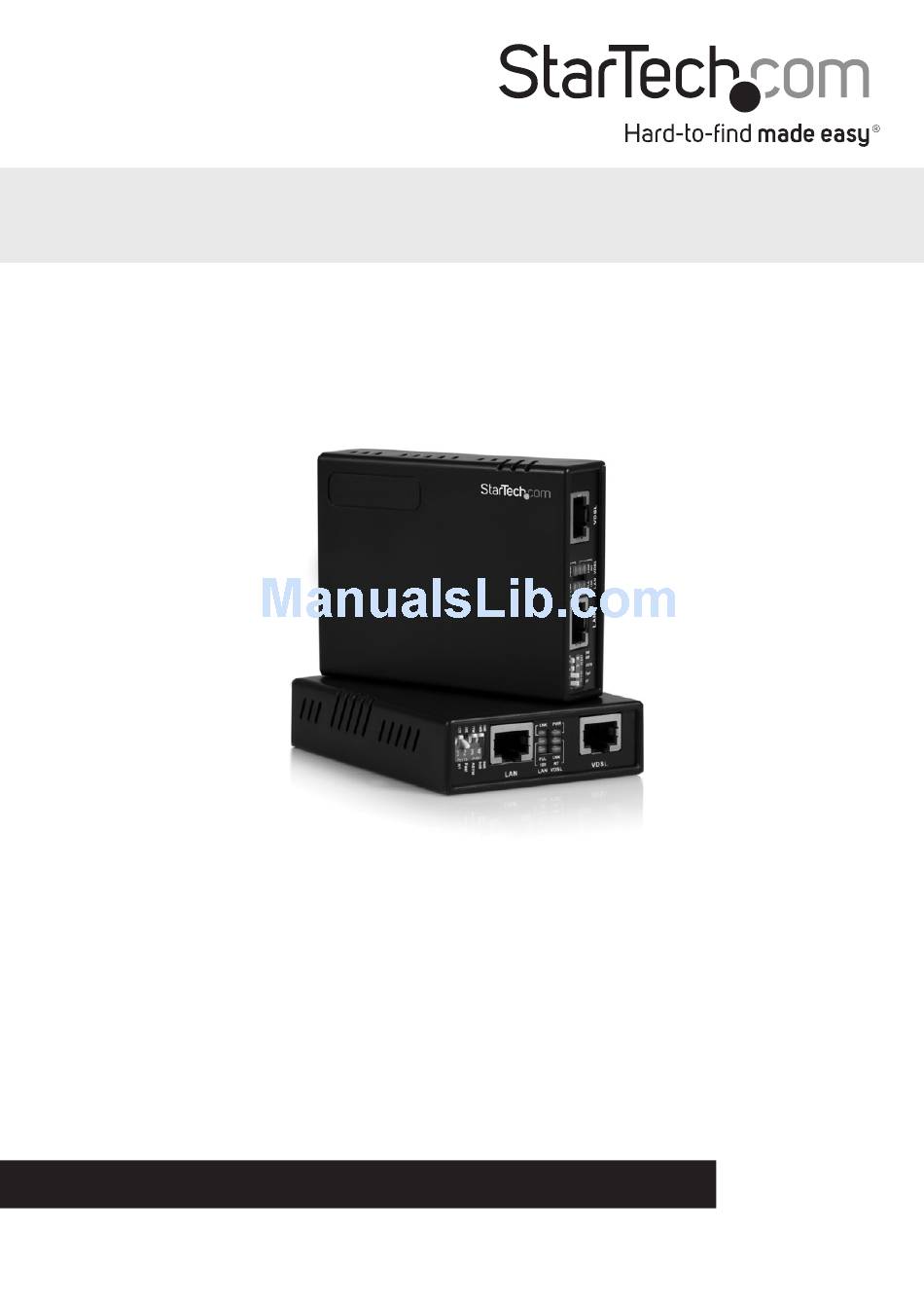

10/100 VDSL Ethernet Extender Kit over
Single Pair Wire 1km
110VDSLEXT
110VDSLEXTGB
110VDSLEXTEU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/29/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com 110VDSLEXT
Summary of Contents for StarTech.com 110VDSLEXT
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/29/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Package Contents ............................. 1 Installation ....................1 Hardware Installation ..........................1 Operation ....................2 LED Displays ..............................2 DIP Switch Settings ..........................2 Connector Architecture ......................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction
Installation Hardware Installation 1. Install one of the 110VDSLEXT / GB / EU units with all four of the DIP switches set to the upward (OFF) position. This places the unit in CO mode. 2. Install the second 110VDSLEXT / GB / EU unit with DIP switches 2 through 4 set to the upward (OFF) position and DIP switch 1 set to the downward position (ON). -
Page 5: Operation
Channel, Rate Limit, and SNR. Pin 1 - CO, CPE Switch OFF: If Pin 1 is in the OFF position, the 110VDSLEXT / GB / EU will operate in Central Office (CO) mode. ON: If Pin 1 is in the ON position, the 110VDSLEXT / GB / EU will operate in Customer Premise Equipment (CPE) mode. - Page 6 250ms of impulse noise with latency less than 6 ms ON: If Pin 2 is in the ON position, the 110VDSLEXT / GB / EU will operate in Fast mode, with direct data transmissions having less than 1ms of latency.
- Page 7 Pin 4 - General Protection OFF: If Pin 4 is in the OFF position, the 110VDSLEXT / GB / EU will operate with a SNR ratio up to 9 dB. ON: If Pin 4 is in the ON position, the 110VDSLEXT / GB / EU will operate with a SNR ratio of 6 dB.
-
Page 8: Connector Architecture
Connector Architecture Ethernet Port Pin Number Assignment (MDI-X) RX+; Receive data + RX-; Receive data - TX+; Transmit data + Not used Not used TX-; Transmit Data - Not used Not used VDSL Port Pin Number Assignment (MDI-X) Not used Not used Not used ANALOG Input/Output... -
Page 9: Specifications
Specifications 110VDSLEXT 110VDSLEXTGB 110VDSLEXTEU RJ-45 connector Complies with IEEE LAN Interface 802.3/802.3u/802.3x 10/100 Base-T Auto-Negotiation, Auto-MDI/MDI-X RJ-45 connector DMT Encoding VDSL Interface Complies with ITU-T G993.1/993.2 On-board surge protection DIP Switch 4 position LAN: ACT/LNK, 10/100 Mbps, Half/ Full Duplex... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
