StarTech.com FD121-KVM-EXTENDER Quick Start Manual

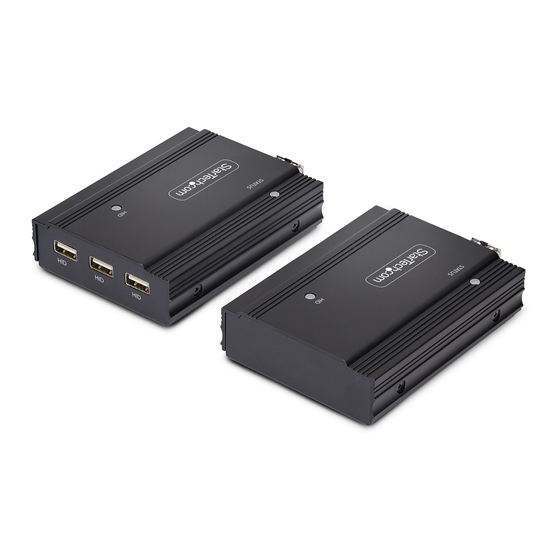

DisplayPort KVM Console Extender Over Fiber - 4K 60Hz

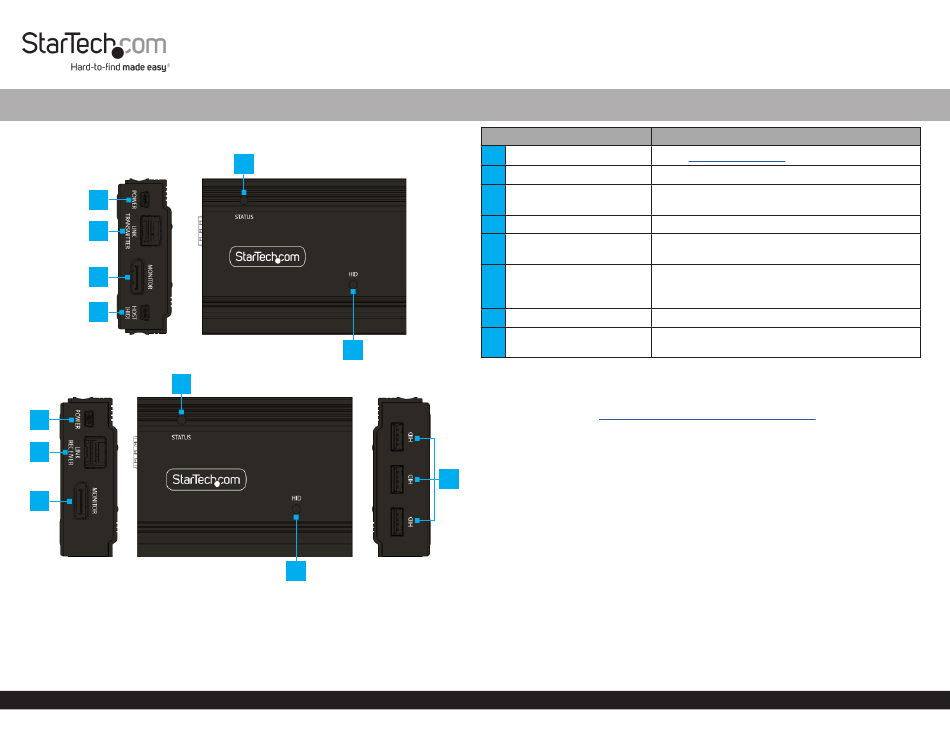

Product Diagram
FD121-KVM-EXTENDER
Transmitter
2
3
4
5
Receiver
1
2
3
7
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
6
6
* Product may vary from image
Component
1 Power / Connection LEDs
2
Power Supply Port
3
Fiber Connection Port
4 Video Input Port
5
USB Host Connector
6 USB Status LEDs
7
Video Output Port
8 USB-A HID Ports
Requirements
For the latest manuals, product information, technical specifications, and declarations of
www.StarTech.com/FD121-KVM-EXTENDER
conformance, please visit:
• Computer
• USB Enabled
• DisplayPort Output
• USB Keyboard and Mouse
8
• DisplayPort Display Device
• Duplex LC Fiber Cable (OM3)
• Multimode extends up to 300M
Package Contents
• Transmitter (Local Unit) x 1
• Receiver (Remote Unit) x 1
• 10G Multimode SFP+ Modules (Pre-Installed) x 2
• Universal Power Adapter (NA/EU/UK/ANZ) x 2
• USB-A to Mini USB-B Cables x 3
• Quick-Start Guide x 1
Quick-Start Guide
Function
• See LED Indicator Table
• Connect the included Universal Power Adapter
• Use an LC-Terminated Fiber Cable to connect the
Transmitter and Receiver
• Connect a DisplayPort Video Source
• Connect to an available USB Port on the Host
Computer or HID Port on a KVM Switch
• Orange when USB Devices are connected
• (Flashes 1~4 times to indicate connected USB
Device number)
• Connect a DisplayPort Display Device
• Connect USB Devices (e.g. Keyboard, Mouse,
Trackpad, Number Keypad, or Drawing Tablet)
Manual Revision: April 23, 2024
