Operation Manual / A130-M.. - A145-M..
9 Dismantling and fitting / 9.22 Table of tightening torques
9.22

Table of tightening torques

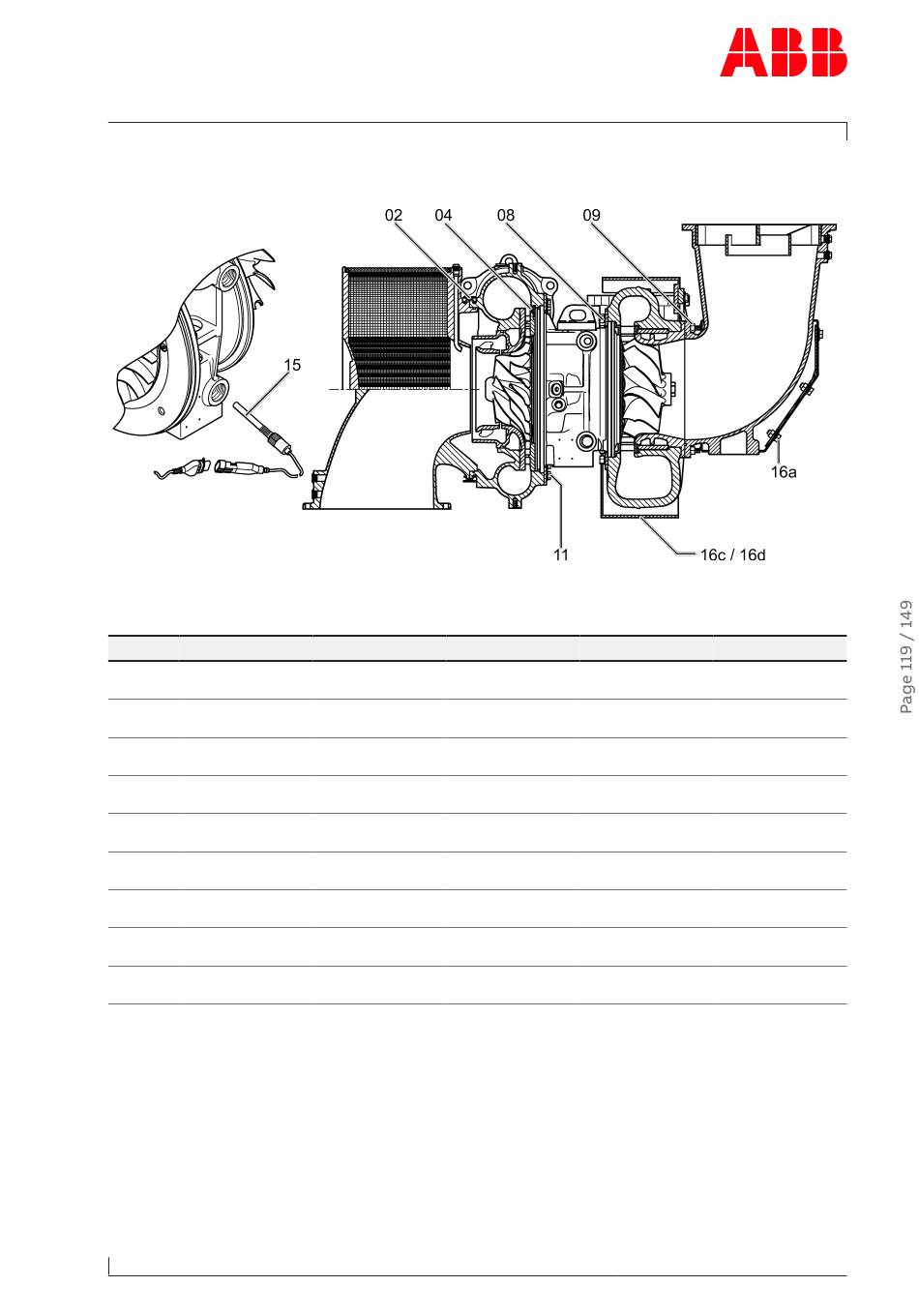

Fig. 67: Tightening torques
The following tightening torques must be observed for the specified bolted connections:
Position Part number
02 72020
04 79041
08 51007
09 51009
11 72011
15 86505
16a *) 61201
16c *) 51101
16d **) 51101
Table 47: Tightening torques
*) With the variant "insulation with integrated burst protection", this position can be ig-
nored.
16d **) applies to the burst protection mounting of A130-M and A135-M turbochargers on
railway applications
© Copyright 2022 ABB. All rights reserved.
A130 A135
M12 M12
60 Nm 60 Nm
M6 M6
8 Nm 8 Nm
M8 M10
25 Nm 45 Nm
M8 M10
20 Nm 40 Nm
M8 M10
35 Nm 70 Nm
M12 x 1.5 M12 x 1.5
15 Nm 15 Nm
M10 M10
40 Nm 40 Nm
M10 M10
40 Nm 40 Nm
M10 M10
50 Nm 50 Nm
HZTL4031_EN
A140 A145
M12 M12
60 Nm 60 Nm
M6 M6
8 Nm 8 Nm
M12 M12
75 Nm 75 Nm
M12 M12
65 Nm 65 Nm
M12 M14
105 Nm 170 Nm
M12 x 1.5 M12 x 1.5
15 Nm 15 Nm
M12 M12
65 Nm 65 Nm
M12 M12
65 Nm 85 Nm
- - - -
