Elite Screens EB100HW2-E12 Product White Paper

PRODUCT WHITE PAPER
www.elitescreens.com

Section 1: Screen Design

1.1 What is it for?

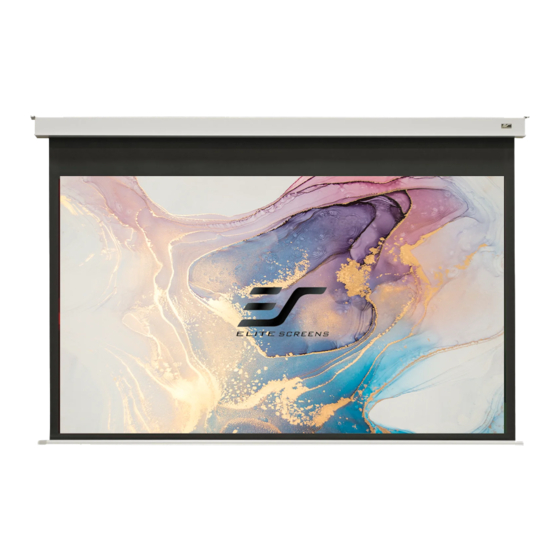

The Evanesce B is a versatile in-ceiling projection screen that conveniently disappears from view when
not in use. It can be installed from within the above-ceiling airspace or from below thanks to its
removable base panels that were originally designed for the European market.
1.2 How does it work?
Its GREENGUARD certified MaxWhite® FG (fiberglass-backed) 1.1 gain matte white material provides
superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting
tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.

Section 2: Product Features

2.1 Characteristics
Screen Material
GreenGuard® Certified MaxWhite® Fiberglass (FG) front projection material with black backing
•
1.1 Gain with a 180° wide-viewing angle for commercial and residential presentations
•
Not compatible with Ultra/Short-throw Projectors
•
Black masking borders enhance picture contrast
•
4K Ultra HD, Active 3D, and HDR Ready
•
Available in the following diagonal sizes:
•
100" and 120" in 4:3 format
•
92", 100", 110" and 120" in 16:9 format
•
Design and Installation
Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant
•
Concealed in-ceiling recessed front projection screen for multi-use rooms
•
Installation kit included for above or below ceiling
•
Control System
Internal Radio Frequency/Infrared receivers with IR, RF remotes included
•
Low voltage 3-way position wall switch
•
Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle
•
RJ45 port allows 3rd party control systems integration
•
Optional in-wall up/down switch (part# ZIW-W) - sold separately
•
Optional wireless 5-12v triggers - sold separately
•
Quality and Reliability
Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
•
Flame Retardant: Complies with NFPA 701 Standards
•
GREENGUARD® and GREENGUARD® Gold Certified
•
2-year Parts & Labor manufacturer's warranty
•
3-year warranty offered through ENR-G program (Education, Non-Profit, Religious and Government)
•
