Elite Screens Evanesce Series User Manual

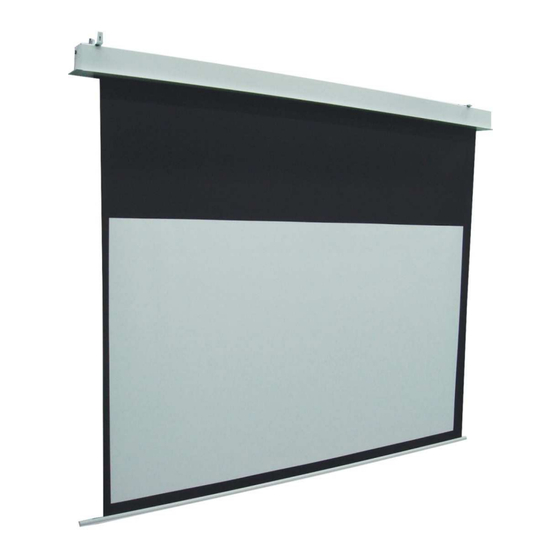

In-ceiling electric motorized front projection screen
Hide thumbs Also See for Evanesce Series:
Table of Contents

Advertisement

Quick Links

Download this manual

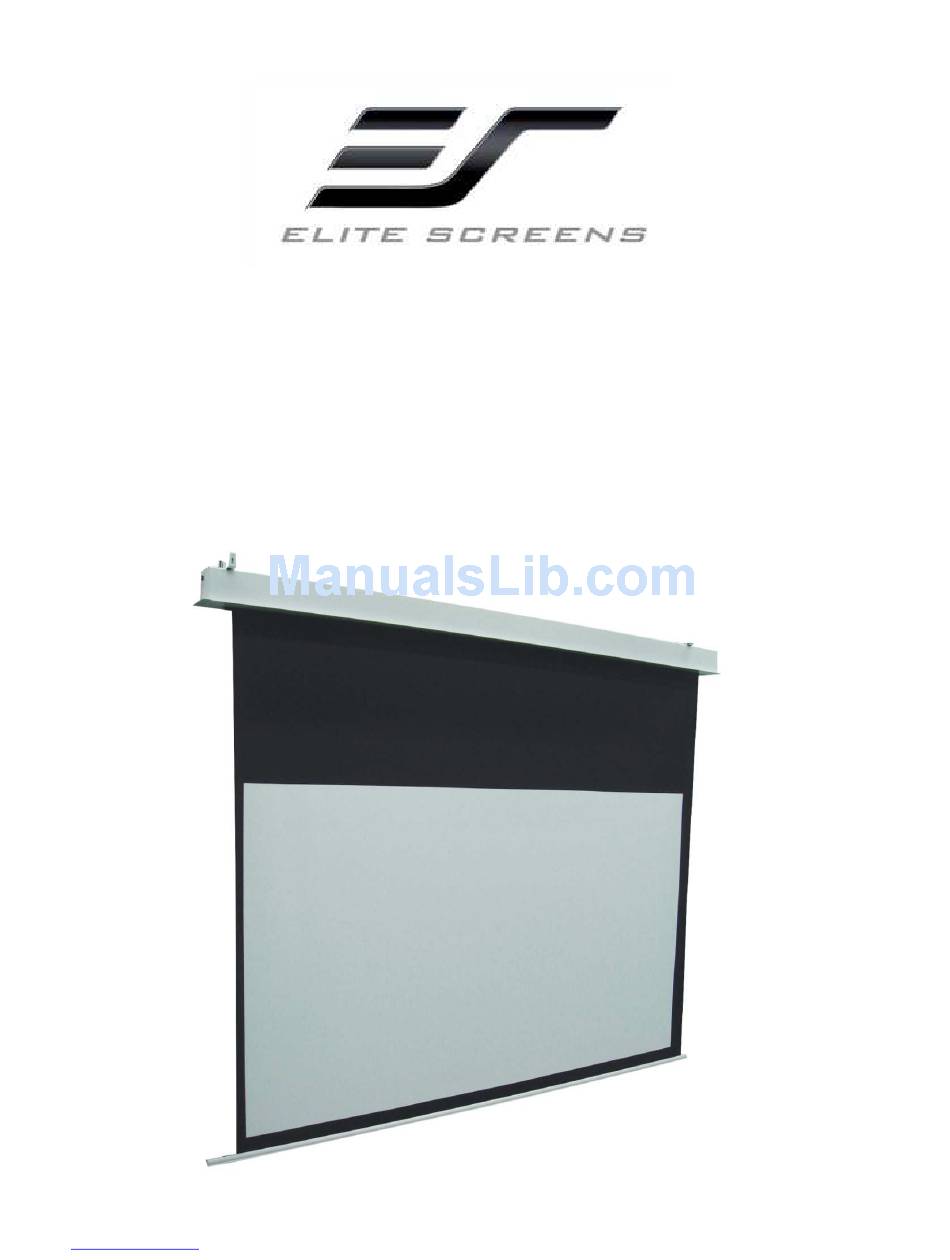

In-Ceiling Electric Motorized Front Projection Screen
Evanesce Series
User's Guide
1
Rev.122411-AS
www.elitescreens.com
info@elitescreens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evanesce Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elite Screens Evanesce Series

Summary of Contents for Elite Screens Evanesce Series

  • Page 1 In-Ceiling Electric Motorized Front Projection Screen Evanesce Series User’s Guide Rev.122411-AS www.elitescreens.com info@elitescreens.com...
  • Page 2 Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.

  • Page 3: Installation Warning

    Please consult a professional installation company for further installation and safety advice. The installer must insure that proper mounting hardware is used to provide adequate strength suitable for the installation. Elite Screens is not liable for any faulty installations. For Limit adjustment instructions, please contact our Technical Support Department at (877) 511-1211 Ext.
  • Page 4 Accessories for Evanesce Series Please make sure all accessories listed below are included before proceeding. IR Remote RF Remote 3 Way Wall Switch IR Eye Receiver AAA Batteries Red+ Green- 12V Trigger In-Wall RJ-45 Module Bubble Level Rev.122411-AS www.elitescreens.com info@elitescreens.com...
  • Page 5 Control System for Evanesce Series RJ-45 INPUT FOR 5-12V TRIGGER 1. 5-12V Trigger: The built-in 5-12V trigger input allows your screen to synchronize its drop & rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when the projector powers down.
  • Page 6 Elite Electric Motorized Screen Steps to attach Elite Screens Motorized Screen to your local wall switch 1. Attach Elite Screens ZIW-Module (in-wall switch module) to your local wall switch as shown in diagram above. 2. Attach an RJ-45 Ethernet cable (not included) to the ZIW-Module and the other end to the RJ-45 input on your Elite electric screen.

  • Page 7: Installation Instructions

    Please consult a professional installer. Elite Screens is not liable for faulty installations. Power 1. The Evanesce Series includes a 3-Prong Power Cord for use in a non-concealed power outlet. If your installation will be entirely concealed (including power outlet), Elite Screens strongly recommends a hardwire connection.
  • Page 8 Assembly 2. Insert the Hex Screw (B) through the Hanging Bracket’s (C) screw hole and secure with the Case Rail Nut (A). Slide the Hanging Bracket (C) through the railing on top of the case. 3. Place the Suspension Bar (D) on the Hanging Bracket (C) and align with the hole as shown below. Secure the Suspension Bar (D) with the Hex Screw (B), Washer (E) and the Hex Nut (F).
  • Page 9 Optional Suspension Bar J-Hook (G) 1. Attach the Suspension Bar J- Hook (G) to the bottom of the Suspension Bar (D) and secure with the Hex Screw (B), Washer (E) and Hex Nut (F). 2. Attach the Suspension Bar J-Hook (G) to the Hanging Bracket (C) as shown in figure below. Install the Suspension Bars (D) to your ceiling according to their distance.
  • Page 10 Optional Installation (parts & hardware not included) 1. Place the Hanging Bracket (C) in the desired location on the screen’s housing and measure the distance as shown below. (L = Distance) 2. Mark the location of where the screen will be installed according to the distance (L) and then secure the bolt to the ceiling.
  • Page 11 Evanesce Series Dimension Table *Measurement dimensions are for reference only and subject to change without notice. Note: Data Error may be ±1" Rev.122411-AS www.elitescreens.com info@elitescreens.com...

  • Page 12: Warranty Policy

    A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the defective unit with a replacement *(see exceptions below) after the defective unit or parts have been received.

  • Page 13: Contact Information

    Tel: +49-4030392494 Fax: +1-562-926-8433 Fax: +49-40-49219200 info@elitescreens.com info@elitescreens.eu www.elitescreens.com www.elitescreens.eu Asia: Elite Screens France S.A.S 11, Allée William Penn Elite Screens China Corp. Longxi Duimianling Industry Zone 92150 Surenes, France Longcheng Longgang District, Tel: +33-1-45064735 ShenZhen GuangDong, China Fax: +33-1-45064735 Tel: +86-(0)755-8461-7989 info.fr@elitescreens.com...

This manual is also suitable for:

Evanesce tension series
