Elite Screens Evanesce Series Adjustment Instructions

Adjustment vertical limit switch

Hide thumbs Also See for Evanesce Series:

Evanesce/Evanesce Tension Vertical Limit Switch

Caution: The screen's Top Black Masking is already set to its maximum distance. There is NO extra

black top drop in the roller. Attempting to increase the drop will damage the motor and VOID your

warranty with Elite Screens. DO NOT use these instructions to try and get more out of your

standard black masking drop. Please contact Elite Screens before making any adjustments.

A. If you over adjust the rise position, the screen will attempt to go further into the case and

cause it jitter and bounce.

B. If you over adjust the drop position, the screen will begin to reverse itself back up.

C. Reversing the adjustments should bring the screen back to normal operation

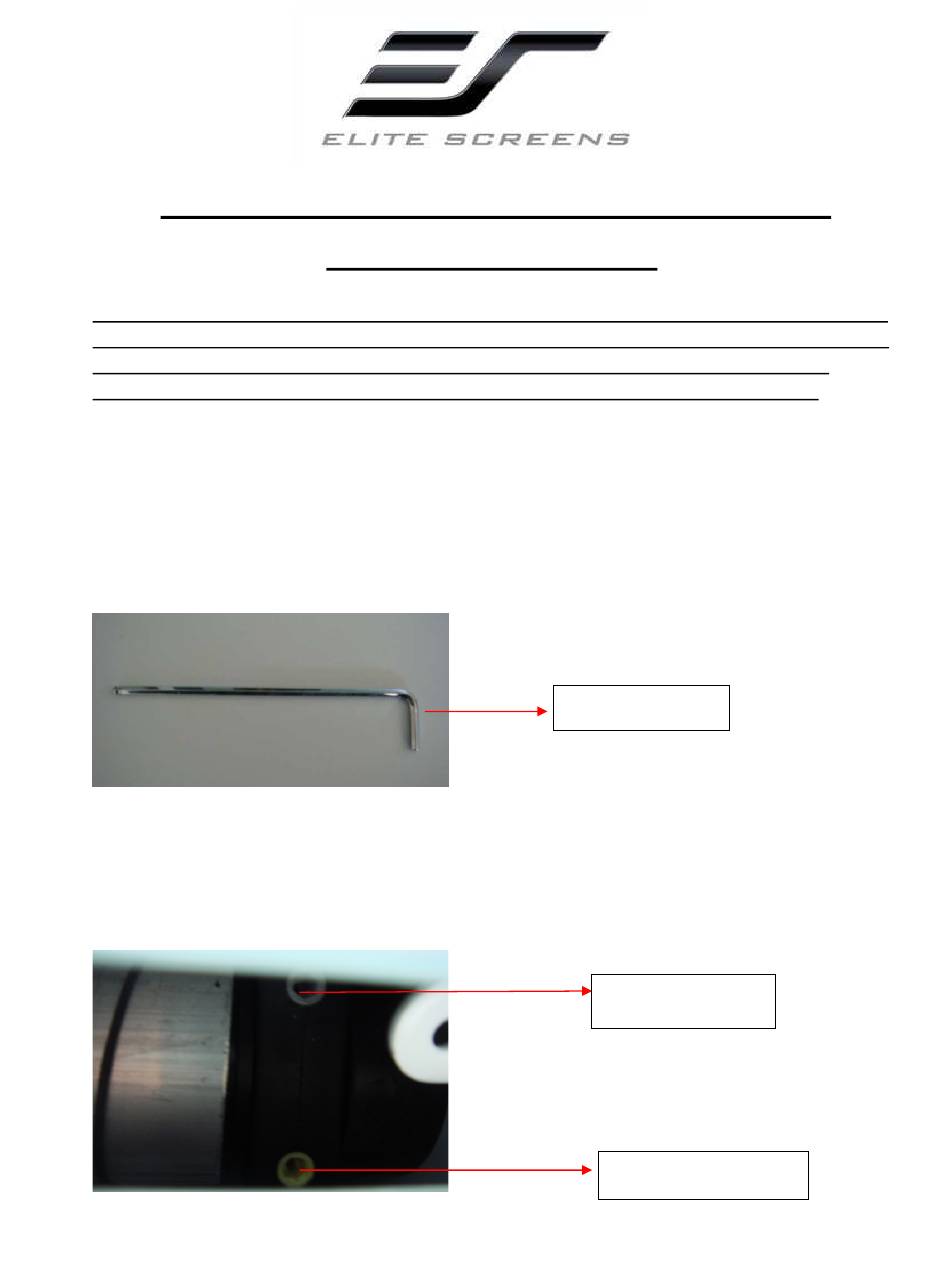

1. Allen Wrench

Fig. 1

2. Limit switch adjustment holes

Note: The limit switches can only be viewed when the screen material is completely deployed.

They are located on the right side of the screen when facing the back.

Fig. 2

Adjustment Instructions

5/32" Allen wrench

UP adjustment switch

DOWN adjustment switch

Table of Contents

Need help?

Do you have a question about the Evanesce Series and is the answer not in the manual?

Page 1 Attempting to increase the drop will damage the motor and VOID your warranty with Elite Screens. DO NOT use these instructions to try and get more out of your standard black masking drop. Please contact Elite Screens before making any adjustments.
Page 2 Note: When turning the limit switches, bear in mind that a full-circle in either direction will create a one inch adjustment. 3. How to adjust the Retract (rise) position (shown in Fig. 3 to Fig. 6) If the screen does not retract completely (as shown in Fig.
Page 3 One full turn will retract your screen by 1”. In order to see adjustment, deploy and retract the screen. (Warning: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
Page 4 Fig. 9 Note: As a rule, Elite Screens does not recommend making any unnecessary adjustments to the screen, as improper adjustment will damage the unit. Please contact Technical Support for assistance @ (877) 511-1211.
