Crestron CNLDM-6
EXTERNAL
20A BREAKER
L
120 VAC OR
277 VAC
N.BUS
(FACTORY
MODIFICATION)
OUTPUT STATUS
LEDS FOR
EACH CHANNEL
OVERRIDE SWITCH
BRINGS ALL
CHANNELS TO
FULL ON
DIM/NON-DIM
SELECT FOR EACH
CHANNEL
NETWORK I.D.
SWITCHES
NETWORK POWER
& ACTIVITY LED
THIS PRODUCT USES SCR'S FOR SWITCHING THE LOADS. ALTHOUGH THIS
PRODUCT CAN BE USED IN NON-DIM MODE TO SWICH FLUORESCENT LAMPS ON
AND OFF, CERTAIN ELECTRONIC BALLASTS ARE NOT COMPATIBLE WITH SCR
CONTROL. CHECK WITH BALLAST MANUFACTURER FOR COMPATIBILITY.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
N L L L L L L L L
E I O I O I O I O
U N A N A N A N A
T E D E D E D E D
1 2 3
4
CIRCUITS
ALL CIRCUITS MUST BE
SAME PHASE
LISTED
48D0
INDUSTRIAL
CONTROL
R R
EQUIPMENT
OUTPUTS
1 2 3 4 5 6
OVERRIDE
NORMAL
1 120 VOLTS AC
2
50-60 Hz 1-PHASE
NON
3
DIM
20 AMPS/CIRCUIT
DIM 4
USE 60 C COPPER
5
6
CONDUCTORS ONLY
HIGH
I.D.
CODE
LOW
ACTIVITY
NET POWER
24 Y Z G
NET
CRESTRON

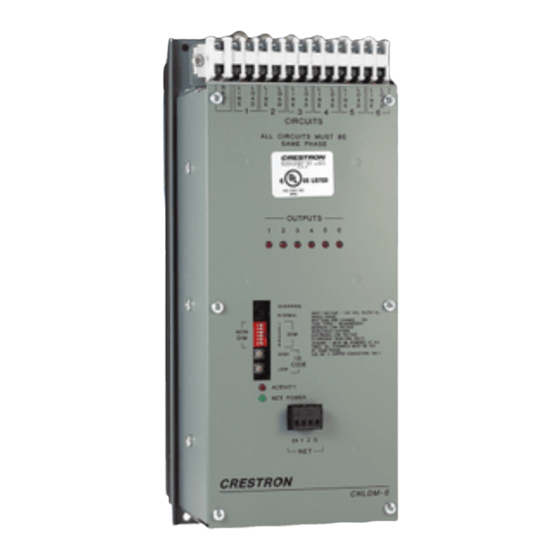

CRESLITE DIMMER MODULE
6-Channel Dimmer Module
N
L DIM
L L L L
I O I O
TIGHTENING TORQUE
N A N A
E D E D
10-12 IN-LB
5 6
REFER TO NETWORK
INTERCONNECT
DRAWING
DOC. 5411 FOR
WIRING INFORMATION
CNLDM-6
Specifications subject to change without notice.
TO LIGHTS
DOC. 5367
01.04
