Crestron CNLFDB-4
CRESNET COLORS:
24: RED
Y:
WHITE
Z:
BLUE
G:
BLACK
ALL CIRCUITS FEEDING THE CNLFDB-4 MUST BE ON THE SAME
A.C. PHASE.
FOR PROPER OPERATION, CIRCUIT #1 MUST RECEIVE POWER
AND NEUTRAL (ON L-IN AND NEUT TERMINALS)
PROVIDE SEPARATE NEUTRAL FOR EACH CIRCUIT.
This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
CRESTRON
MODEL: CNLFDB-4
ID
NET
CODE
24 + - G
HI
LO
TO CRESTRON CONTROL PROCESSOR.
REFER TO LATEST NETWORK
INTERCONNECT DRAWING (DOC. 5411).

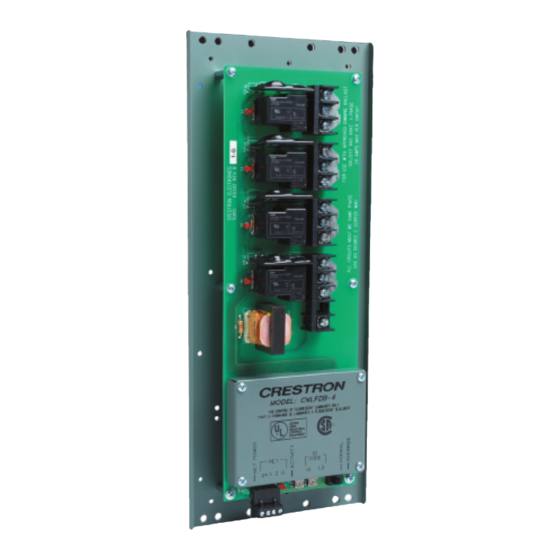

Four Channel Fluorescent Dimmer Module
OUTPUT CIRCUITS: 4
OUTPUT RATING: 16 AMP PER CIRCUIT
(REFER TO DIAGRAM FOR SUPPORTED LOAD TYPES)
INPUT/OUTPUT:
CNLFDB-4: 120 VAC, 60 Hz, SINGLE PHASE
CNLFDB-4-277: 277 VAC, 60 Hz, SINGLE PHASE
Hi-lume
®
"FDB" TYPE or
Eco-10™
"ECO" TYPE
BALLAST
NEUTRAL
CIRCUIT
BREAKER
(E103692)
Specifications subject to change without notice.
Hi-lume
®
"FDB" TYPE or
Eco-10™
"ECO" TYPE
BALLAST
DIMMED
SWITCHED
NEUTRAL
DOC. 5456A
www.crestron.com
(2009251)
07.06
