Summary of Contents for HOMCOM 824-023V70

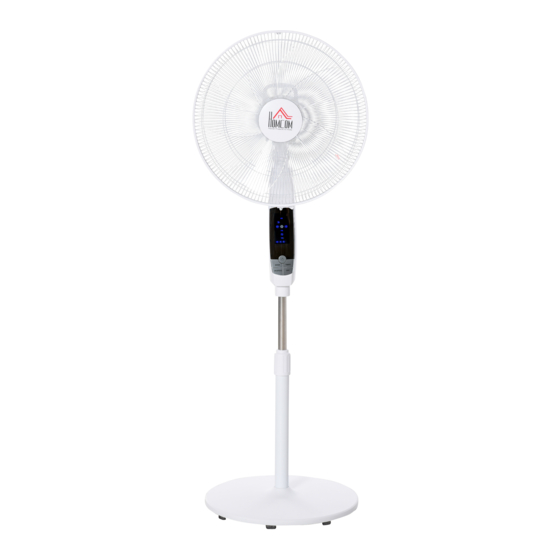

- Page 1 INcjh010V01_UK 824-023V70 220-240V~,50HZ 824-023V70 READ AND SAVE THIS INSTRUCTION FOR FUTURE USE ASSEMBLY INSTRUCTION...
- Page 2 IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should always be observed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING: To reduce the risk of fire, electrical shock, or injury to person: 1. This fan is for household use only. 2.
- Page 3 15. Do not place the fan directly below a power outlet or you risk the cord being sucked in. 16.When the fan is oscillating do not manually turn the fan to avoid damage. 17. Always turn off the power supply before unplugging the power cord from the electrical outlet to prevent a short circuit, fire or electric shock.
- Page 4 Structure and parts 1. Front grill 2. Blade fasten nut 3. Blade 4. Grill fasten nut 5. Back grill 6. Dam-board 7. Motor cover 8. Back control box 9. Control panel 10. Bolt 11. Power cable 12. Adjustable tube 13. Fixing tube clamp 14.
- Page 5 Do operate the fan only in upright position; any other position could create a hazardous situation. Assemble the foundation and other parts of the appliance in the following sequence: a). Unpack the fan and remove all parts from the package b).
- Page 6 1. Before using the fan, make sure that it is on a flat and stable surface. Damage may occur if the fan is placed on an incline or decline. 2. Set all the switches to the “OFF” position, and then insert the plug directly into a standard AC socket-outlet.
- Page 7 5. Press “LAP” button on the remote control, the indicate will goes off, press “LAP” button again, the indicate will light up. 6. Remove the plug from the socket-outlet to completely shut the fan off. Cleaning / Maintenance Instructions To safely take care of your fan, please remember to follow these instructions below: 1.
- Page 8 FAN Storage When storing your fan in the off-season, it is important to keep it in a safe dry location. It is important to protect the fan head from any dust. We strongly recommend using the original box, when storing the fan away. Waste disposal The symbol indicates that this product is not to be disposed of...
