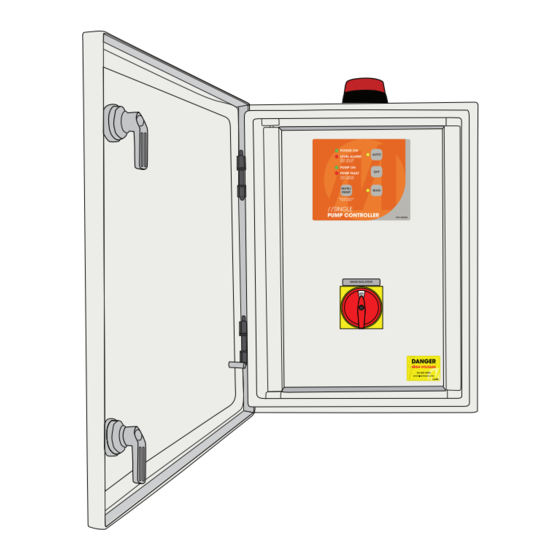

- Page 1 OP ERATI ON MANUAL S in g le P um p Co ntro ll e r I nsta llati on a nd O perating Ins tr ucti ons M OD EL: F PC- 15007-INT MAIN ISOLATOR DOC: FPC-15007-INT VER 1.0...
- Page 2 Your Single Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
-
Page 3: Installation
MAINS POWER SUPPLY STAND BY BRIDGING HIGH LEVEL WIRE TO INSTALLATION STOP REMAIN IN START LEVEL LOW LEVEL PUMP 415Vac 3 FLOAT SWITCH SYSTEM MOUNTING Input 1 Input 2 Input 3 Input 4 COMMON E A1 A2 E P1 P2 T1 T2 FRONT SIDE VIEW... -
Page 4: Operation
OPERA TIO N This controller can perform control functions for most Single Pump pumping applications. It is more than likely that the control parameters have already been set up for your particular application, however, hereunder you will find details of the setup and configuration options. There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode”... - Page 5 Anti-Seize Timer With DIP Switch 4 set to “On”, the Anti-seize timer will automatically run the pumps for 6 seconds, every 7 days. This pump operation will completely override all inputs including the low level (if enabled). This feature will only run pumps that are set in Auto.
-
Page 6: Circuit Diagram
C IRCUIT D IAGRAM 415 Vac Supply MSW1 Main Isolator TOL1 415VAC Pump Contactor 3P Thermal Overload Circuit Breaker 2A +24 Vdc 24Vdc Power Supply -24 Vdc 240V 240N 12 Vac Transformer 12Vac 0Vac Contactor 1 Contactor 18A 240Vac TOL 1 Thermals NC Contact Strobe... - Page 7 Manual Pumping Mode FLASHING A prime loss fault has occurred. DISTRIBUTED BY: INSTALLATION DATE: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au MATelec reserves the right to alter technical specifications without notice.
