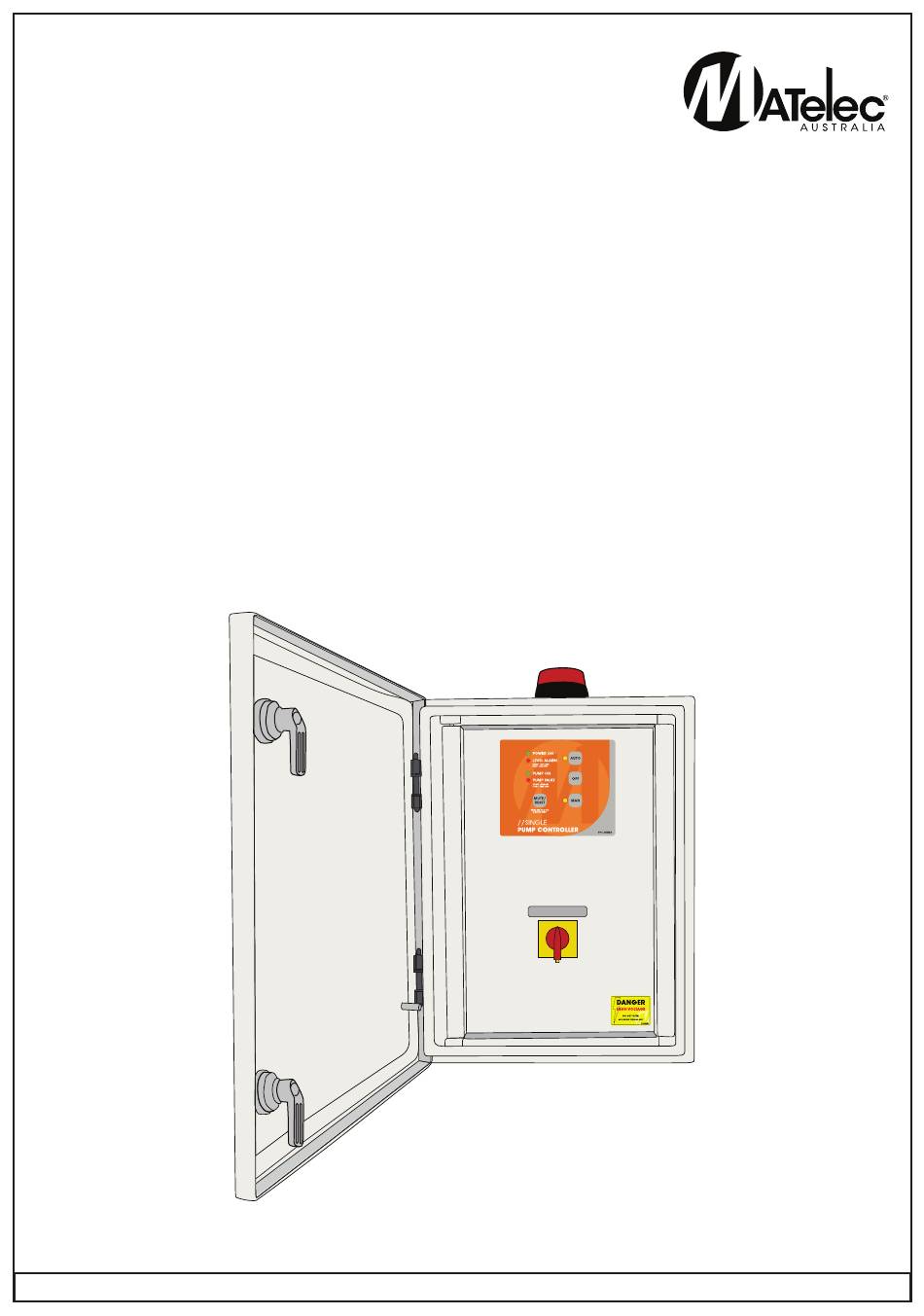

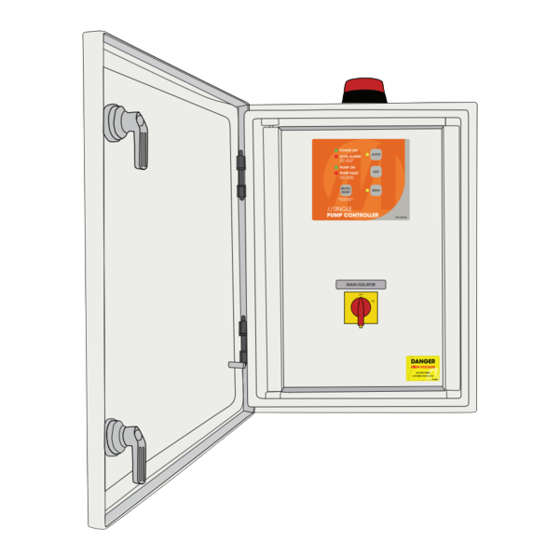

- Page 1 OP ERATI ON MANUAL S in g le P um p Co ntro ll e r I nsta llati on a nd O perating Ins tr ucti ons M OD EL: F PC- 15207 MAIN ISOLATOR DOC: FPC-15207 VER 1.0...
- Page 2 Your Single Pump Controller reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished MATelec Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’...
- Page 3 415Vac VOLTAGE FREE MAINS POWER SUPPLY BMS OUTPUTS STANDBY INSTALLATION BRIDGING HIGH WIRE TO LEVEL STOP/ REMAIN IN START LEVEL LOW LEVEL PUMP PUMP 3 FLOAT SWITCH SYSTEM MOUNTING FRONT SIDE VIEW Input 1 Input 2 Input 3 Input 4 1.
- Page 4 OPERA TIO N This controller can perform control functions for most Single Pump pumping applications. It is more than likely that the control parameters have already been set up for your particular application, however, hereunder you will find details of the setup and configuration options. There are 6 DIP switches located on the lower side of the control module, which allows for selecting “mode”...
- Page 5 The basic logic on which a High or Low Level Alarm is determined, is set out in the Table below: Input 1 Input 2 Input 3 Input 4 Pump Alarm State Low Level Pump Stop Pump Start High Level Closed Open/Closed Open Open...
- Page 6 In pressure pump mode some of the optional features are disabled, including maximum run alternation, anti-seize and maximum idle timers In order to activate current loop mode the enclosure must be opened and jumper J10 moved to the “current loop enabled”...
- Page 7 CIRCU IT DIA GRAM Supply A1 A2 MSW1 MSW1 Main Isolator Main Isolator 25A 3P 25A 3P TOL1 TOL1 415VAC 415VAC Pump 3P Pump 3P Thermal Thermal Contactor 3P Contactor 3P Overload Overload Circuit Circuit Breaker 2A Breaker 2A 240V 240V 240N 240N...
- Page 8 Manual Pumping Mode FLASHING A prime loss fault has occurred. DISTRIBUTED BY: INSTALLATION DATE: SERIAL NUMBER: MANUFACTURED BY MATelec AUSTRALIA EMAIL: info@matelecaustralia.com.au MATelec reserves the right to alter technical specifications without notice.
