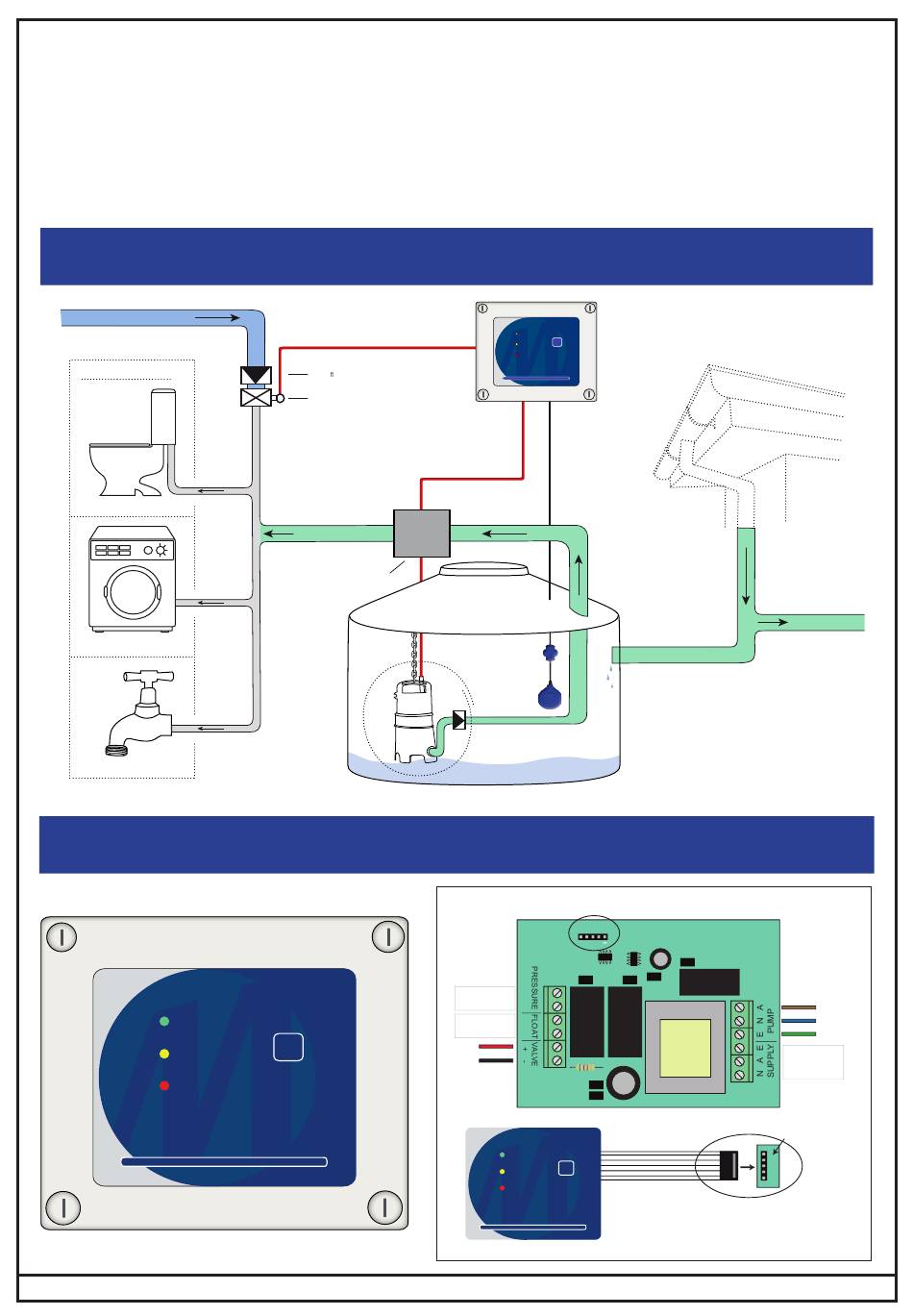

Matelec FPC-12720 Quick Start Manual

R AIN/MAINS
WATER CONTROLLE R
FPC-12720
'OEM' VERSION
SCHEMATIC
M A I N S W A T E R
A P P L I C A T I O N S
T O I L E T
L A U N D R Y
G A R D E N
OPERATIONAL OVERVIEW
RAIN WATER
MAINS WATER
SYSTEM FAULT
Rain / Mains Water Controller
DANGER - HIGH VOLTAGE
DO NOT REMOVE COVER. AUTHORIZED PERSONS ONLY
DOC: RMWC 12720
B a c k o w P r e v e n t i o n V a l v e
P u l s e L a t c h i n g S o l e n o i d V a l v e
R A I N W A T E R
P r e s s u r e S w i t c h / C o n t r o l l e r
SYSTEM
TEST
RAIN WATER
SYSTEM
TEST
MAINS WATER
SYSTEM FAULT
Rain / Mains Water Controller
DANGER - HIGH VOLTAGE DO NOT REMOVE COVER. AUTHORIZED PERSONS ONLY
FIGURE 1 - PCB LAYOUT
KEYPAD
BRIDGE IF
NOT REQUIRED
ALREADY
CONNECTED
RAIN WATER
SYSTEM
MAINS WATER TEST
SYSTEM FAULT
Rain / Mains Water Controller
DANGER - HIGH VOLTAGE
DO NOT REMOVE COVER. AUTHORIZED PERSONS ONLY
O V E R F L O W
R A I N W A T E R
RAIN/MAINS WATER
CONTROLLER
ALREADY
CONNECTED
NOTE: '1'
Ribbon Cable TOP
1
BOTTOM
Top must correspond with '1'
on connector as shown here
REVISED: 270612
