13" X 40" GEARHEAD LATHE w/DRO
The Model SB1050F Lathe is the same machine as the Model SB1050 except for the following:
•
Added a 2-Axis Fagor Digital Readout (DRO).
Except for the differences noted in this insert, all other content in the Model SB1050 Owner's Manual
applies to this machine. Before operating your new lathe, you MUST read and understand this insert,
the entire Model SB1050 Owner's Manual, and the Fagor DRO Owner's Manual to reduce the risk of
injury when using this machine. Keep this insert for later reference.
If you have any further questions about this manual insert or the differences between the Model
SB1050F and the Model SB1050, contact our Technical Support at (360) 734-1540 or email
sales@southbendlathe.com.

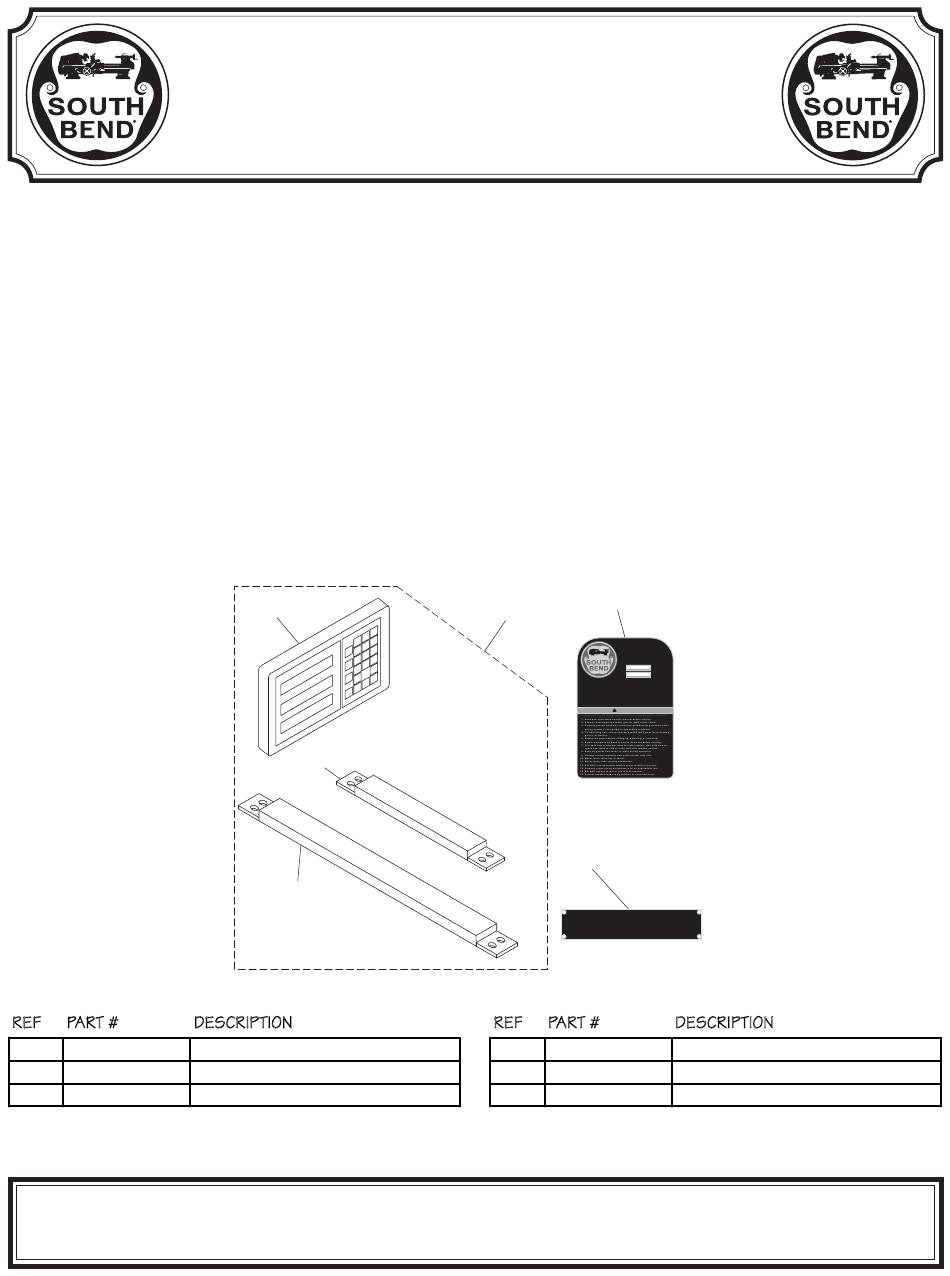

New & Changed Parts
REF
PART #
1570
PSB1050F1570
1570-1 PSB1050F1570-1 DRO DISPLAY FAGOR 20-iT
1570-2 PSB1050F1570-2 DRO X-AXIS SCALE FAGOR MKT-102
WARNING: No portion of this manual may be reproduced without written approval.
MODEL SB1050F HEAVY-13
PHONE: (360) 734-1540 •
1570-1
1570-3
1570-2
DESCRIPTION
DRO ASSEMBLY FAGOR 2-AXIS
Copyright © December, 2013 by South Bend Lathe Co.
#TS16217 Printed in Taiwan
Manual Insert
www.southbendlathe.com
1570
REF
PART #
1570-3 PSB1050F1570-3 DRO Y-AXIS SCALE FAGOR MKT-27
1615
PSB1050F1615
1620
PSB1050F1620
1615
MODEL SB1050F
HEAVY 13
13" x 40"
®
GEARHEAD LATHE w/DRO
®
Serial No.
MFG Date
Motor: 3 HP, 220V, 1-Ph, 60 Hz
Compound Travel: 4"
Full-Load Current Rating: 19.45A
Spindle Nose: D1-5 Camlock
Swing Over Bed: 13.38"
Spindle Bore: 1.57"
Distance Between Centers: 40"
Spindle Taper: MT#5
Swing Over Cross Slide: 8.26"
Tailstock Taper: MT#3
Swing Over Gap: 20"
Weight: 2227 lbs.
Cross Slide Travel: 7"
Made in Taiwan to South Bend Specifications
!
WARNING!
1620
SB1050F
DESCRIPTION
MACHINE ID LABEL
MODEL NUMBER BRASS PLATE
V1.12.13
