South bend SB1059F Owner's Manual
  1. Manuals
  2. Brands
  3. South bend Manuals
  4. Lathe
  5. SB1059F
  6. Owner's manual

South bend SB1059F Owner's Manual

Evs toolroom lathe w/dro
Hide thumbs
Table of Contents

Advertisement

Quick Links

Hundreds of Thousands of Lathes Sold With a Tradition of
© July, 2011 by South Bend Lathe Co.

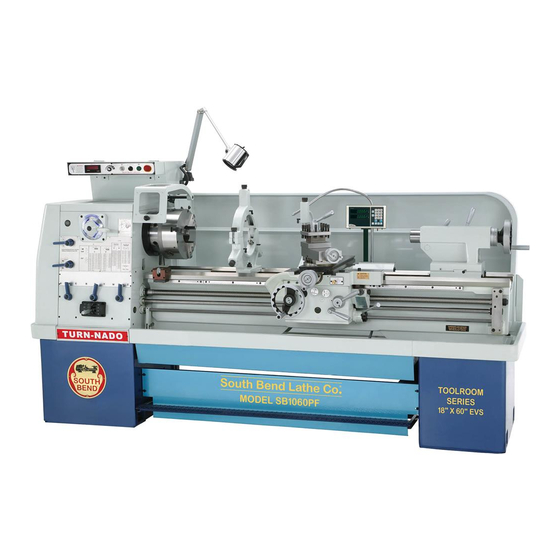

EVS TOOLROOM LATHE w/DRO
MODEL SB1059F 18" X 40"
MODEL SB1060PF 18" X 60"
MODEL SB1061PF 18" X 80"
OWNER'S MANUAL
MODEL SB1042PF 21" X 60"
MODEL SB1043PF 21" X 80"
MODEL SB1045PF 21" X 120"
Q
uality Since 1906!
For Machines Mfg. Since 3/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB1059F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for South bend SB1059F

Summary of Contents for South bend SB1059F

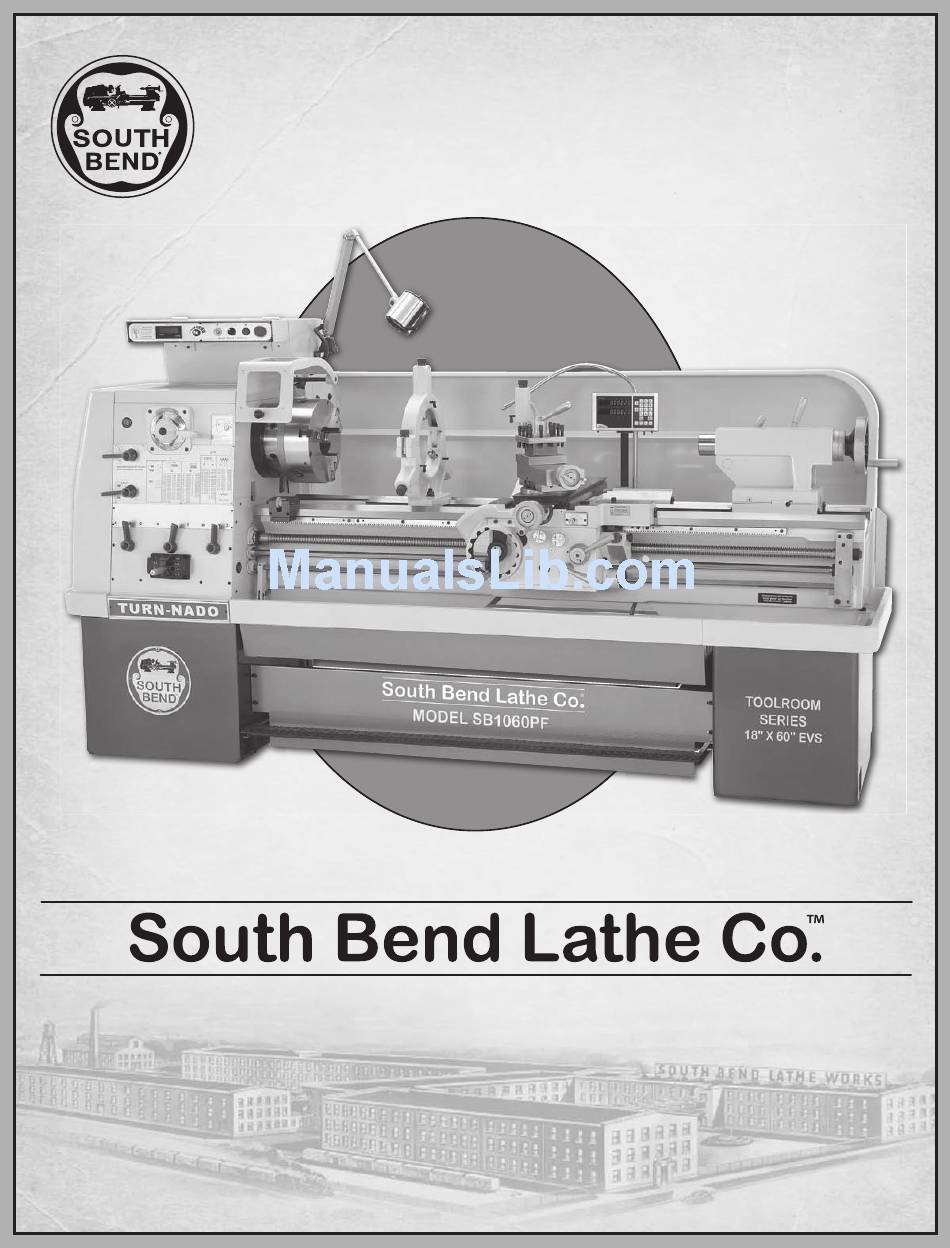

  • Page 1 EVS TOOLROOM LATHE w/DRO MODEL SB1059F 18" X 40" MODEL SB1042PF 21" X 60" MODEL SB1060PF 18" X 60" MODEL SB1043PF 21" X 80" MODEL SB1061PF 18" X 80" MODEL SB1045PF 21" X 120" OWNER'S MANUAL Hundreds of Thousands of Lathes Sold With a Tradition of uality Since 1906! ©...
