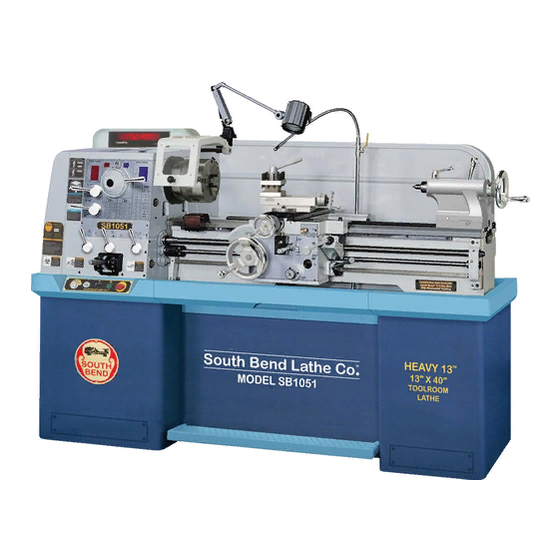

Heavy 13 13" x 40" EVS Lathe with Fagor
Product Dimensions
Weight........................................................................................................................................................... 2442 lbs.
Width (side-to-side) x Depth (front-to-back) x Height......................................................... 83-1/2 x 38-1/2 x 59 in.
Footprint (Length x Width)........................................................................................................... 80-3/4 x 19-1/2 in.
Shipping Dimensions
Type.................................................................................................................................................. Wood Slat Crate
Content.......................................................................................................................................................... Machine
Weight........................................................................................................................................................... 2640 lbs.
Length x Width x Height................................................................................................................... 45 x 90 x 75 in.
Electrical
Power Requirement................................................................................................................. 220V, 3-Phase, 60 Hz
Full-Load Current Rating................................................................................................................................. 17.2A
Minimum Circuit Size.......................................................................................................................................... 20A
Connection Type..................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. No
Recommended Power Cord............................................................................. "S"-Type, 4-Wire, 12 AWG, 300 VAC
Plug Included.......................................................................................................................................................... No
Recommended Plug Type................................................................................................................................... 15-20
Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection
Inverter (VFD) Type.................................................................................................................... Yaskawa G7A25P5
Inverter (VFD) Size......................................................................................................................................... 7.5 HP
Recommended Phase Converter...................................................................................................................... G7978
Motors
Main
Horsepower............................................................................................................................................... 5 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................ 15.5A
Speed.......................................................................................................................................... 0 – 4500 RPM
Type........................................................................................................................................ TEFC Induction
Power Transfer ............................................................................................................................ V-Belt Drive
Bearings................................................................................................ Shielded & Permanently Lubricated
Centrifugal Switch/Contacts Type............................................................................................................. N/A
Model SB1051F
Model SB1051F
DRO
Page 1 of 4
