16 SPEED GEARHEAD LATHE

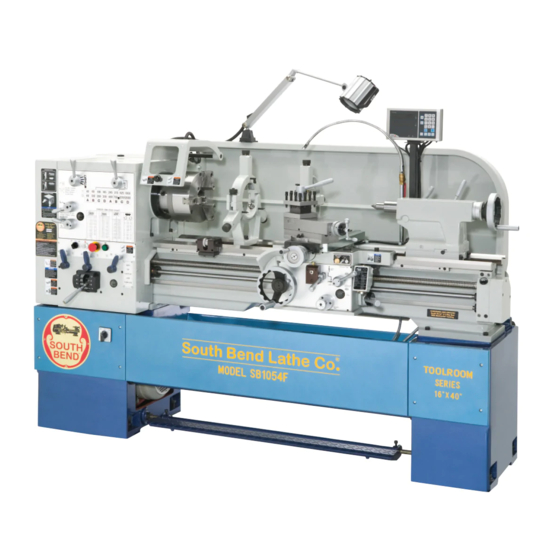

MODEL SB1053 14" X 40"
MODEL SB1054F 16" X 40" w/DRO
MODEL SB1055F 16" X 60" w/DRO
OWNER'S MANUAL
Q
Hundreds of Thousands of Lathes Sold With a Tradition of
uality Since 1906!
© June, 2011 by South Bend Lathe Co.
For Machines Mfg. Since 3/11
