South bend SB1051 Owner's Manual

13" x 40" heavy 13 evs lathe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

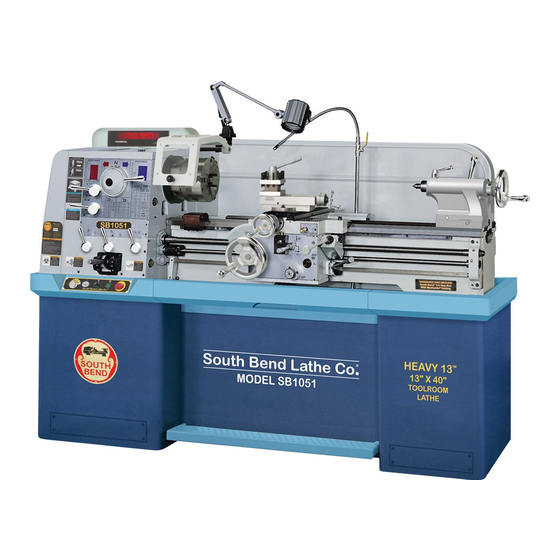

13" X 40" HEAVY 13
EVS LATHE
MODEL SB1051

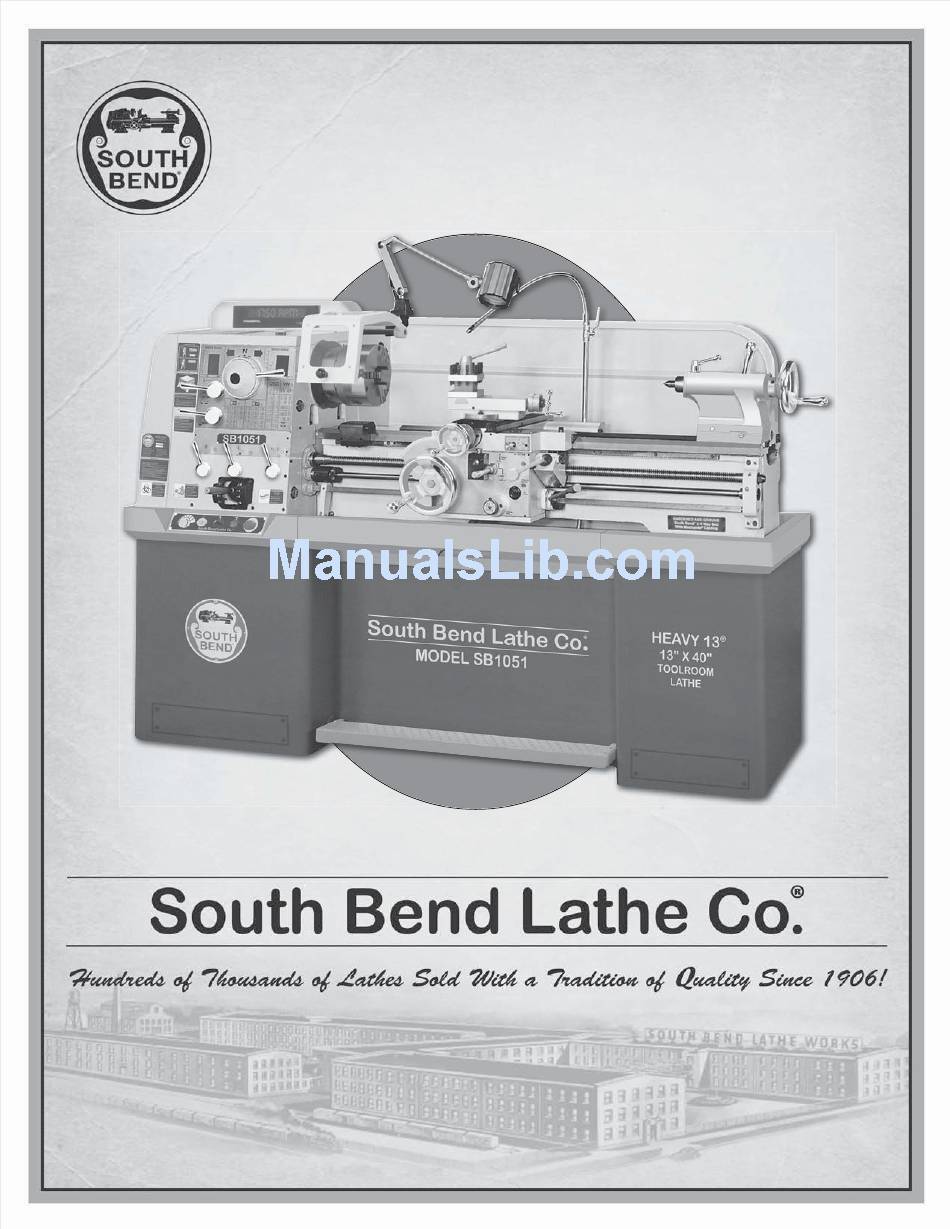

OWNER'S MANUAL
© March, 2012 by South Bend Lathe Co., Revised December, 2012 (TS)
For Machines Mfg. Since 5/11
