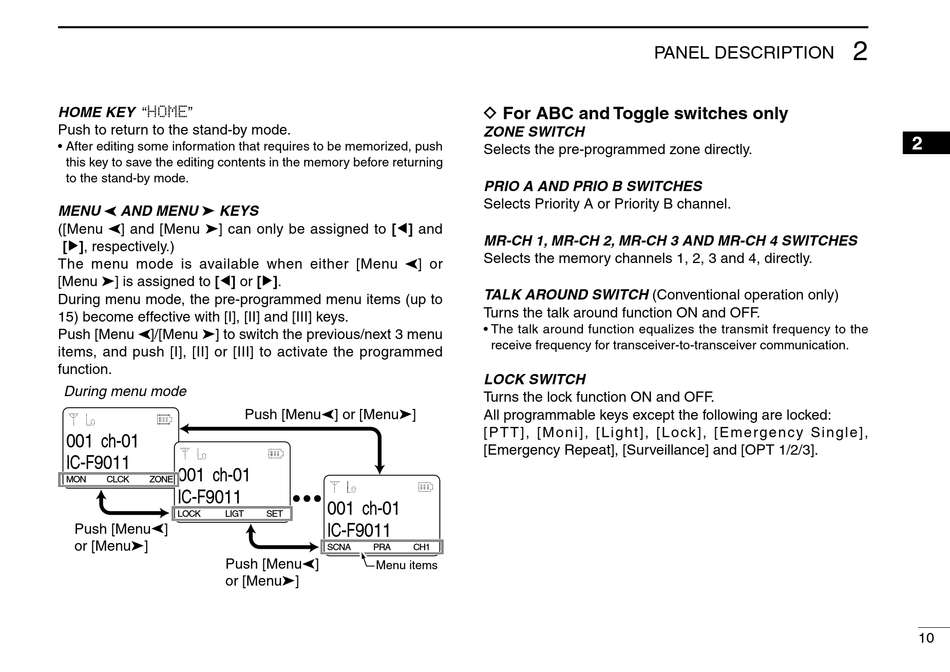

Icom IC-F9011S Instruction Manual page 15

HOME KEY "HOME"
Push to return to the stand-by mode.
• After editing some information that requires to be memorized, push
this key to save the editing contents in the memory before returning
to the stand-by mode.
MENU AND MENU ➤ KEYS
] and [Menu ➤] can only be assigned to [Ω] and
( [Menu
[≈], respectively.)
The menu mode is available when either [Menu
[Menu ➤] is assigned to [Ω] or [≈].
During menu mode, the pre-programmed menu items (up to
15) become effective with [I], [II] and [III] keys.
Push [Menu ]/[Menu ➤] to switch the previous/next 3 menu
items, and push [I], [II] or [III] to activate the programmed
function.
During menu mode
001 ch-01
IC-F9011
001 ch-01
MON CLCK ZONE
IC-F9011
LOCK LIGT
Push [Menu ]
or [Menu�]
Push [Menu ]
or [Menu�]
] or
Push [Menu ] or [Menu�]
001 ch-01
SET
IC-F9011
SCNA PRA CH1
Menu items
PANEL DESCRIPTION
D For ABC and Toggle switches only
ZONE SWITCH
Selects the pre-programmed zone directly.
PRIO A AND PRIO B SWITCHES
Selects Priority A or Priority B channel.
MR-CH 1, MR-CH 2, MR-CH 3 AND MR-CH 4 SWITCHES
Selects the memory channels 1, 2, 3 and 4, directly.
TALK AROUND SWITCH (Conventional operation only)
Turns the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
LOCK SWITCH
Turns the lock function ON and OFF.
All programmable keys except the following are locked:
[PTT], [Moni], [Light], [Lock], [Emergency Single],
[Emergency Repeat], [Surveillance] and [OPT 1/2/3].
